Associated Electrics RC10 B44.2 - Body, Wheels, Tires Installation (cont.); Body, Wheels, Tires Install - Step 4; Body, Wheels, Tires Install - Step 5; Steering Servo Chart

22

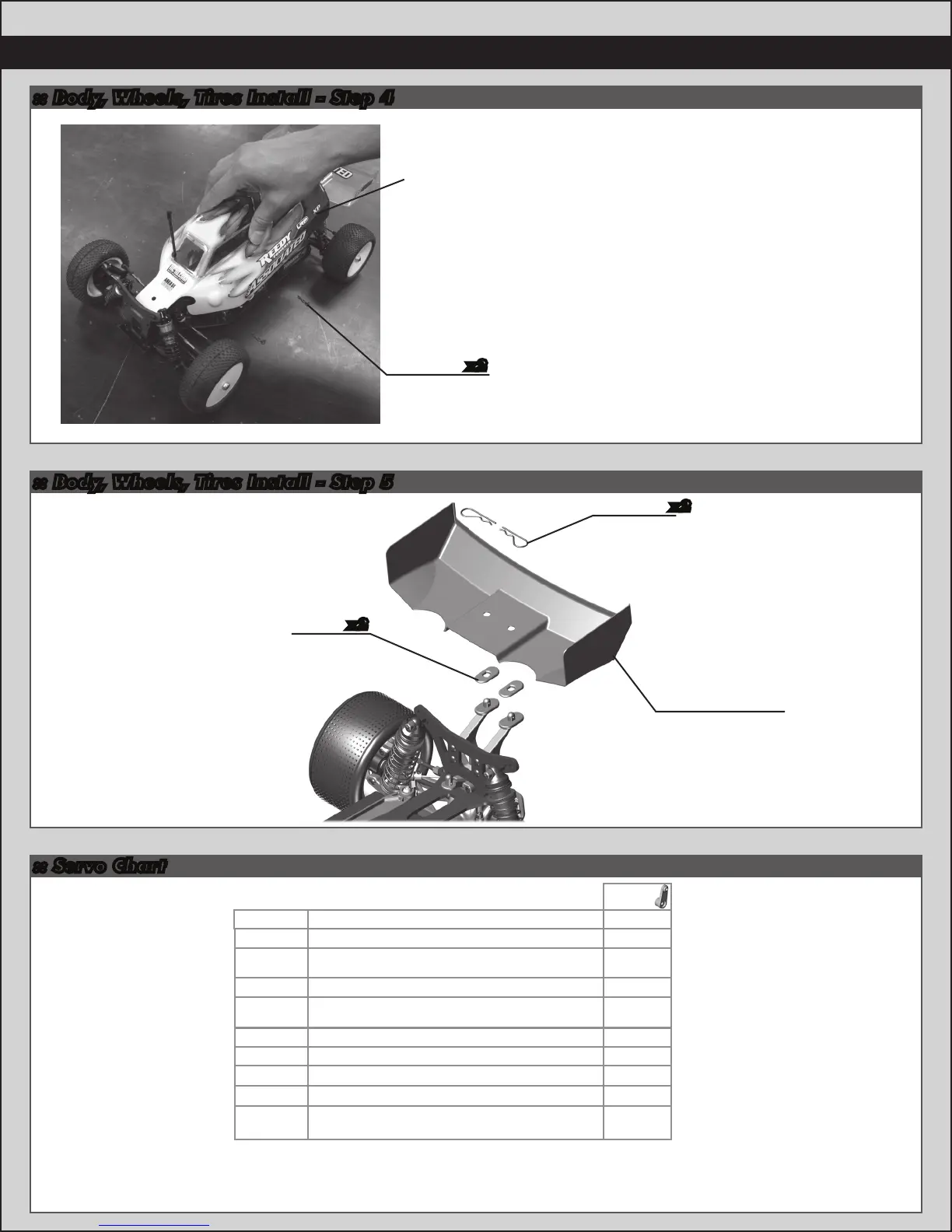

:: Body, Wheels, Tires Install - Step 4
:: Body, Wheels, Tires Install - Step 5
:: Servo Chart
x2
x2
1736
FT body
clips, blue
9729
Wing
shims
9772
High downforce
wing, 6.5”
Painting Tips:
Body :
Your B44.2 FT comes with a clear polycarbonate
body. You will need to prep the body before you can
paint it. Wash the inside thoroughly with warm water
and liquid detergent. Dry the body using a clean, soft,
lint-free cloth. Use the supplied window masks to
cover the windows from the INSIDE of the body (RC
cars get painted from the inside).
Using high quality masking tape, apply tape to the
inside of the body to create a design. Spray (either
rattle can or airbrush) the paint to the inside of the
body (prefferably dark colors first, lighter colors last).
NOTE: use ONLY paint that is recommended for use
with (polycarbonate) plastics. If you don’t, you can
destroy the plastic body!!!!).
After painting, cut the body along the trim lines. Make
sure to drill or use a body reamer to make the holes
for the body mounts and antenna!
#0248
B44.2
Finnisher
body by
JConcepts
x2
1736
FT body
clips, blue
Steering Servo Chart
Associated
* Not all servo’s are listed
* Make sure servo linkage clears the servo through full travel in both directions.
Use #7336 servo spacers to adjust the servos position
XP-1015, XP-1313
F
F
F
A
A
H
H
J
J
J
# 9180
servo arm
94102
HS-5625MG, HS-5645MG, HS645MG
Z4750, Z2750
Z250, Z550
S9204, S9250, S9450
S9404
94257, 94258, 94357,
94358, 94452, 94453, 94755
HS-965, HS-985MG,
HS-5965, HS-5985MG
PS-401, PS-2001, PS-2004, PS-2015, PS-2173,
PS-2174, PS-2123, PS-2143, PS-2144
Airtronics
Airtronics
Hitec
Hitec
JR
JR
Futaba
Futaba
KO
