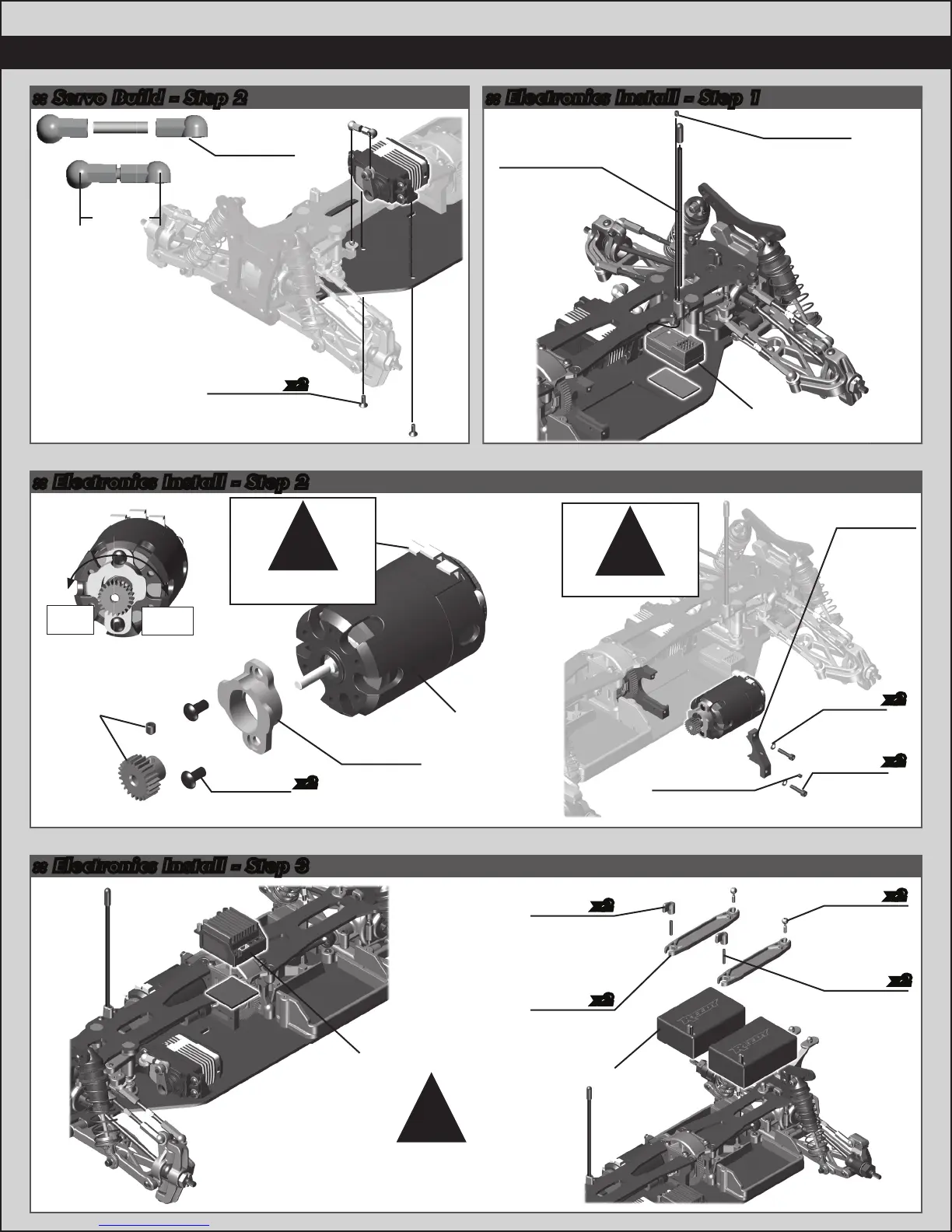

Associated Electrics RC10 B44.2 - Servo and Electronics Installation; Servo Build - Step 2; Electronics Install - Step 1; Electronics Install - Step 2

20
:: Servo Build - Step 2 :: Electronics Install - Step 1
:: Electronics Install - Step 3
:: Electronics Install - Step 2
LiPo batteries
not included!
ESC / Servo tape
not included!
Motor not
included!
Pinion and
setscrew not
included!
31531
M3x6mm
bhcs
9803
FT Motor
Mount Cam
x2
6338
Antenna
tube & cap
20.5m
x2
x2
x2
x2
9906
Battery
straps
9906
Battery
strap
locks
9906
Ball
joint
9906
4-40x5/8
set screw
9802
4-40x.100
setscrew
See ESC
manufacturer’s
instructions for
wiring!
!
6925
4-40x1/2
shcs
9802
Steel
washer
9802
FT Motor
mount
clamp
6951
4-40x1/8
set screw
x2
x2
7911
Servo link
x2
6292
4-40x3/8
fhcs
Set gear mesh!
!
Motor tabs should
clear top deck!
!
Loosen
mesh
Tighten
mesh
Receiver / Servo tape
not included!
