Associated Electrics RC10 B44.2 - Page 14

14

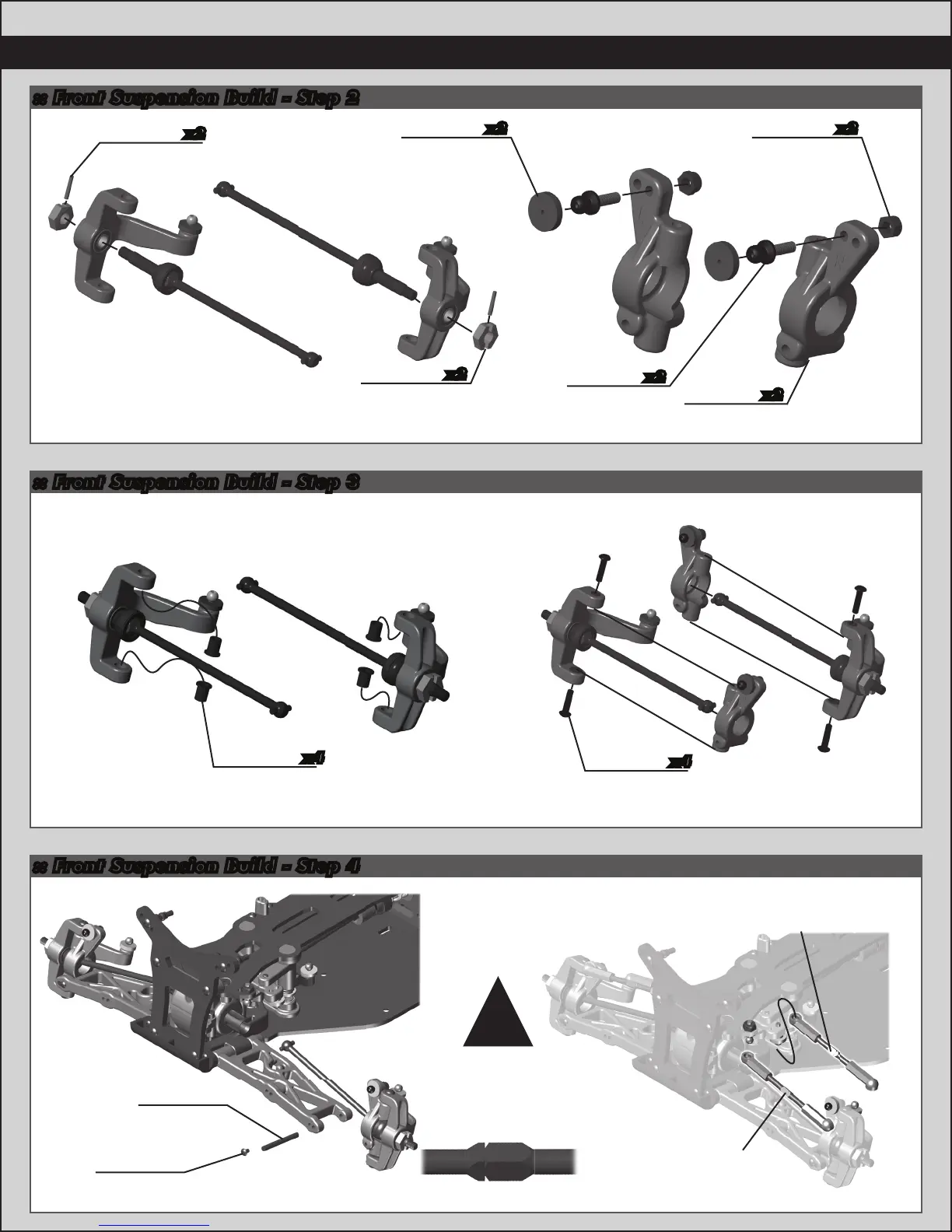

:: Front Suspension Build - Step 2
:: Front Suspension Build - Step 3
:: Front Suspension Build - Step 4
2221
4-40x7/16
bhcs
7369
1/16 axle
roll pin
9647
Steering
block bushing
6272
Dust cover
foam
9750
Axle drive
hex
4449
4-40x3/16
aluminum
locknut
9720
Caster block
(right, left)
3983
Ballstud, .30
black, short
x2
x2
x2
x2
x2
x4
x2
x4
Left Side
Left Side
Left Side
Left Side
Right Side
Right Side
Right Side
Right Side
9645
2-15x1/8
bhcs
Build x2 (right and left side)
9716
Hinge pin
set
Front
camber
link
Front
steering
link
Install x2 (right and left side)
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
!
