OPERATING INSTRUCTIONS
AU104488 C6B 22
Engine Speed
Before starting the engine make sure the area around the
machine is clear.
Do not run the engine at low idle speed for long periods
of time. This can cause a low operating temperature.
Long periods at idle speed can cause acids and deposits
to form in the engine oil.
It is recommended that you run the engine at full throttle
when operating conditions permit and when safe.
Before You Operate Each Day
Check all instruments for correct indications. Check all
controls in a clear area.
Driving the Machine
1. Start the engine.
2. Raise the trencher boom by pulling back on the
attachment control lever.
3. Slowly move the ground drive control to move
forward or to move rearward.
Stopping the Machine
This machine has hydrostatic braking. When you move
the Joystick to the NEUTRAL position, the machine will
stop.
TRENCHER OPERATION
Selecting Correct Tools for the Job
You can increase the digging speed and still get long life
from your trencher if you use the correct trencher
components. Read the following section on how to select
the correct combination of parts for your machine.
Then, see your Astec dealer and ask for complete
information on trencher parts.
As a general rule, always select the shortest boom,
lightest chain and lightest teeth to get the job done.
When you make the selection, know the trench width,
trench depth, soil and weather conditions of the job.
1. Select the boom length.
2. Choose the tooth width.
TRENCHER BOOM
The trencher boom is designed to give support to the
chain when digging. The boom design also prevents rocks
from getting between the chain and the boom and gives
full support to the digging chain.
Booms are available in 2, 3 and 4 feet digging depths (.6,
.9 and 1.2 meters).

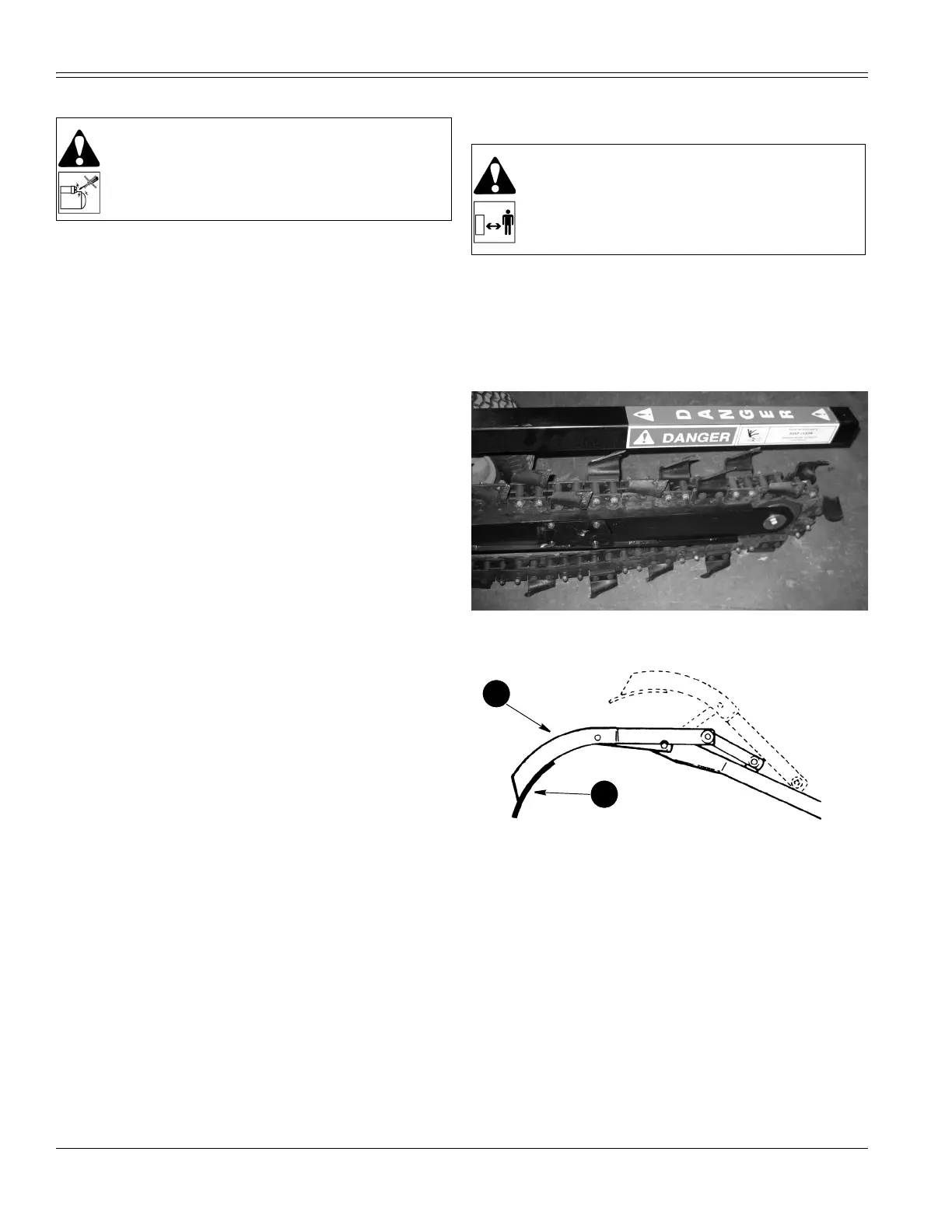

RT160001
Crumber Position (if equipped)
PICTURE OF CRUMBER
Place the crumber bar (1) down and lock it into the
position shown.
Crumber Blades (Shoes) (if equipped)
Install a crumber wear blade (shoe) (2) which is 25.4 mm
(1 in) less width than the trench width.
Crumber blades (shoes) aid in cleaning the bottom of the
trench. The blades attach to the optional crumber
bracket.
WARNING:
Operate controls only when in the
operators position.
WARNING:
CLEAR THE WORK AREA OF ALL
BYSTANDERS. DURING DIGGING, KEEP
SPECTATORS AWAY. The digging chain of your
trencher can throw rock and soil debris a
considerable distance.
