51 AU104488 C6B
ELECTRICAL
BATTERY
Battery Service
NOTE:
The electrical system in this machine is 12 volts.
Before you service components in the electrical system,
always disconnect the negative (-) battery cable.
Do not run the engine with the battery disconnected.
Do not use a steam cleaner or cleaning solvent to clean
the alternator.
The engine is equipped with a fuel-cut solenoid that
allows fuel to flow to the carburetor main jet when the
ignition switch is in the ON or START position and stops
the flow to the main jet when the engine switch is in the
OFF position.
The engine must be connected to the battery to energize
the fuel-cut solenoid, allowing the engine to run. Do not
disconnect the battery from the engine while the engine is
running. If the battery is disconnected, the flow of fuel to
the carburetor main jet will be shut off and the engine will
stop.

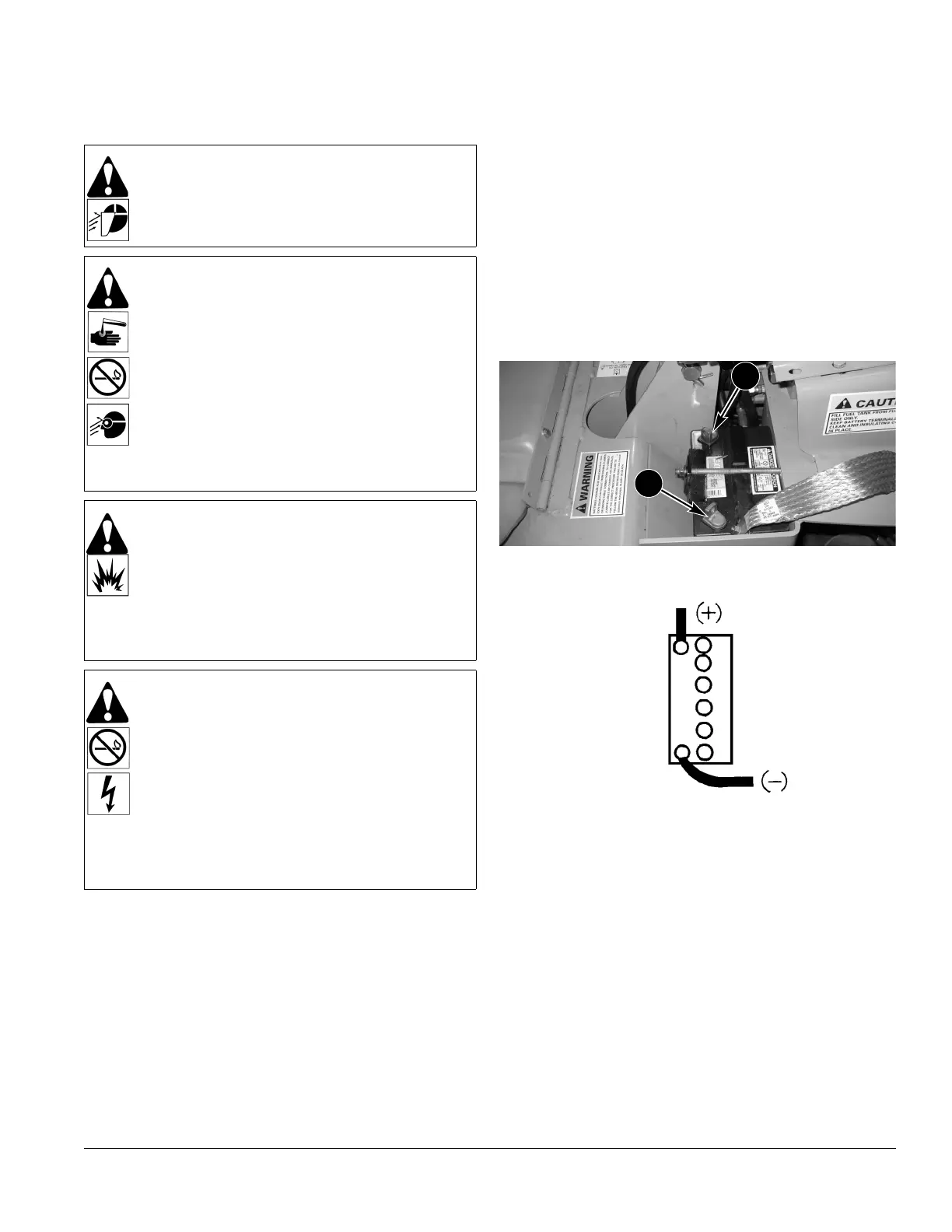

Battery Connections
RT160017
1. NEGATIVE TERMINAL (-)
2. POSITIVE TERMINAL (+)
RT160033
BATTERY TERMINALS
Battery Fluid Level
Check the fluid level in the battery every 50 hours of
operation. Add clean distilled water to each cell until the
fluid level is at the split ring in each cell opening.
IMPORTANT:
If the temperature is 0 C (32 F) or below
and you have added water to the battery do the
following: Connect a battery charger to the battery or run
the engine for two hours to mix the water with the
electrolyte.
Battery Vents
Keep the hood vents clean. Make sure the vents are not
restricted.
WARNING:
Before you service a battery,
always wear face protection, protective gloves
and protective clothing. Battery acid or battery
explosion can cause serious injuries.
WARNING:
Battery acid causes severe burns.
Batteries contain sulfuric acid. Avoid contact with
skin, eyes or clothing. Antidote - EXTERNAL: flush
with water. INTERNAL: drink large quantities of
water or milk. DO NOT induce vomiting. Seek
medical attention immediately. BATTERIES
PRODUCE EXPLOSIVE GASES. Keep sparks,
flame, lit cigars and cigarettes away. Ventilate
when charging or using in enclosed area. Always
wear eye protection when working near batteries.
Wash hands after handling. KEEP OUT OF REACH
OF CHILDREN.
WARNING:
When the battery electrolyte is
frozen, the battery can explode if, (1) you try to
charge the battery, or (2) you try to jump start
and run the engine. To prevent the battery
electrolyte from freezing, try to keep the battery
at full charge. If you do not follow these
instructions, you or others in the area can be
injured.
WARNING:
Sparks or flame can cause
hydrogen gas in a battery to explode. To prevent
an explosion, do the following:
1. When you disconnect the battery cables,
always disconnect the negative (-) battery cable
first.
2. When you connect the battery cables, always
connect the negative (-) cable last.
3. Do not short circuit the battery posts with
metal items.
4. Do not weld, grind, or smoke near a battery.
