SPECIFICATIONS
AU104488 C6B 56

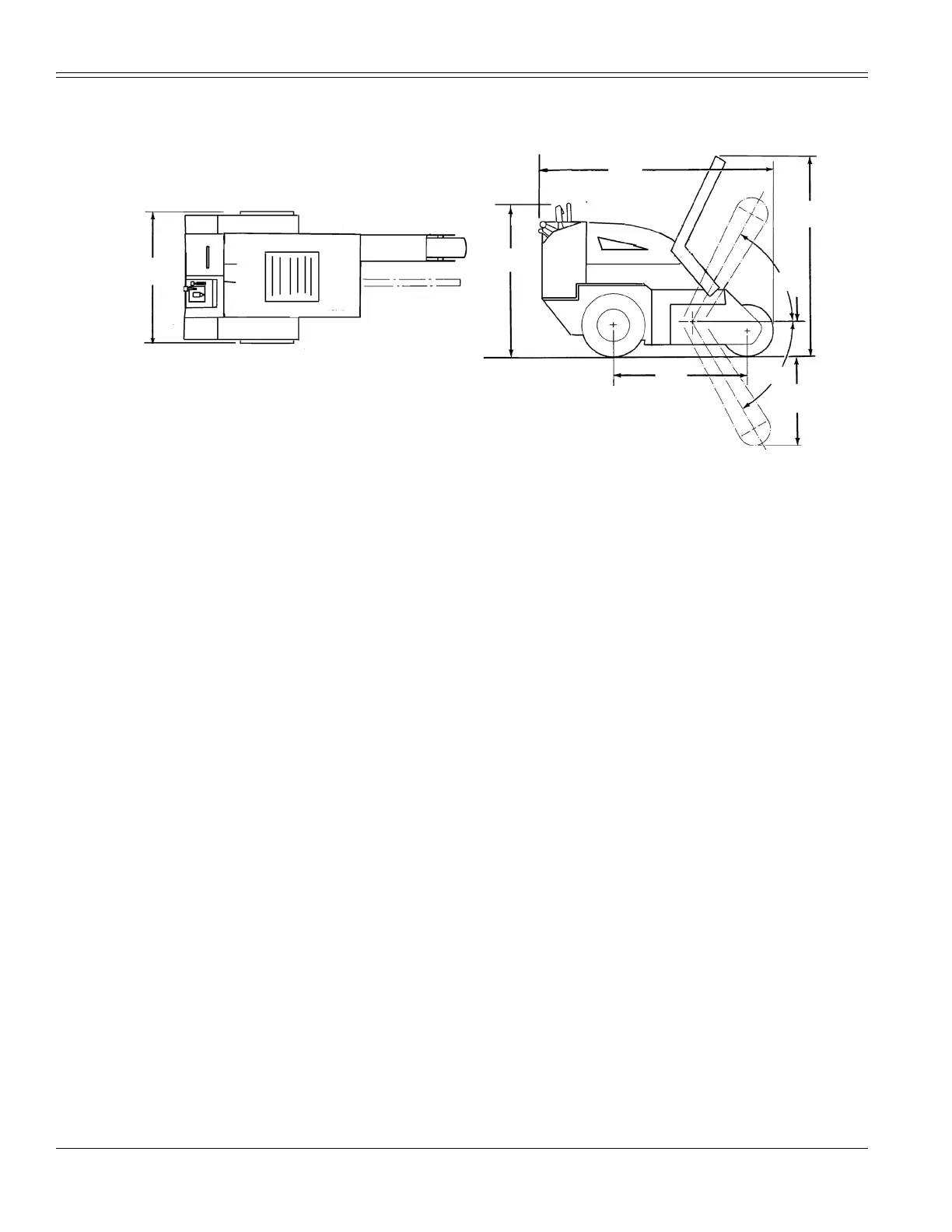

BASIC MACHINE DIMENSIONS
RT160042B
A. Transport Height (4 Foot Boom Fully Raised) ...........................................................................157.48 cm (62 in)
B. Wheel Base......................................................................................................................... 92.71 cm (36.5 in)
C. Overall Length with 4 ft. Boom & Crumber, Full Raised.............................................................. 165.1 cm (65 in)
D. Height To Top Of Controls ..................................................................................................... 119.38 cm (47 in)
E. Overall Width ......................................................................................................................... 91.44 cm (36 in)
F. Height Boom Pivot To Ground................................................................................................29.21 cm (11.5 in)
G. Boom Travel (from Horizontal)................................................................................................................Up 45°
H. Boom Travel (from Horizontal)........................................................................................................... Down 62°
I. Trench Maximum Depth ..................................................................................................................2.4 m (4 ft)
Chain Speed .........................................................................................................152 - 168 m/s (500 - 550 ft/min)
Trench Widths .................................................................................................. 10.16 cm (4 in) and 15.24 cm (6 in)
Power Train...................................................................................... Hydrostatic Drive Thru Wheel Drive Planetaries
End Idler Sprocket Diameter ........................................................................................................ 136 mm (5.36 in)
ENGINE DATA
Make and Model .......................................................................................................................................... Honda
Horsepower ................................................................................................................ 18 kw (24 hp) @ 3,600 RPM
Type of Fuel .............................................................................................................................. Lead-Free Gasoline
Cooling System ..................................................................................................................................... Forced Air
Spark Plug Number................................................................................................ZGR5A (NGK), J16CR-U (DENSO)
Spark Plug Gap ...........................................................................................................0.7 - 0.8 mm (.028 - .031 in)
Spark Plug Torque ................................................................................................ Tighten 7/8 Turn After Plug Seats
Number of Cylinders ....................................................................................................Dual-Cylinder, 4-Stroke, OHV
Electrical System .........................................................................................................................................12 Volt
FUEL CAPACITY
Fuel Tank................................................................................................................................ 18.92 L (5 U.S. Gal)
Filter Type .......................................................................................................................................Single, In-Line
Consumption, Approximate ................................................................................................................ 0.54 lb / hph
A
B
C
D
E
F
G
H
I
