WHEELS/TIRES
AU104488 C6B 32
Tire or Rim Service
Always have a qualified tire technician service the tires
and rims for this machine. It is recommended that you
have this technician inflate the tires. To prevent accidents,
use a restraining device (tire inflation cage), correct
equipment and correct procedure. Explosive separation of
the tire (single piece rim) or the tire and/or rim parts
(multi-piece rim) can cause serious injury or death.

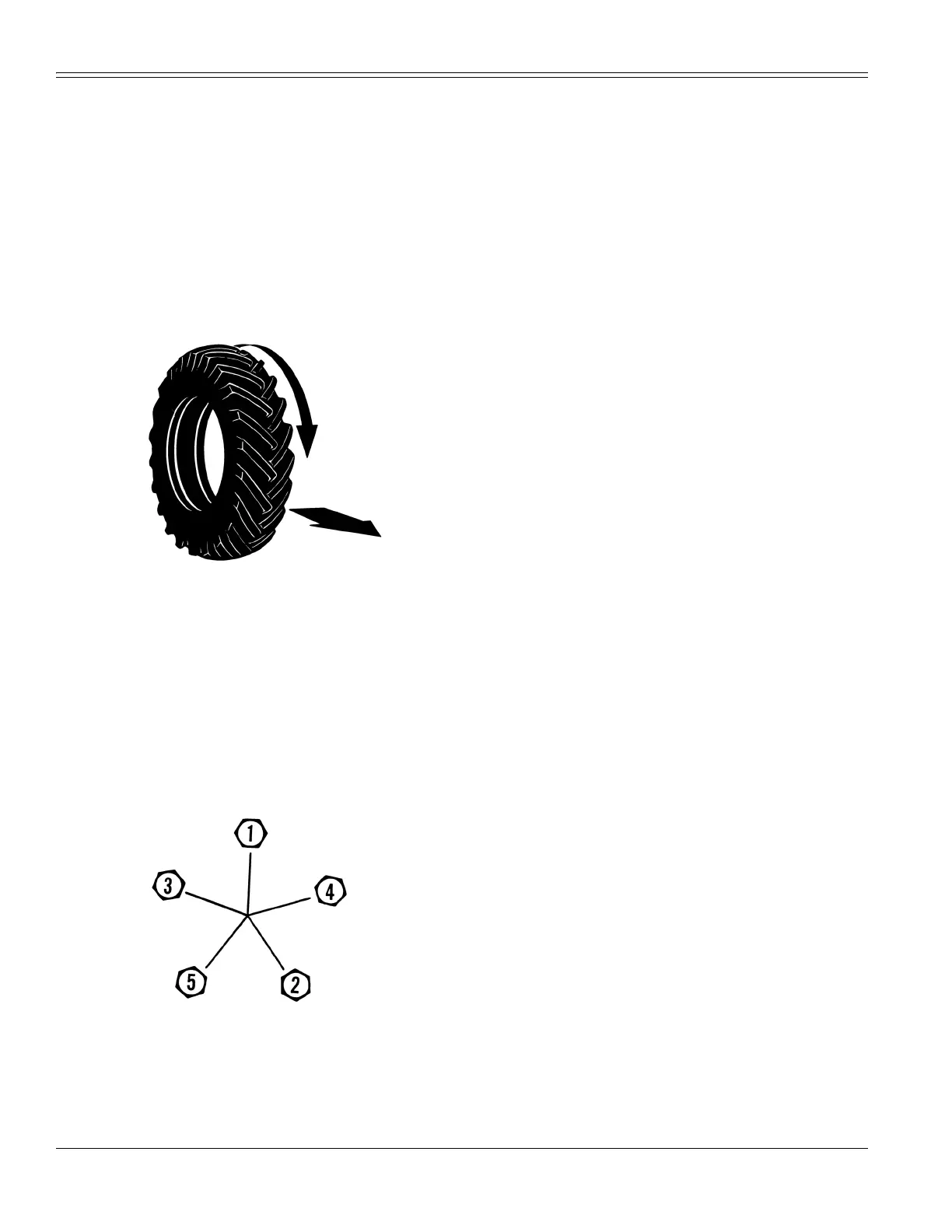

Tire Tread Direction
RT160040
When the tire is installed on the wheel make sure the tire
tread is in the direction shown.
Wheel Nut Torque
Use the sequence shown below in the illustration and
tighten the wheel nuts to 300 Nm (225 lb. ft.).
IMPORTANT:
Special wheel nuts with designed in
washers are used on this machine. Only use these wheel
nuts on your machine.
Tire Air Pressures
Check the pressure and the condition of the tires every 50
hours of operation.
Front Tire:
Size: 13 x 5.00 x 6
Recommended Air Pressure: 20 psi (138 kPa, 1.38 bar)
Rear Tires:
Size: 23 x 10.50 x 12
Recommended Air Pressure: 20 psi (138 kPa, 1.38 bar)
Size: 26 x 12.00 x 12
Recommended Air Pressure: 28 psi (193 kPa, 1.93 bar)
NOTE:
Maintaining correct tire pressure is very important
in order to prevent slippage between the wheel and tire
bead.
