2.1 Motherboard installation
The A7N8X uses the ATX form factor, measuring 24.5 cm
(9.6 in.) x 30.5 cm (12.0 in.) - a standard fit for most large chassis.
2.1.1 Placement direction
When installing the motherboard, take care to orient the chassis correctly:
The edge with external ports goes to the rear part of the chassis. Refer to the
image below. It may be more convenient to install major cables, the CPU
and modular components before fixing the motherboard inside the case frame.
2.1.2 Screw holes

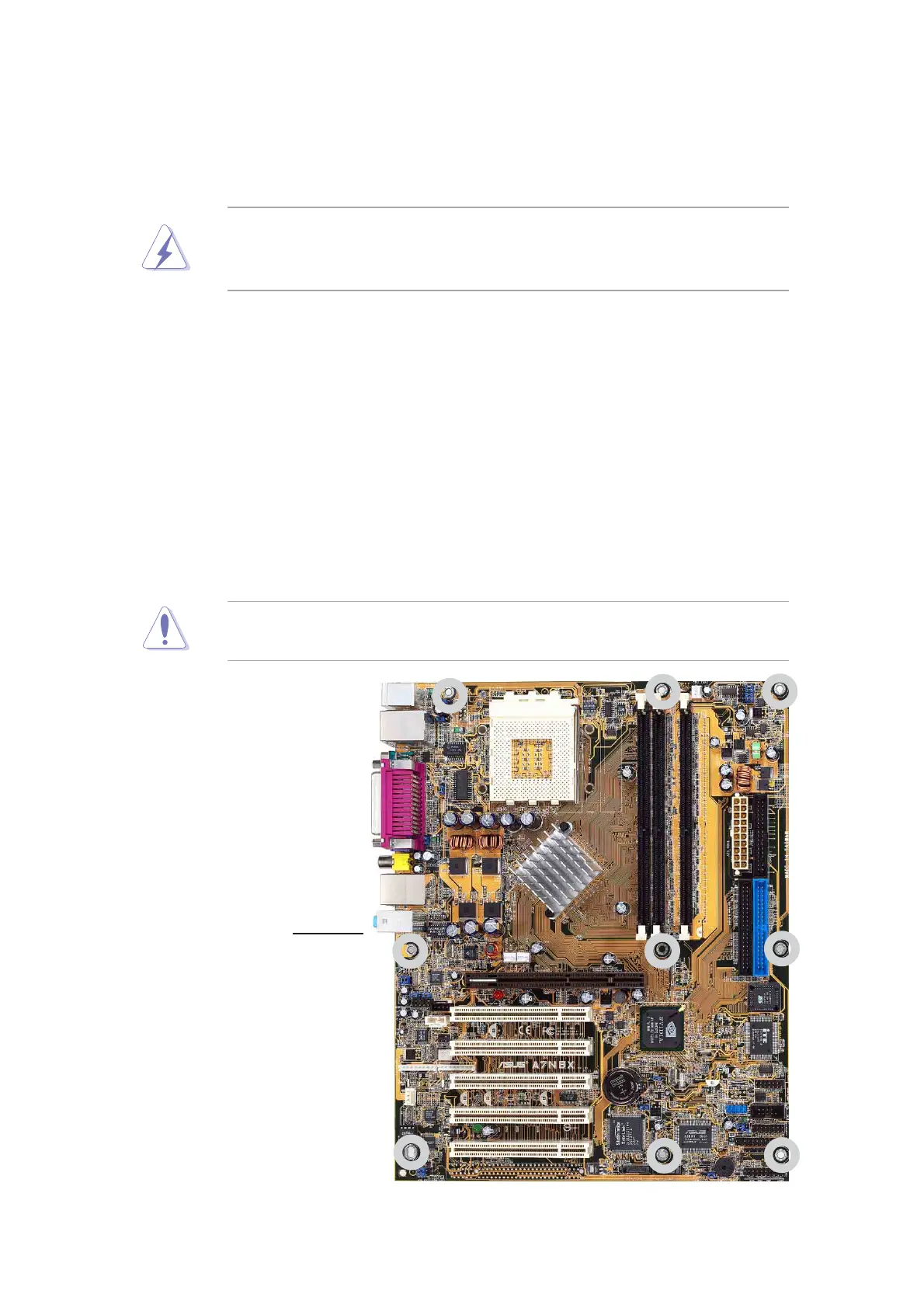

Place nine (9) screws into the holes indicated by circles to secure the
motherboard to the chassis.
Place this side towards
the rear of the chassis
CAUTION! Do not overtighten the screws! Doing so may damage the
motherboard.
WARNING! Unplug the power cord before installing the motherboard.
Failure to do so may cause you physical injury and damage motherboard
components.

Asus A7N8X Series Specifications

General

Memory Type	DDR SDRAM
Maximum Memory Supported	3 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
Form Factor	ATX
Socket	Socket A
Supported CPUs	AMD Athlon XP/Athlon/Duron
Memory Slots	3 x DIMM
Memory Types	DDR266/333/400
IDE	2 x ATA/133
Audio	6-channel AC'97
