ASUS A7N8X motherboard user guide 19
A7N8X
®

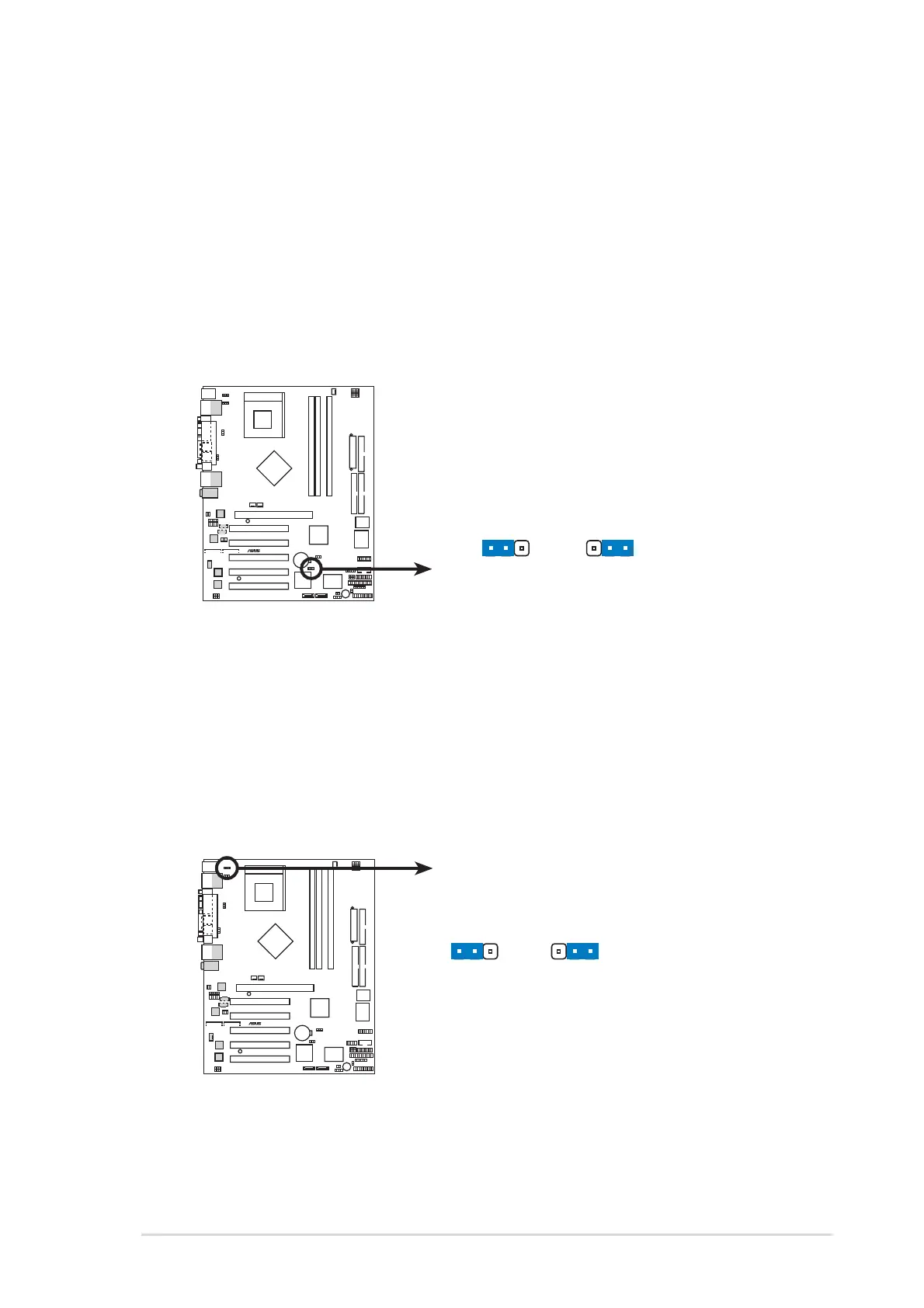

A7N8X SATA Setting
SATA_EN1
Enable
(Defaul
t)
Disable
1
2
2
3
1) Serial ATA Setting (3 pin SATA_EN1)
This jumper permits selection of the serial ATA headers for connection of
serial ATA hard disk drives and other serial IDE devices. The default setting
[1-2] enables the serial headers. Disable the serial headers by changing
the jumpers to [2-3].
2.7 Jumpers
The jumpers on the motherboard allow you to change some feature
settings to suit your customized system configuration.
A7N8X
®
A7N8X Keyboard Power Setting
KBPWR1
(Default)
+5V
1
2
+5VS
B
2
3
2) Keyboard Wake Up (3 pin KBPWR1)
This allows you to disable or enable the keyboard power up function. Retain
the default setting of [1-2] to disable computer keyboard-wake-up function. If
you set to [2-3] you may use your keyboard by pressing <Spacebar> to
wake up your computer. This feature requires an ATX power supply that can
supply at least 1A on the +5VSB lead.
(Default)

Asus A7N8X Series Specifications

General

Memory Type	DDR SDRAM
Maximum Memory Supported	3 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
Form Factor	ATX
Socket	Socket A
Supported CPUs	AMD Athlon XP/Athlon/Duron
Memory Slots	3 x DIMM
Memory Types	DDR266/333/400
IDE	2 x ATA/133
Audio	6-channel AC'97
