12
Chapter 2: Hardware information
4. Once completely inserted, press the CPU firmly and close the socket
lever until it snaps shut.
5. Place the CPU fan and heatsink on the CPU. The heatsink should entirely
cover the CPU. Carefully attach the heatsink locking brace to the plastic
clips on the socket base. With the added weight of the CPU fan and
heatsink locking brace, no extra force is required to keep the CPU in
place
2.4.2 Installing the CPU
Follow these steps to install a CPU:
1. Locate the Socket 462 and open it by
pulling the lever gently sideways away
from the socket. Then lift the lever
upwards. The socket lever must be fully
opened (90 to 100 degrees).

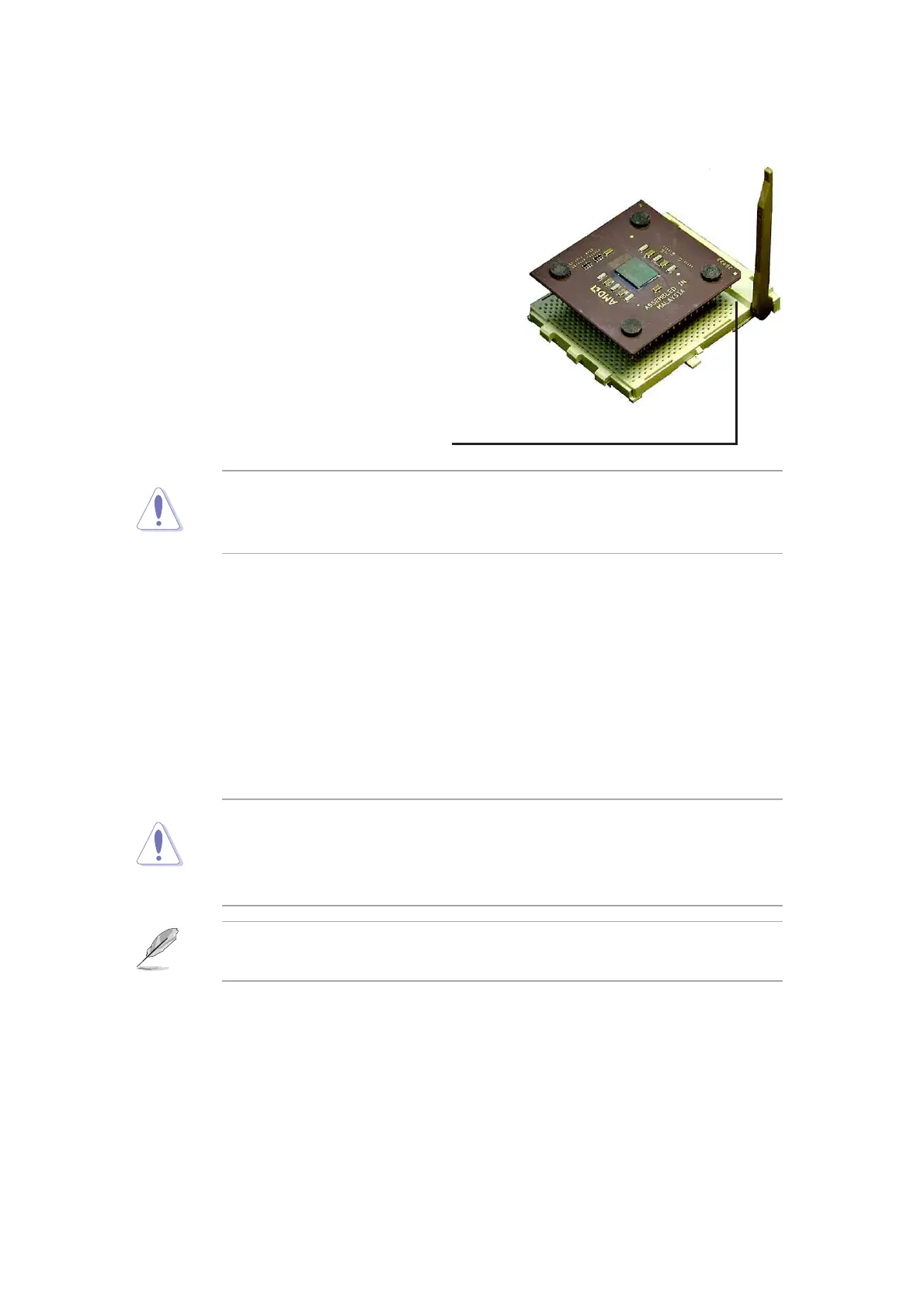

2. Insert the CPU with the correct
orientation. The notched or golden
corner of the CPU must be oriented
toward the inner corner of the socket
base nearest to the lever hinge.
NOTE! Do not neglect to set the correct Bus Frequency and leave the
CPU Multiple setting at default to avoid start-up problems.
CAUTION! Take care not to scrape the motherboard surface when
mounting a clamp-style processor fan, or else damage may occur. When
mounting a heatsink onto your CPU, make sure that exposed CPU
capacitors do not touch the heatsink, or damage may occur!
CAUTION! The CPU should drop easily into place. Do not force the
CPU into the socket to avoid bending the pins. If the CPU does not fit,
check its alignment and look for bent pins.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus A7N8X Series and is the answer not in the manual?

Asus A7N8X Series Specifications

General IconGeneral
Memory TypeDDR SDRAM
Maximum Memory Supported3 GB
Expansion Slots1 x AGP 8x, 5 x PCI
Form FactorATX
SocketSocket A
Supported CPUsAMD Athlon XP/Athlon/Duron
Memory Slots3 x DIMM
Memory TypesDDR266/333/400
IDE2 x ATA/133
Audio6-channel AC'97
