2.5 System memory
2.5.1 Overview
This motherboard uses only Double Data Rate (DDR) Synchronous Dynamic
Random Access Memory (SDRAM) Dual Inline Memory Modules (DIMMs).
These sockets support up to 1GB system memory using non-ECC PC400/
333/266/200 DIMMs.
Each DIMM socket/module is two-sided: each side defines one “row” of
memory. DIMMs come in combinations of single or double-sided types
ranging through 64MB, 128MB, 256MB, 512MB to form a total memory size
of 64MB to 1GB.
~ Three (3)) sockets are available for 400MHz-PC3200, 333MHz-PC2700,
266MHz-PC2100, or 200MHz-PC1600 DDR DIMMs to form a memory size
of 64MB to 1GB.

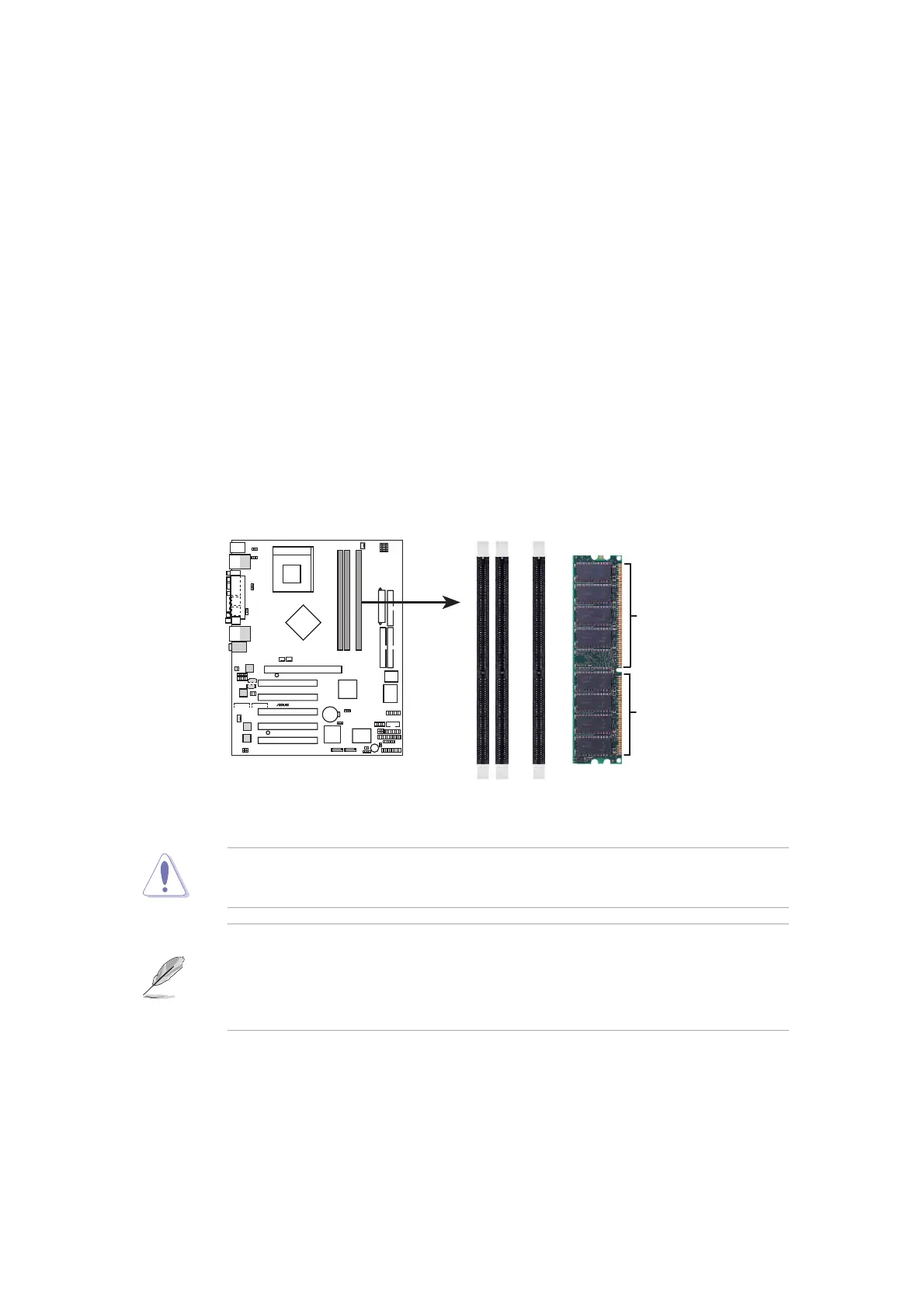

A7N8X
A7N8X 184-Pin DDR
DIMM Sockets
80 Pins
104 Pin
CAUTION! DIMMs are keyed to fit into notches with only one direction.
DO NOT force a DIMM into a socket to avoid damaging the DIMM.
• DIMMs with more than 18 chips are not supported.
• ASUS motherboards support SPD (Serial Presence Detect)DIMMs.
This is the memory of choice for best performance vs. stability
• BIOS shows DDR SDRAM memory on bootup screen.
