3. HARDWARE SETUP

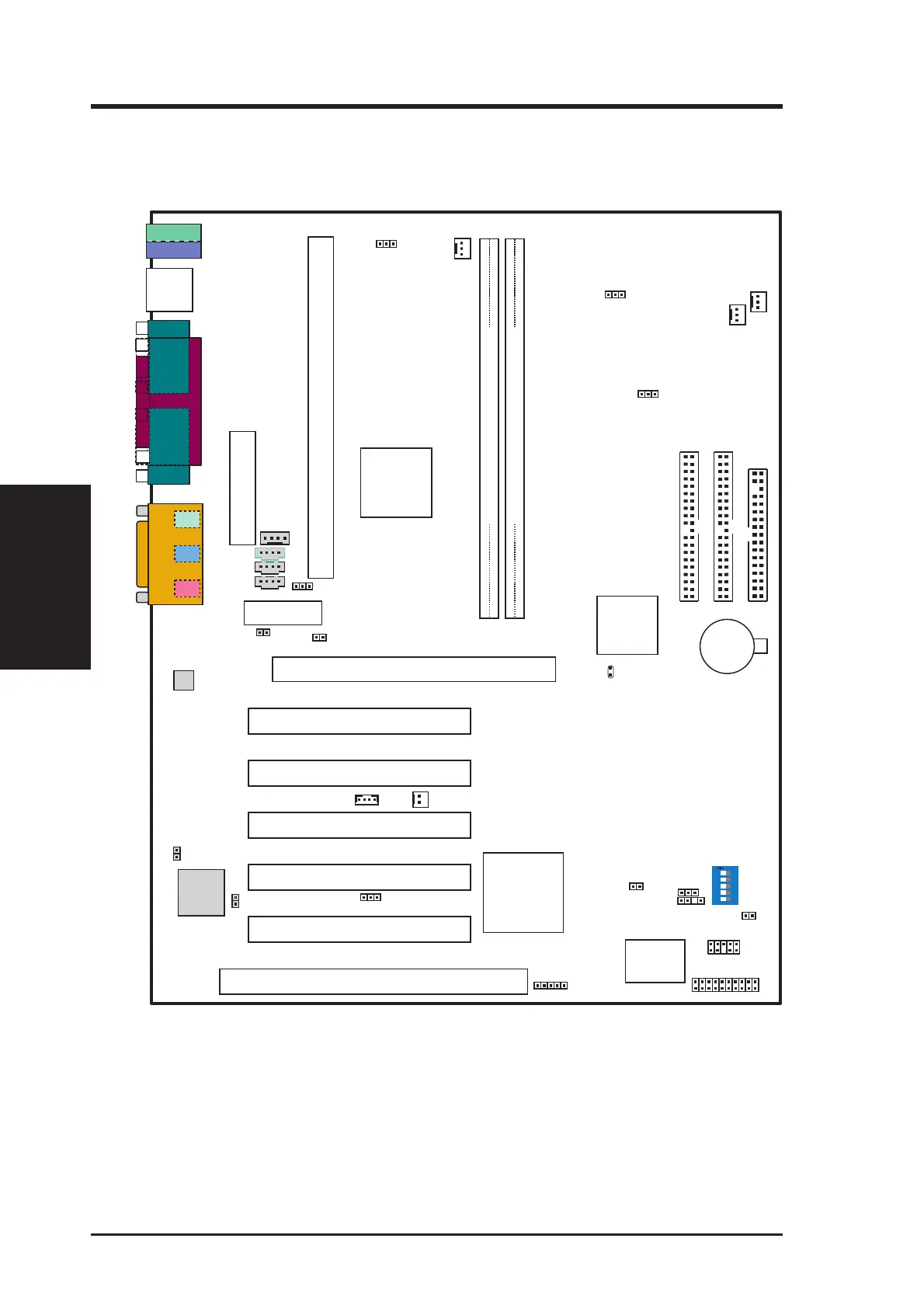

3.1 Motherboard Layout
P3C-E
GAME_AUDIO
Mic
In
Line
Out
Line
In
TRCPU
WOL_CON
JP15 (WOR)
PCI Slot 2 (PCI2)
PCI Slot 1 (PCI1)
PCI Slot 3 (PCI3)
PCI Slot 4 (PCI4)
PCI Slot 5 (PCI5)
Audio
Codec
JP10
CLRTC
SPDIOOUT
JP2
JP12
12345
Intel I/O
Controller
Hub (ICH)
PCI-to-ISA
Bridge
COM1
COM2
OPTIONAL
USB
T: USB1
B: USB2
B: Keyboard
T: Mouse
PS2KBMS
T: Top B: Bottom
ATX Power Connector
MODEM
Audio Modem Riser
CD_IN
VIDEO
AUX
Intel 820
Memory
Controller
Hub (MCH)
CPU1 (Slot 1)
CPU_FAN
RIMM0 (16/18 bit, 184-pin module) RIMM1 (16/18 bit, 184-pin module)
Row
RIMM0 RIMM1
3 2 1 4
SPDIFIN
Accelerated Graphics Port (AGP Pro)
CR2032 3V
Lithium Cell
CMOS Power
PRIMARY IDE
SECONDARY IDE
FLOPPY
PWR_FAN
CHA_FAN
32-bit
PCI
Audio
Chipset
ISA Slot (SLOT2)
DIP Switches
IR
ASUS
ASIC
with Hardware
Monitor
CHASSIS
TRPWR
JP22
O N
IDELED
PANEL
PARALLEL PORT
Motherboard Layout
3. H/W SETUP
Grayed midboard items are optional at the time of purchase.
