ASUS Xonar Phoebus

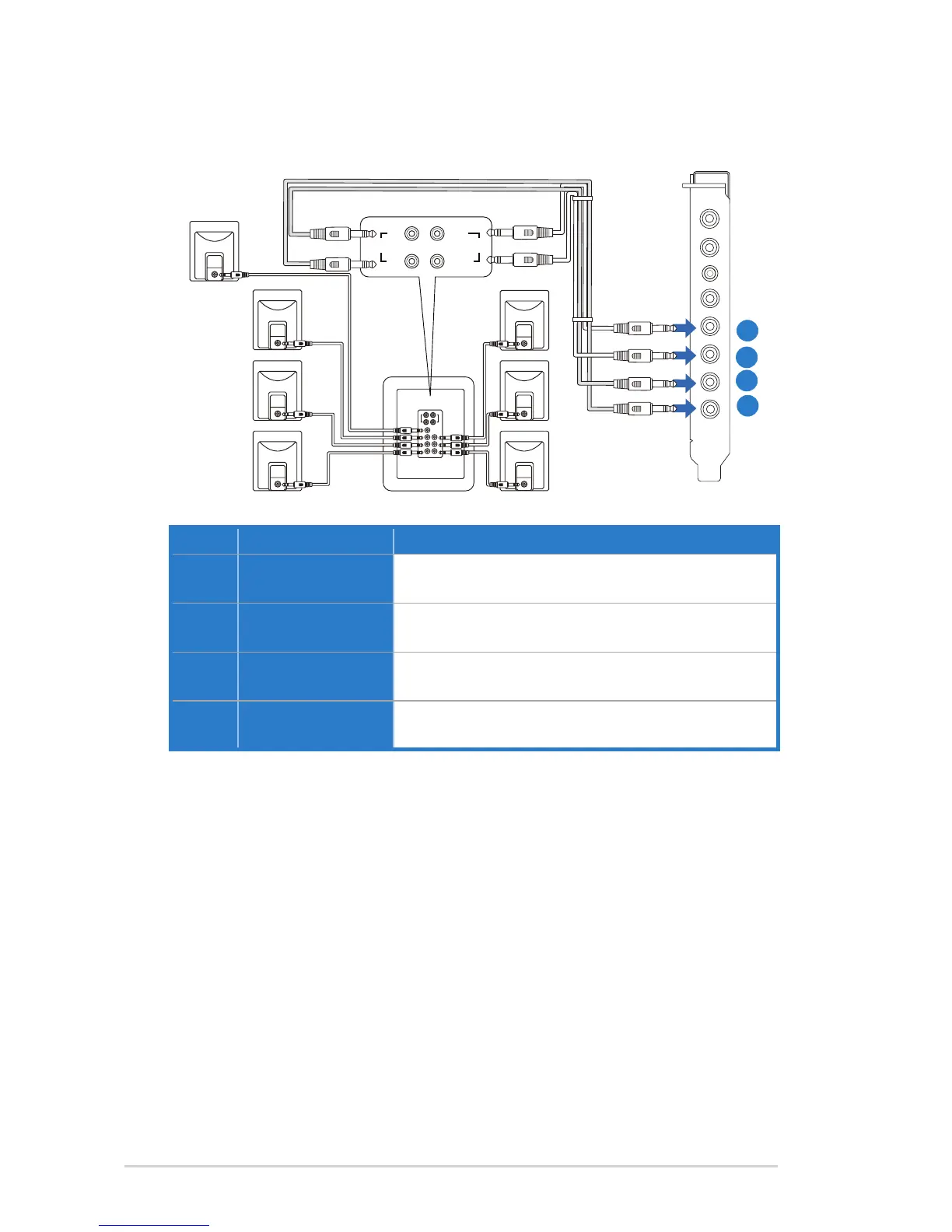

Connecting 7.1 channel speakers
7.1 speakers
Rear
Side
Front
Center/
Subwoofer
AUDIO
INPUTS
AUDIO
INPUTS
Mic in
HP out
Box link
Line in
Front
Ctr / Sbw
Rear
Side /
SPDIF out
No Item Description
1 Front Out
Connects to the Front input port of the 7.1 speakers with
the mini-jack cable.
2 Side Surround Out
Connects to the Surround input port of the 7.1 speakers
with the mini-jack cable.
3 Back Surround Out
Connects to the Back Surround input port of the 7.1
speakers with the mini-jack cable.
4 Center/Subwoofer
Connects to the Center/Subwoofer input port of the 7.1
speakers with the mini-jack cable.
1
3
4
2
