1-30
Chapter 1: Product Introduction
Chapter 1

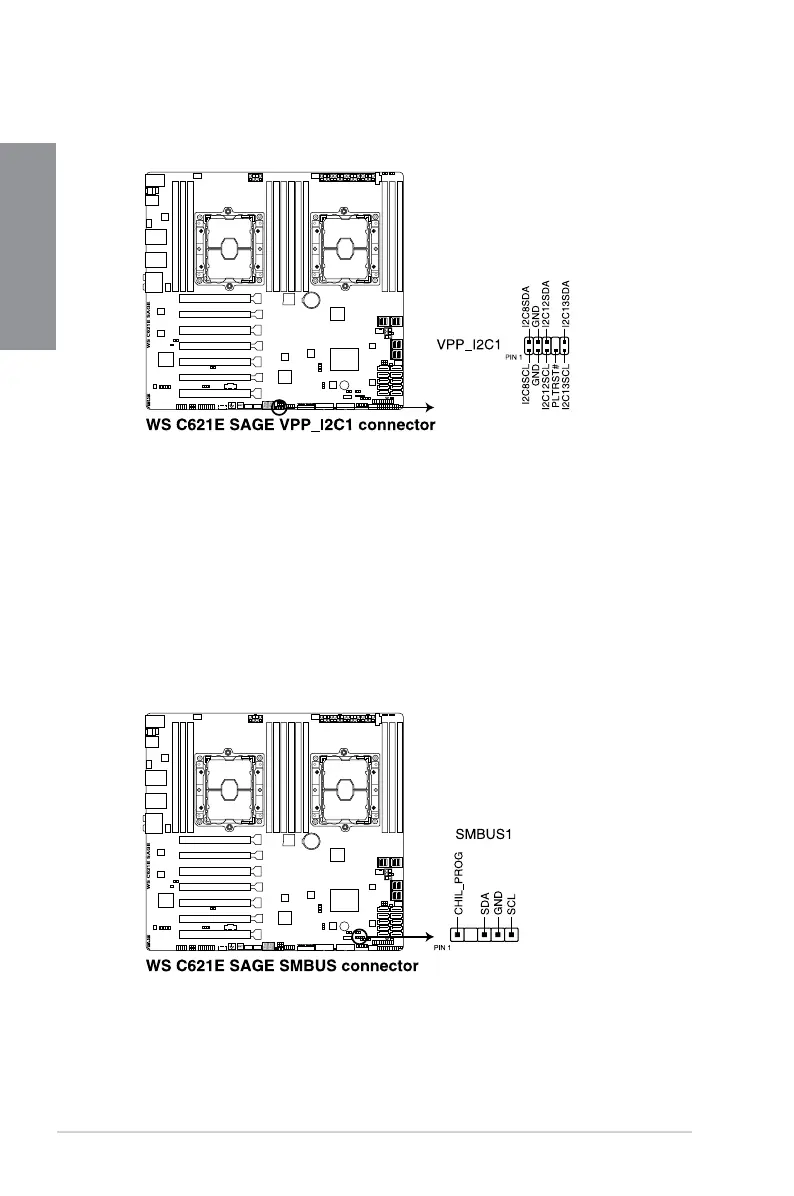

19. VPP_I2C1 connector (10-1 pin VPP_I2C1)
ThisconnectorisusedfortheIntelVMDfunctionandsensorreadings.
20. System Management Bus (SMBUS) connector (5-1 pin SMBUS1)
Thisconnectorcontrolsthesystemandpowermanagement-relatedtasks.This
connectorprocessesthemessagestoandfromdevicesratherthantrippingthe
individualcontrollines.
