ASUS WS C621E SAGE
1-31
Chapter 1

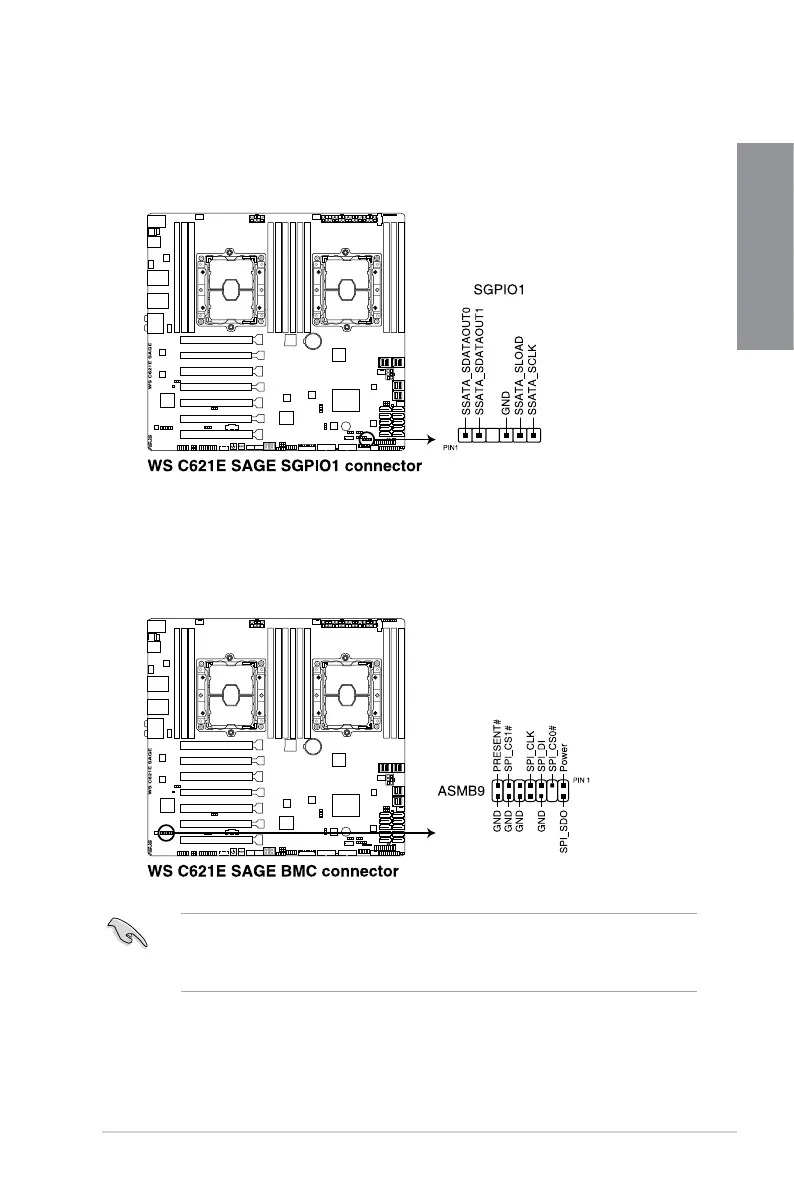

21. Serial General Purpose Input/Output connector (6-1 pin SGPIO1)
TheSGPIO1connectorisusedfortheIntelRapidStorageTechnologyEnterprise
SGPIOinterfacethatcontrolstheLEDpatterngeneration,deviceinformation,and
generalpurposedata.
22. BMC connector (14-1 pin ASMB9) (for WS C621E SAGE (BMC) only)
TheBMCconnectoronthemotherboardsupportsanASUS
®
ServerManagement
Boardcard.
• ThisconnectorisonlyenabledfortheWSC621ESAGE(BMC)model.
• TheBaseboardManagementCardisonlyavailablewiththeWSC621ESAGE(BMC)
model.
