Rev. AX5 Draft Page 23
AdvanTag 9100 Technical Manual
Chapter 2: Theory of Operation
Interfaces
a
Code Upgrade Functionality in ATR Gateway
Code Upgrade functionality would be provided by the processor’s On Chip boot loader. To
achieve the Code Upgrade functionality, the ATR needs to be switched to the Code
Upgrade mode. See “Code Upgrade” on page 26 for further details.
Interfaces
There are three LEDs to signify activity, a RESET button, and a switch panel for
specifying the unit's address (TargetID). See below for more details.
LEDs
The LEDs located on the top of the reader (see Figure 5) indicate the operational status
of the AdvanTag.

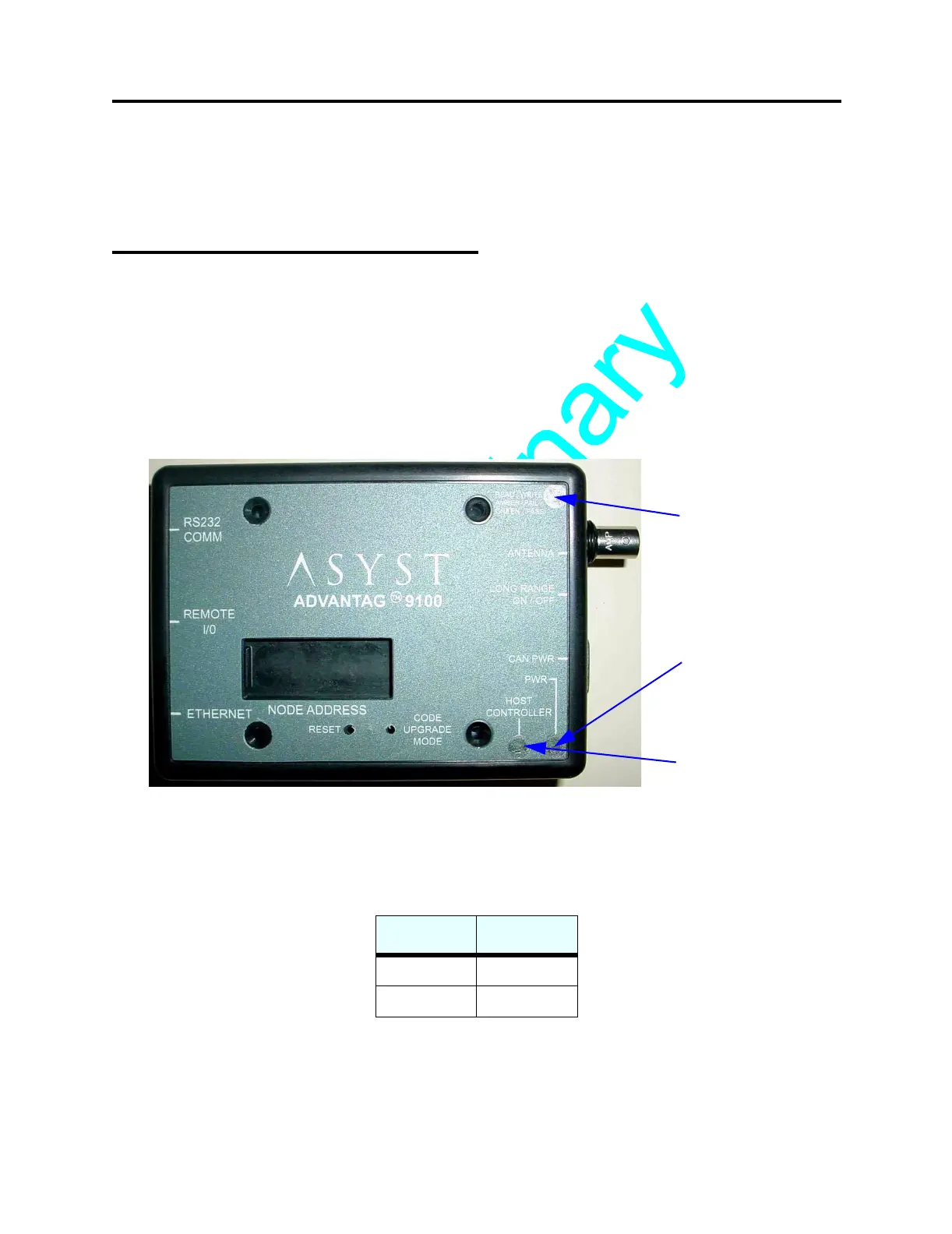

F
IGURE 5 AdvanTag 9100 Reader LEDs
Power Indicator
The POWER indicator, when lit, indicates that power is applied to the AdvanTag.
Host Comm
Green/Red/Amber, controllable by host command (on/off/blinking).
Light Status Power
Off No power
Green Power on
Read/Write LED
Host Comm LED
Power LED
