GB 22

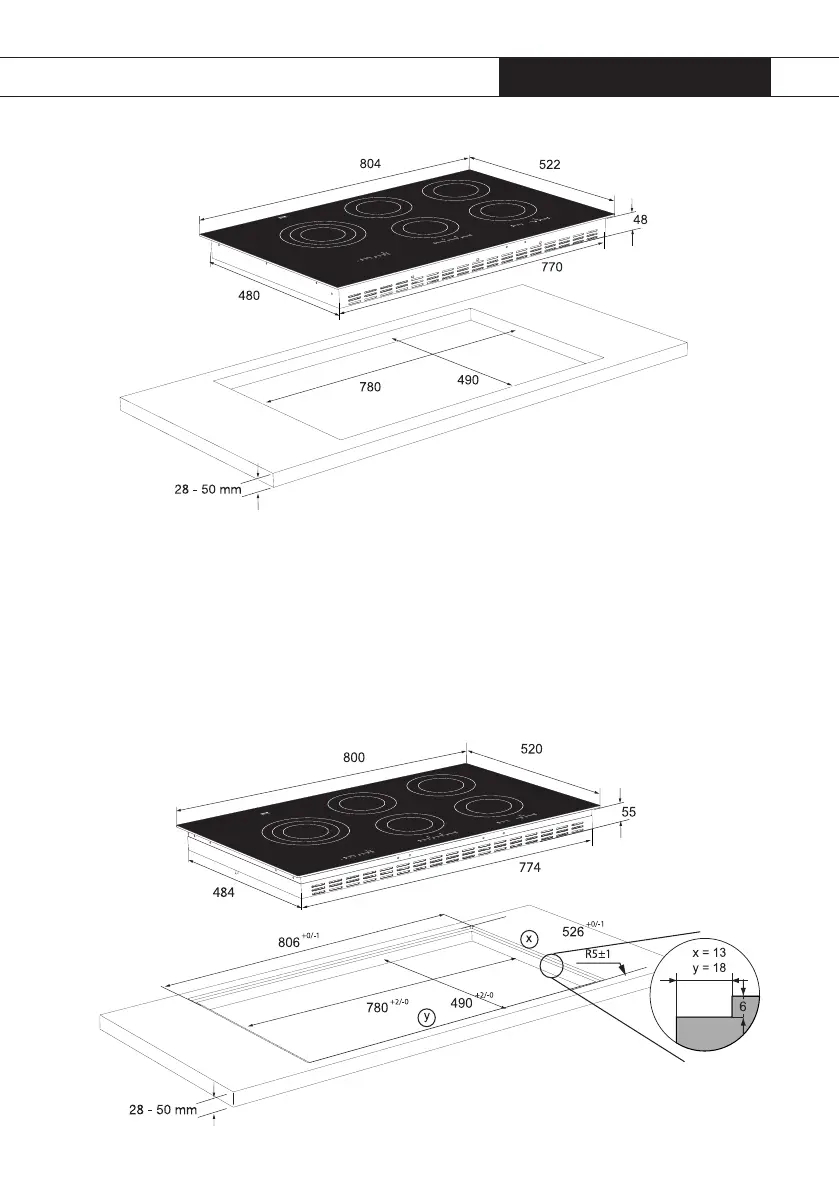

The dimensions and recesses are shown in the illustrations
above.
If you are using a 600 mm wide cupboard with a worktop less
than 500 mm thick, saw a cut-out “C” (page 25) in both sides
of the cupboard
HI807M (Dimensions in mm, tolerance 0.5 mm)
Model HI8071I is especially intended for integration in the worktop.
INSTALLATION DIMENSIONS
installation instructions
