Atag iR 12

Installation & Servicing instructions ATAG iR-Range
12

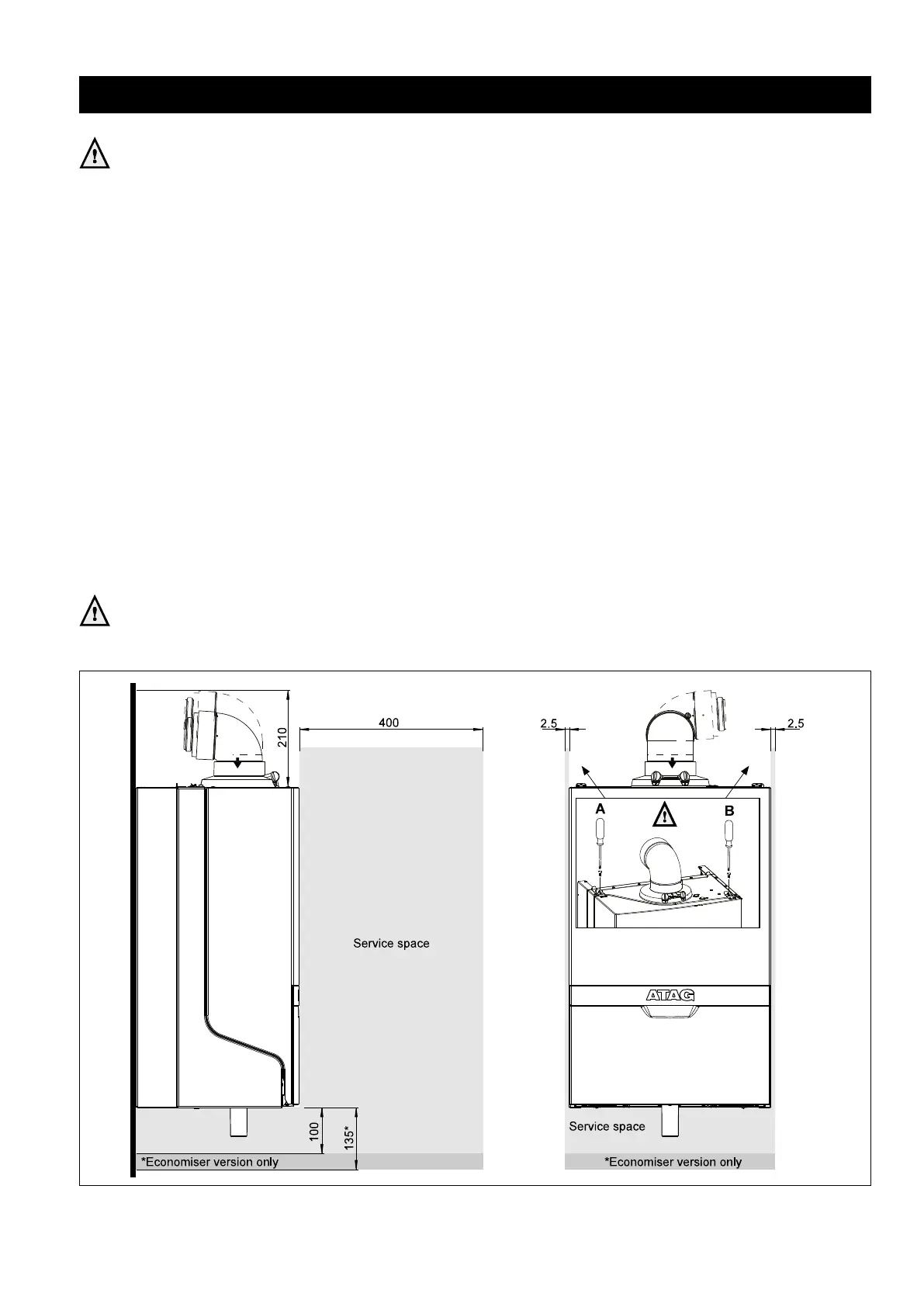

8.1 Wall frame
- Position the boiler frame against the wall using the template and a level.
- Usethelevelforhorizontalpositioningandcheckingtheverticalposition.
- Drill 4x ø10mm holes, 60mm deep
- Press the nylon wall plug (ø10x55mm) in the holes
- Mount the boiler frame to wall with the 4 coach screws (ø8x60mm) using a 13mm wrench
The boiler frame allows pipe work to be installed behind the boiler.
The pipe work must be installed at least 10mm inside the front of the frame.

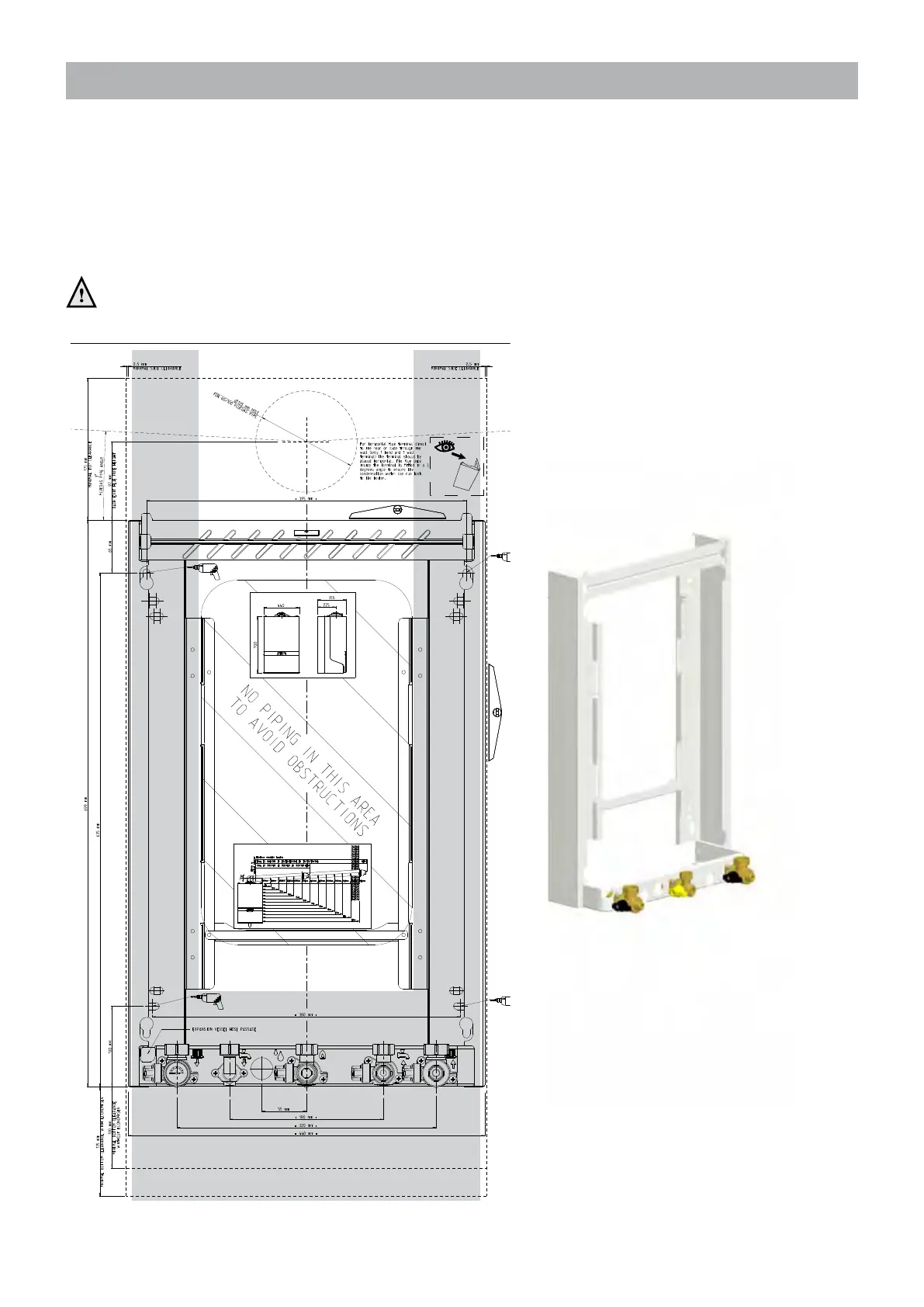

ATAG i-Serie template and boiler frame Figure 8.1.a
