Installation & Servicing instructions ATAG iR-Range
30
10 Electrical connection
The appliance complies with the actual directives. The installation must continue to comply with:
- A230V-50Hzmainselectricalsupplyisrequiredfusedexternallyat3A.
- Adeviationonthegridof230V(+10%or-15%)and50Hz
- the national rules for electrical installations.
The appliance must be connected to an earthed socket. This must be visible and within reach.
The following general stipulations also apply:
- No changes may be made to the wiring of the appliance;
- All connections should be designed in accordance with the enclosed regulations;
- Should it be necessary to change it, the mains power supply cable may only be replaced with an ATAG
mains power supply cable.

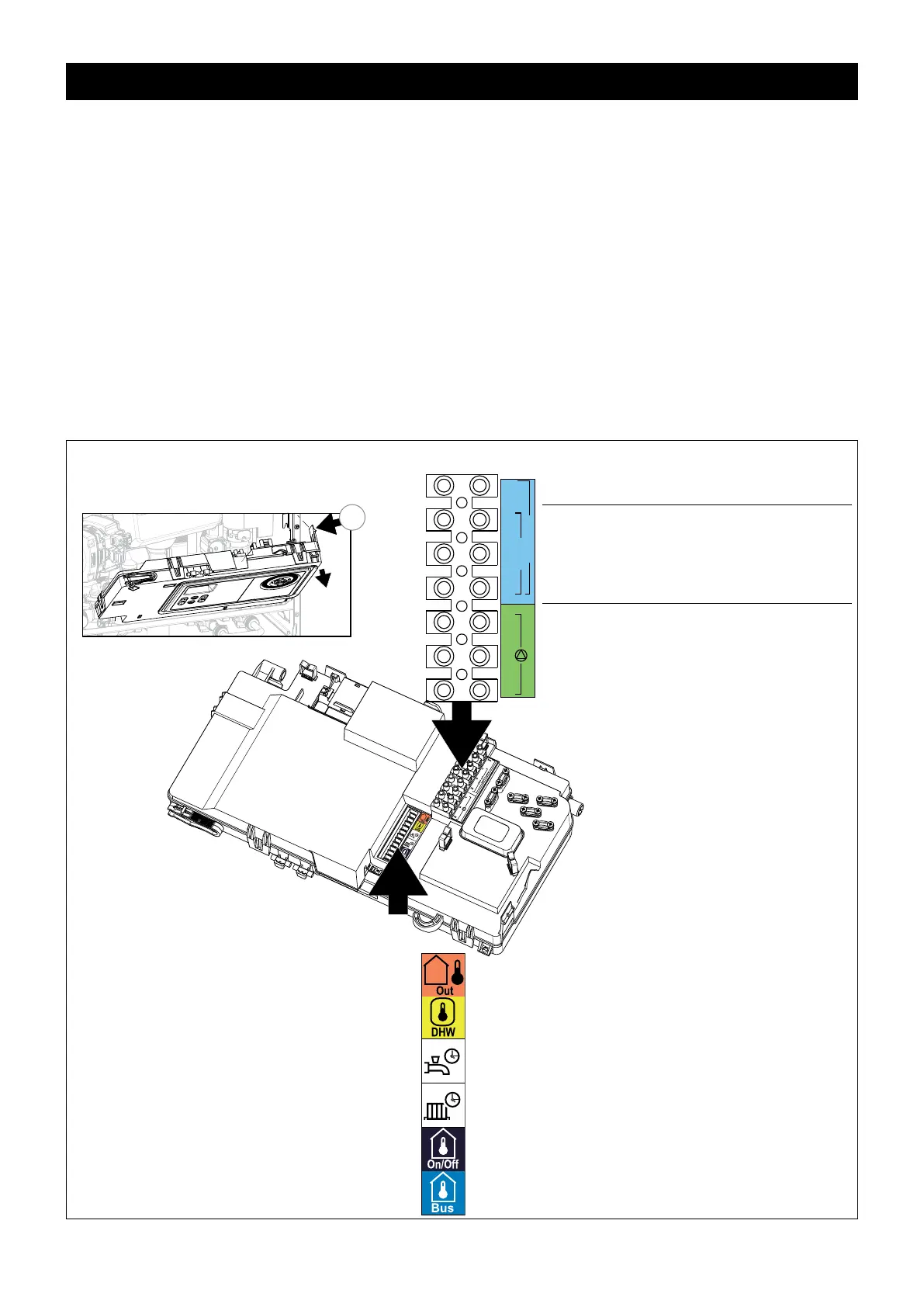

The connection terminals are positioned at the back of the control unit:
- PresshandleAslightlytotheleft(seeg.10.a)
- Turn the control unit downwards.
Terminal block iR-Range
n.a.=notapplicable
n.a.=notapplicable
n.a.=notapplicable
n.a.=notapplicable
n.a.=notapplicable
n.a.=notapplicable
terminal block Figure 10.a
E
N
L’
E
N
L
SwL
230V out
230V Control
230V control terminal block iR-Range
SwL: Switched live
L: Live
N: Neutral
E: Earth
L': Live pump
N': Neutral pump
E': Earth pump
DO NOT CONNECT 230VOLT
230V live output
A
230V live input only!
230V live output
to pump
