GB-11
Thermostats (for remote-
control)
Mounting Location
a – for applications without room sensor
If the internal room sensor is not to be
activated the unit may be mounted at
any location indoors.
b – for applications with room sensor
The activated room sensor should be
fixed at a height of approx.1.20 – 1.50
m at a place most representative of all
rooms. It is recommended to chose a
partition wall in the coolest day room.
In order to ensure sufficient air
circulation at the room station, it must be
mounted to the wall with a gap
inbetween.
The thermostat must not be mounted:
– at locations subjected to direct solar
radiation (consider the position of the
sun during winter).
– close to heat-generating appliances,
such as televisions, refrigerators, wall
lamps, radiators etc.
– on walls with heating or domestic hot
water pipes or chimneys behind.
– on non-insulated outside walls
– in corners or wall recesses, shelves or
behind curtains (insufficient ventilation)
– close to doors of unheated rooms
(influence of low temperatures)
– on unsealed flush-type boxes
(influence of external low temperatures
due to the chimney effect of installation
tubes)
– in rooms with radiators controlled by
thermostatic valves (mutual influence).
Mounting instructions

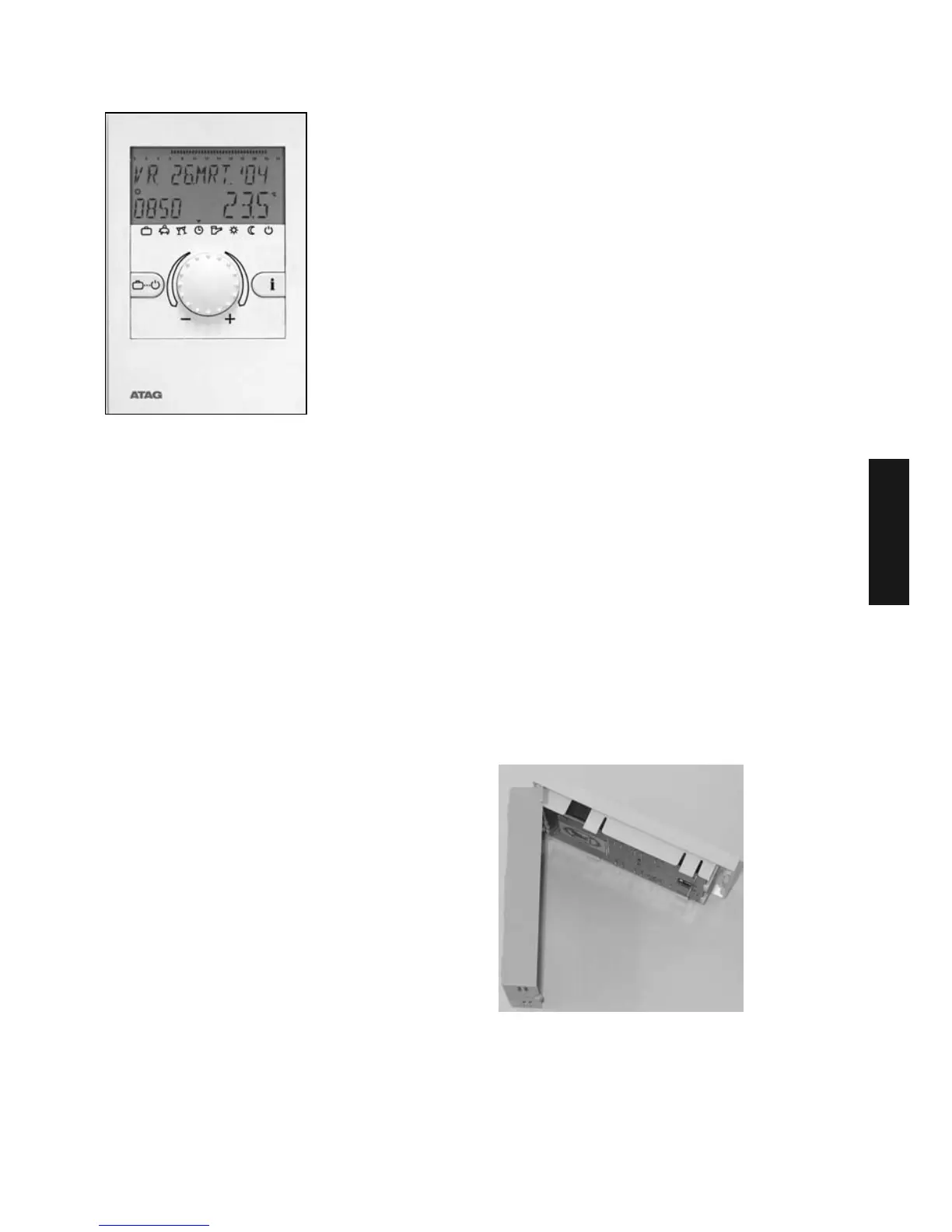

After removing the front panel by pressing
the locating lug the wall mounting base
can be taken off and mounted at the
desired location using the enclosed dowel
pins and screws. The data bus line must
thereby be routed through the bottom
cable gland.
Recommended connecting cable:
2x0.6 max. cable length: 50 m.
Note: For new installations use a
flush-mounting switch box to
ensure perfect routing of
cable.
↑ Locating lug
GB
