GB-9
Wall-mounting case
Application:
The wall-mounting case serves as a case
for the control unit.
Design
The wall-mounting case is only suitable for
use as a case and for the connections of
the control unit.
The control unit is ready for use after it
has been fastened to the motherboard
and after the output cables have been
routed.
Assembly and electric installation
1- Push out the cable inlets at the pre-
stamped locations at the top or bottom
according to the size and number of
the cable ducts.
Note:
If no cable duct is used, a suitable
strain relief for the cables must be
ensured during installation.

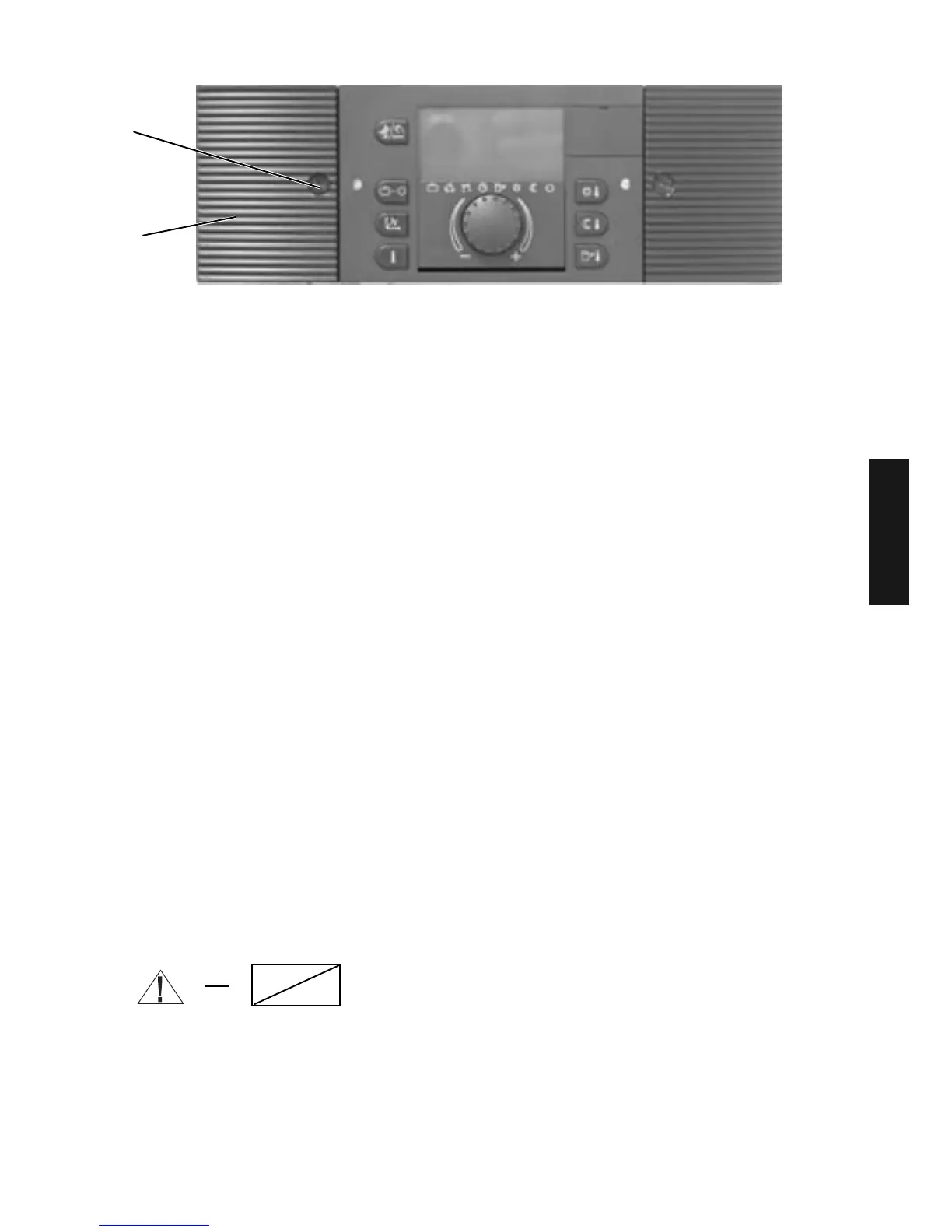

2- Place locking bolts (1) horizontally and
pull off the connection covers (2) to
one side.
3- Install the wall-mounting case with the
supplied bolts and dowel pins on a flat
surface without distorting it. Use the
enclosed drilling jig.
4- Carry out the electric routing according
to the unit version and the connection
diagram (see reverse).
The terminal clamps of the terminal
blocks X5 and X6 in the left
connection
area carry low voltage and may not
come into contact with the mains
voltage! Ignoring this will inevitably
lead to the destruction of the control
unit and to the loss of the basis for
warranty claims!
The terminal clamps of the terminal
blocks X7 to X10 in the right
connection area carry mains voltage,
depending on the operation mode.
When connecting the electric cables,
the cables with a solid core can be
placed directly into the clamp. The
twisted core must carefully be lead in
by pressing the locking device
5- Slide clamp covers onto the wall-
mounting case and fasten them.
6- Slide the control unit into the wall-
mounting unit and let it engage under
evenly distributed pressure. The
electric connection is made via the
socket strip on the motherboard.
Tighten the control unit and both quick-
clamping devices clockwise.
Note:
When routing the control unit, ensure that
sensor-, data bus- and mains lines are
routed separately. Mutual routing inside
one cable is prohibited. Use cable ducts
equipped with separators, if necessary.
230 V~
1
2
GB
