MC4111L / MAG 690
Technische documentatie

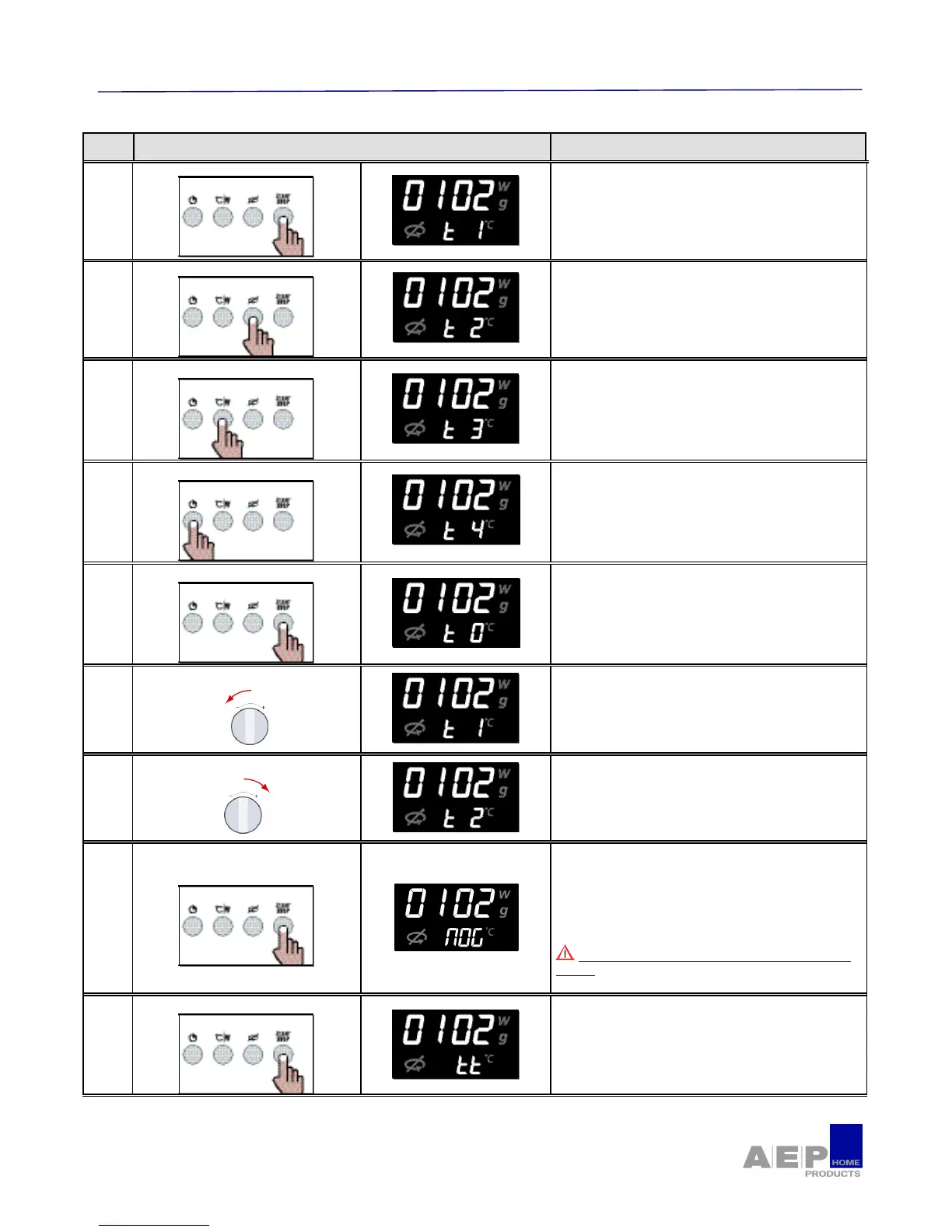

Step Run and display Remarks
7
Buttons checking
• Button "START/STOP" checking
NO ⇒ If connections to power card are OK, then button or
display out of order.
Continue the test
8
Buttons checking
• Button "TURNTABLE" checking
NO ⇒ If connections to power card are OK, then button or
display out of order.
Continue the test
9
Buttons checking
• Button "°C/W" checking
NO ⇒ If connections to power card are OK, then button or
display out of order.
Continue the test
10
Buttons checking
• Button "CLOCK" checking
NO ⇒ If connections to power card are OK, then button or
display out of order.
Continue the test
11
Action
• Button checking
NO ⇒ If connections to power card are OK, then button or
display out of order.
Continue the test
12
Left rotary switch checking
• Left rotary switch checking
NO ⇒ If connections to power card are OK, then Left
rotary switch or display out of order.
Continue the test
13
Left rotary switch checking
• Left rotary switch checking
NO ⇒ If connections to power card are OK, then Left
rotary switch or display out of order.
Continue the test
14
Functions checking
• The magnetron, the girl, The cooling fan, the lamp,
the turntable motor, the damper are on.
• Check the MW leakage
I absorbed = 14,7A
NO ⇒ If components, fuse, door switch, thermostat,
transformer, diode, capacitor and wiring OK then Power
card out of order.
to let cooking 2 has 3 minutes for the continuation of
the test
Continue the test
15
Turntable checking
• The Turntable is ON (Stays on even when opening
the door)
Continue the test
