MC4111L / MAG 690
Technische documentatie

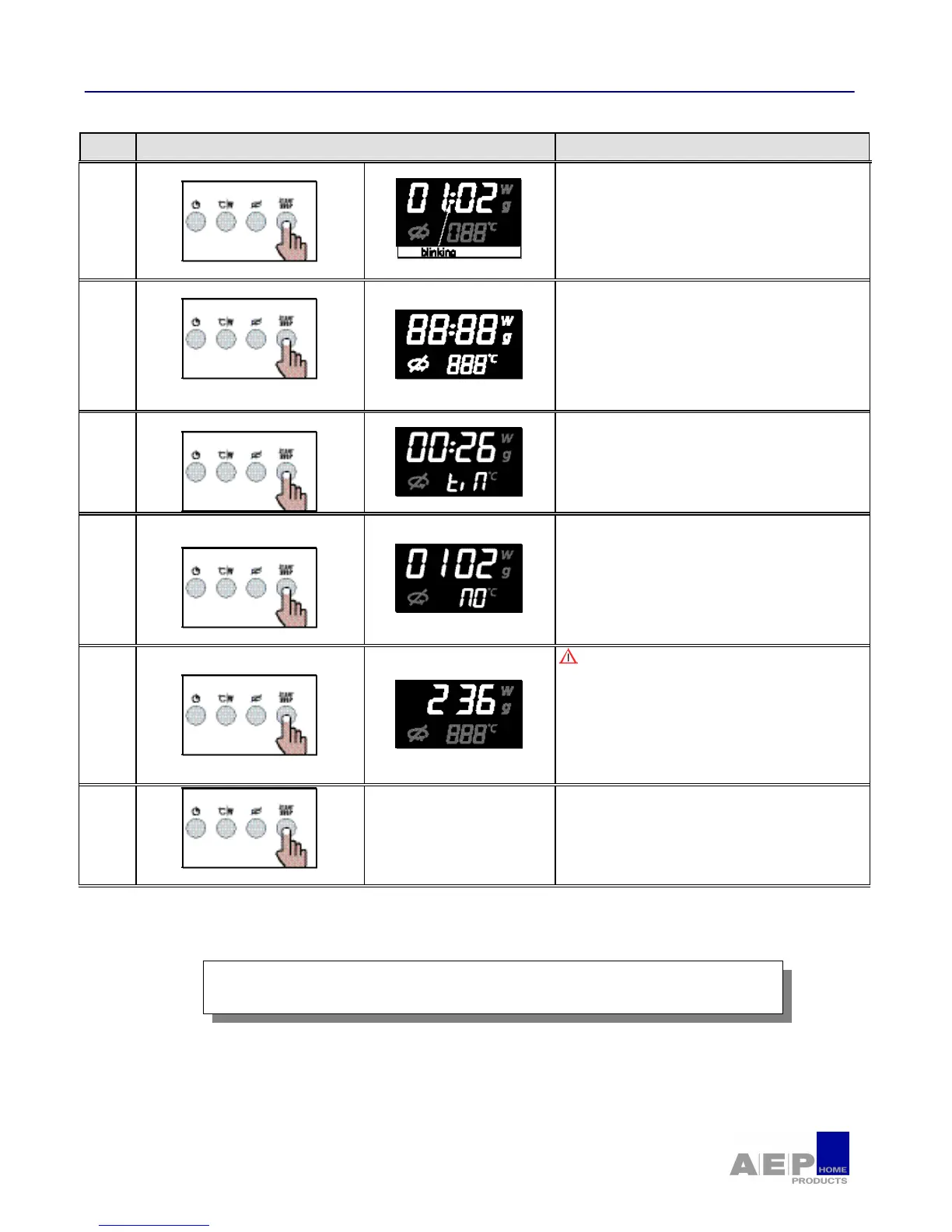

Step Run and display Remarks
16
Checking the damper
5s mini after the beginning of step 6
• When the damper could be checked, the colon of the
time is bilking.
Only damper and cooling fan are on. Those stay on when
door is opened
Continue the test
17
Checking the display
5s mini after the displaying of the “:”
form step 7
§ All the LCD are on.
During this step, the closing of the damper could be
checked.
The cooling fan is ON even when door is open.
Continue the test
18
Checking the clock
§ Random time is displayed. Check that time is
incrementing.
If the RTC (Real Time Clock) is not OK : “Err2” is
displayed.
Continue the test
19
Checking the MW function
• The magnetron, the cooling fan, the lamp, the
turntable motor are on.
I absorbed = 4,6 A
NO ⇒ If components, fuse, door switch, thermostat,
transformer, diode, capacitor and wiring OK then Power
card out of order.
When door is opened, only lamp stays on.
Continue the test
20
Checking the MW + hot air function
5s mini after the beginning of step 10
The oven must be hot, if not defect codes “ERR0”
On the display the conversion value of the temperature
captor (i.e. : 236). If the T° captor is OK the value is
decreasing.
The magnetron, the hot air heater, the cooling fan, the hot
air fan, the lamp, the turntable motor and the damper are
on.
When door is opened, only lamp and damper are on.
Continue the test
21
5s mini after the beginning of step 11
Exit of the DAP
