Atari 800 User Manual

22 User's Handbook to the Atari 400/800 Computers
Save the 810's carton and packing material, should the unit need
to be moved or stored.
Before
installing the Atari 810 disk drive, be certain that the
power switches on both the Atari 810 and the computer are off .
The first step
in installing the Atari 810 is to plug one end of the
AC power adapter into a household outlet, and the other to the
Atari 810 console. This is shown in Illustration 2-2.

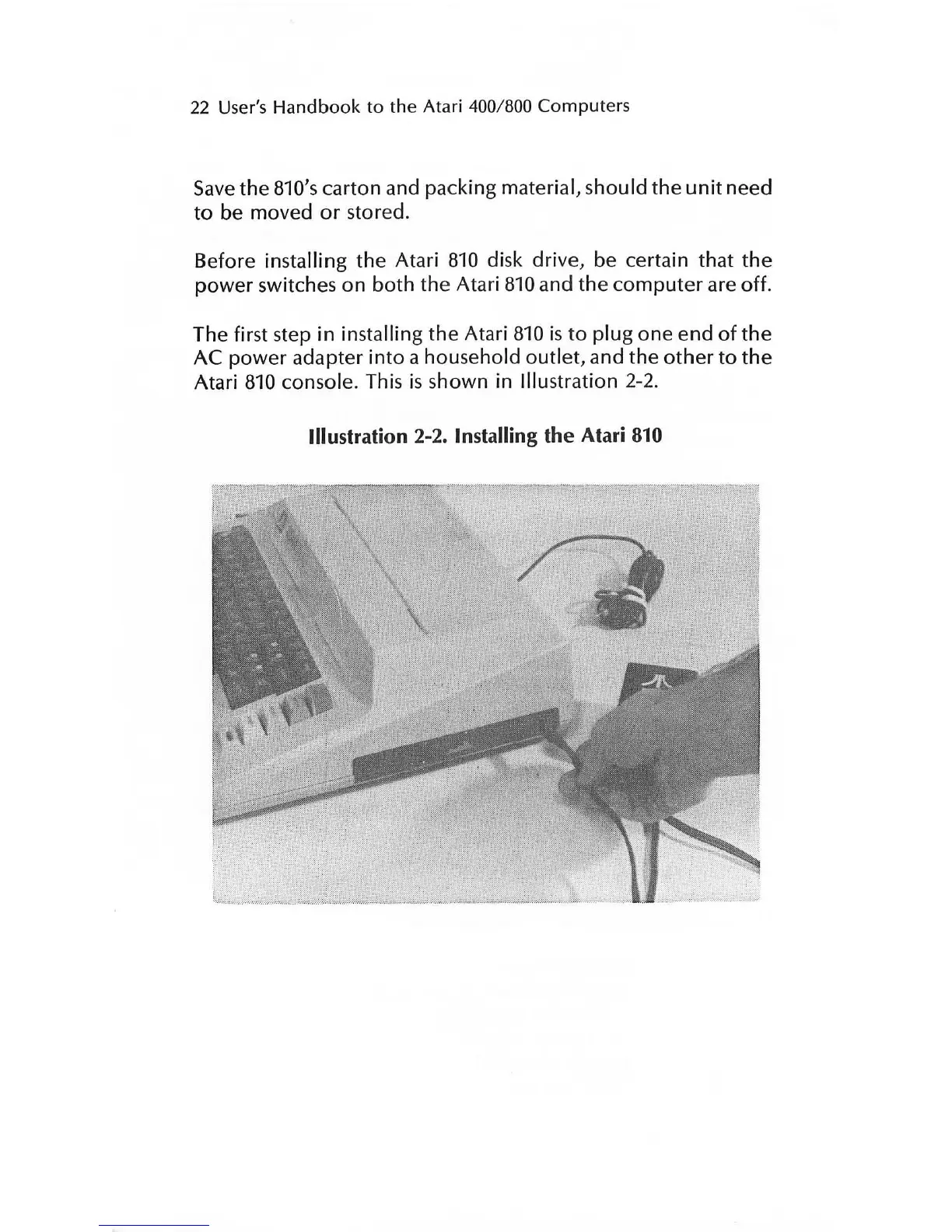

Illustration 2-2. Installing the Atari 810

Atari 800 Specifications

General

Processor	MOS Technology 6502
Processor Speed	1.79 MHz
ROM	10 KB
Graphics	ANTIC and GTIA chips
Release Year	1979
Display Resolution	up to 320 x 192
Colors	128 colors
Sound	4 channels
Storage	Cartridge, cassette, floppy disk
Ports	Cartridge, serial, monitor
Operating System	Atari OS
