ATEN CS692 User Guide

To prevent damage to your installation from power surges or static electricity, it is important that all connected devices are properly grounded.
Requirements
Console
An HD monitor capable of the highest resolution that you will be using on any
computer in the installation
A USB Keyboard and a USB Mouse
Speakers and microphone (optional)
Computers
The following equipment must be installed on each computer that is to be connected to the system:
An HD port
USB Type A ports
Speaker and microphone ports (optional)
Hardware Review
1. Port LEDs
2. Console Keyboard Port
3. Console Monitor Port
4. Console Mouse Port
5. KVM Cables
6. Console Audio Ports
7. Remote Port Selector
Hardware Review
1. Port LEDs
2. Console Keyboard Port
3. Console Monitor Port
4. Console Mouse Port
5. KVM Cables
6. Console Audio Ports
7. Remote Port Selector

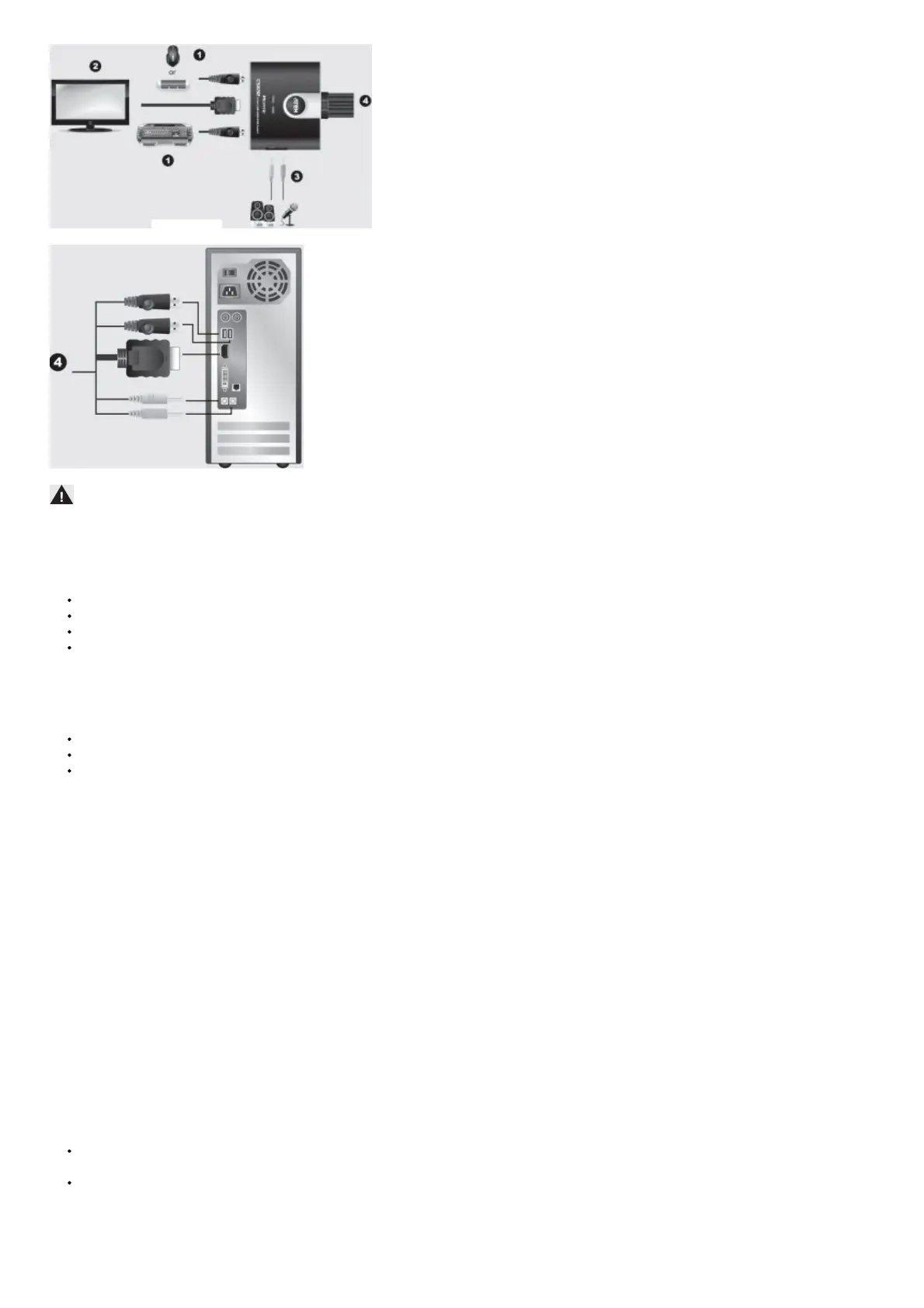

Hardware Installation
Make sure that the power to any device that you connect to the installation has been turned off. You must unplug the power cords of any
computers that have the Keyboard Power On function.
Make sure that all devices you will be installing are properly
1. Plug your keyboard and mouse into their USB ports, located on the front of the CS692. The ports are color coded and labeled with an appropriate
icon.
Note: The mouse connector is actually a USB 2.0 port, and can accept any USB compatible peripheral. You can even connect a hub to install multiple

ATEN CS692 Specifications

General

Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
Audio connections	Yes
USB connector type	USB Type-A
Number of microphone inputs	3
Number of computers controlled	2
USB 2.0 Type-A hub ports quantity	4
Power source	DC
Power consumption (typical)	0.72 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80 %
HD type	WUXGA
Scan interval	3, 5, 10, 20 s
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Product color	Black
Rack mounting	No
Housing material	Plastic
Master (outer) case width	395 mm
Master (outer) case height	182 mm
Master (outer) case length	405 mm
Master (outer) case weight	6130 g
Harmonized System (HS) code	85176200
Master (outer) case net weight	4090 g
Quantity per master (outer) case	10 pc(s)
Package depth	163 mm
Package width	70 mm
Package height	235 mm
Package weight	550 g

Weight and Dimensions

Depth	66.5 mm
Width	82.4 mm
Height	25.2 mm
Weight	409 g
