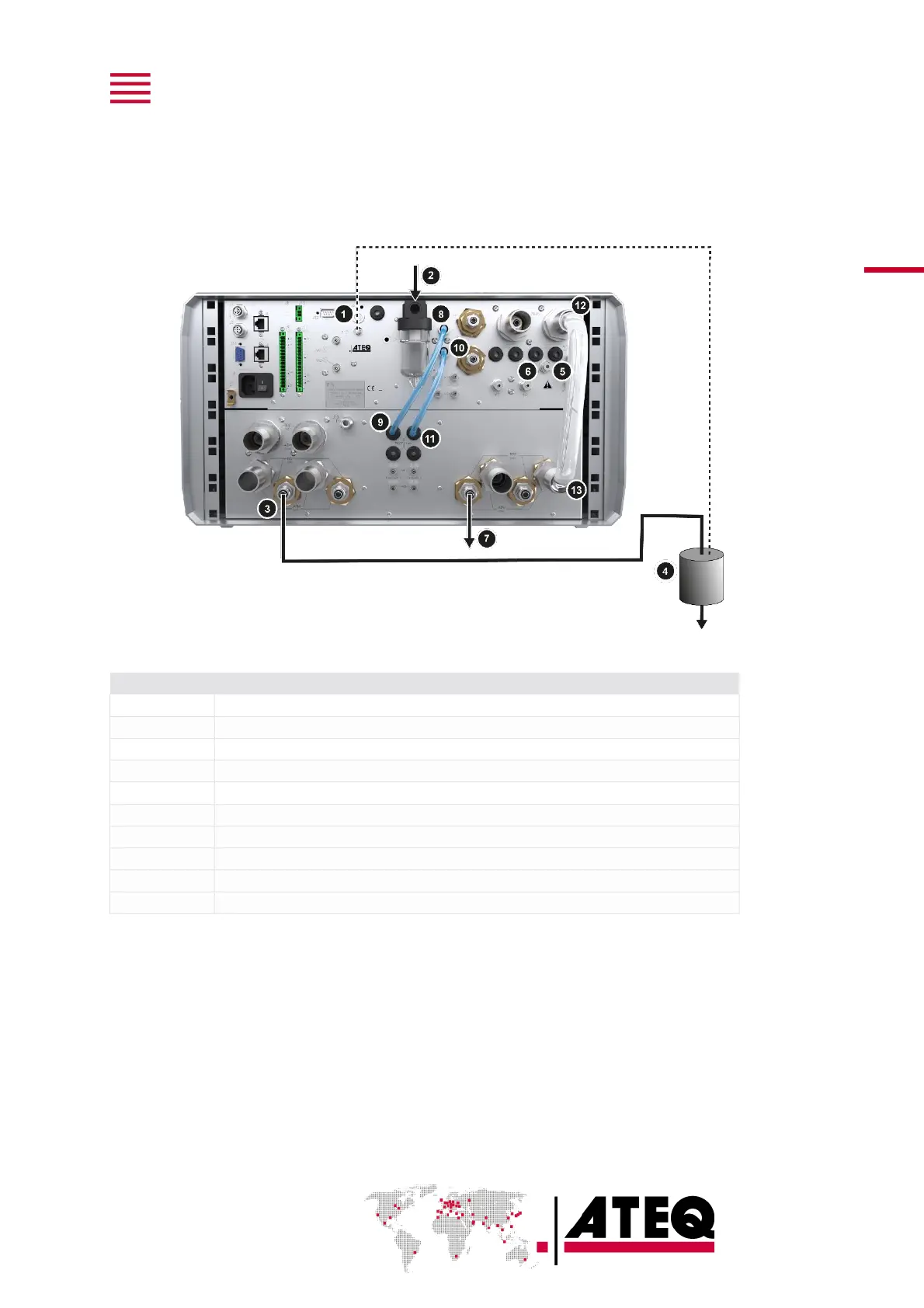

Direct mode – With Shut Off and Dump Options - until 0.5
MPa – 6U case
This configuration is used for direct mode at medium pressure range.
Connection
Option / description
Air supply to 2
Connection of the air supply to the filter input (0.6 MPa)
3 to 4
Connection of the test output to the part under test (direct mode option)
4 to ATM
Connection of the part under test to the atmosphere
4 to 1
Connection of the part to test to P connector (external back pressure option)
5 to ATM
Connector left free to the atmosphere
6 to ATM
Connector left free to the atmosphere
7 to ATM
Exhaust of the part under test, connector left free to atmosphere
8 to 9
Shut Off pilot
10 to 11
Dump pilot
12 to 13
Output capillary to internal shut off valve
