ATEQ F620 - Pre-Fill Type

Sheet #608u – Pre-fill and fill types
Version 1.04a User guide ATEQ 6th series Page 1/4
PRE-FILL AND FILL TYPES
1. PRE-FILL TYPE
The pre-fill function is used in three fields of application:
¾large volume part test: to fill the part faster in order to reduce the cycle time (without pre-
fill time),
¾test on parts requiring an initial stretch so that they remain volumetrically stable for the
duration of the test,
¾
part proof tests, where the pre-fill
pressure exerts an elevated pressure on the test part to
ensure the part will continue to operate successfully at its working pressure.

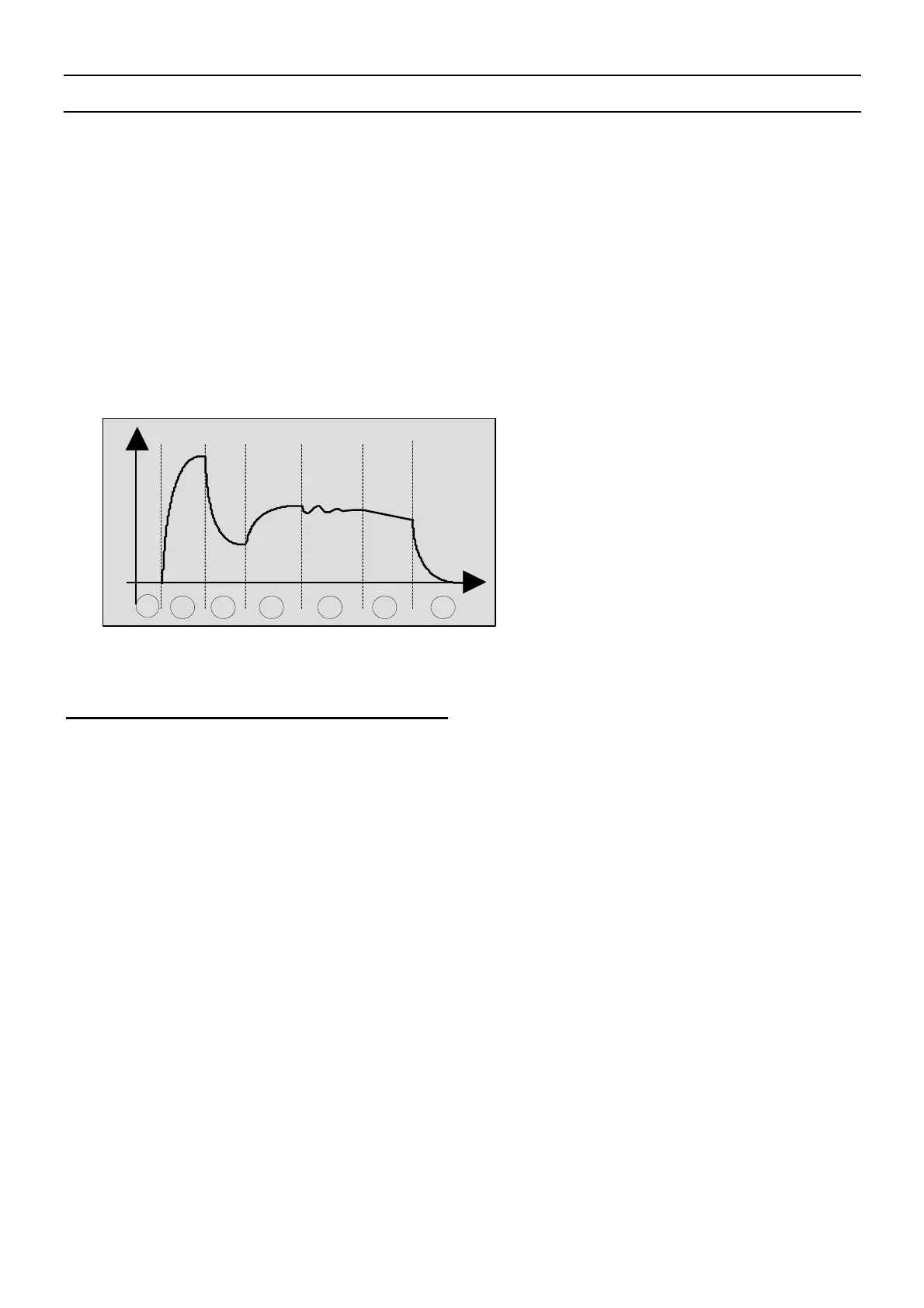

Insertion of the pre-fill and pre-dum
p times in the measurement cycle.
TEST
PRESSURE
TIME
12
34 5 6 7
1) Coupling time,
2) Pre-fill,
3) Pre-dump,
4) Fill,
5) Stabilization,
6) Test,
7) Dump.
This function brings up the display of the words “Regulator Adjust” under “Spe. Cycle” so that
the new pressure can be set.
There are several types of pre-fill available:
1.1. STANDARD (BY DEFAULT)
Associated parameters to be set:
¾Max Pre-FILL (maximum pre-fill pressure limit),
¾C. P-FILL (pre-fill pressure instruction).
¾Pre-FILL (pre-fill time),
¾Pre-DUMP (pre-dump
time).
1.2. I
NSTRUCTION
When the pressure reaches the instruction the device runs the following step else it still filling
until the end of the pre-fill time.
Associated parameters to set:
¾Set Pre-Fill (instruction/target value),
¾Pre-FILL (pre-fill time),
¾Pre-DUMP (pre-dump time).
