Atlantic Duolix Max - Appendices; Managing an External Night Cooling Device

18
6. APPENDICES
6.1. Managing an external night cooling device
6.1.1. Operating description
The Duolix MAX offers the option of controlling a device that assists with night cooling.
This consists of either:
• an external fan on a dedicated network
• and/or one or more valves on the existing ventilation network to assist with air injection and the
extraction at a particular location in the house.
(Refer to the diagram for the various examples -contact Atlantic)
6.1.2. External night cooling wiring kit
Connector kit part no: 412093
Example of adapted valve: RM 125
Example of fan: VCM EASY (part no.: 123 164)
VCM 160 AXP (part no.: 123 084)
VCM 200 AXR (part no.: 533 020).
Max. power of the external night cooling device: 100 W with a min. 0.9 phi cos

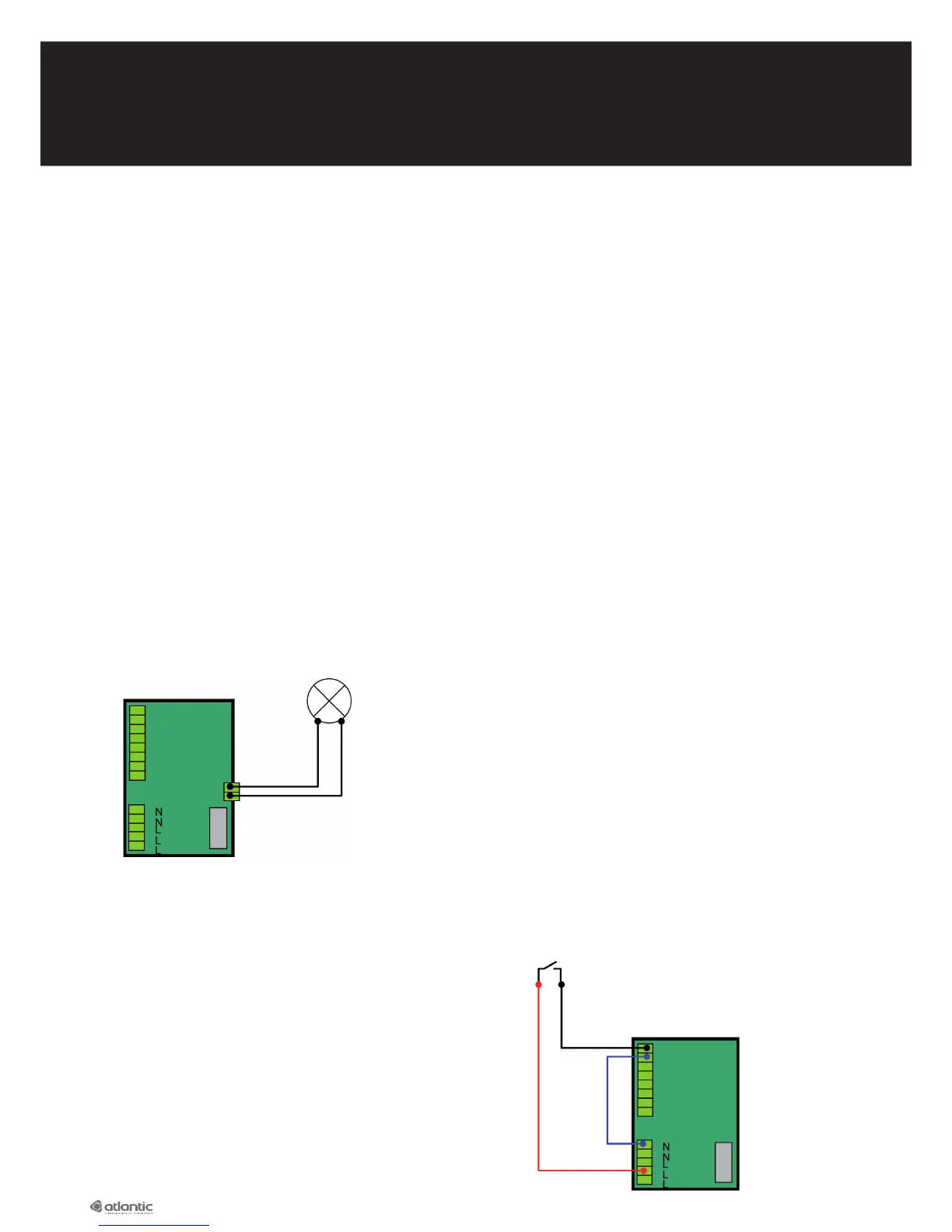

Connect the component (phase and neutral 230 VAC)
with the connection kit to the OUT4 terminals.
6.2. Option to control the night cooling via a remote switch
The Duolix MAX provides the option of controlling the night cooling (either internally or externally) by
the mobile control, of course, but also a wired remote switch (usually in the bathroom).
6.2.1. Night cooling remote control wiring
Connector kit part no: 412 093
Connect a switch to the connector kit on the
«IN1A» and «IN1B» terminals as the following
diagram illustrates:
The device’s wiring activates when
night cooling is activated.
100 W max.
Duolix MAX
circuit board
Remote switch actuating
the night cooling
Duolix MAX
circuit board
