2.4. Technical specifications
Max. flow 300 m3/h under 100 Pa.
Electrical specifications:
• Certified electrical power: 24.1 to 70.5 W-Th-C.
• Max. 200 W consumption for the two fans (maximum current = 1 A)
• In the case of optional output wiring: max. consumption of 100 W
(maximum additional current = 0.5 A)
3. INSTALLING/ASSEMBLING THE PRODUCT
3.1. Place of installation
Installation in a living area in a laundry room or cellar.

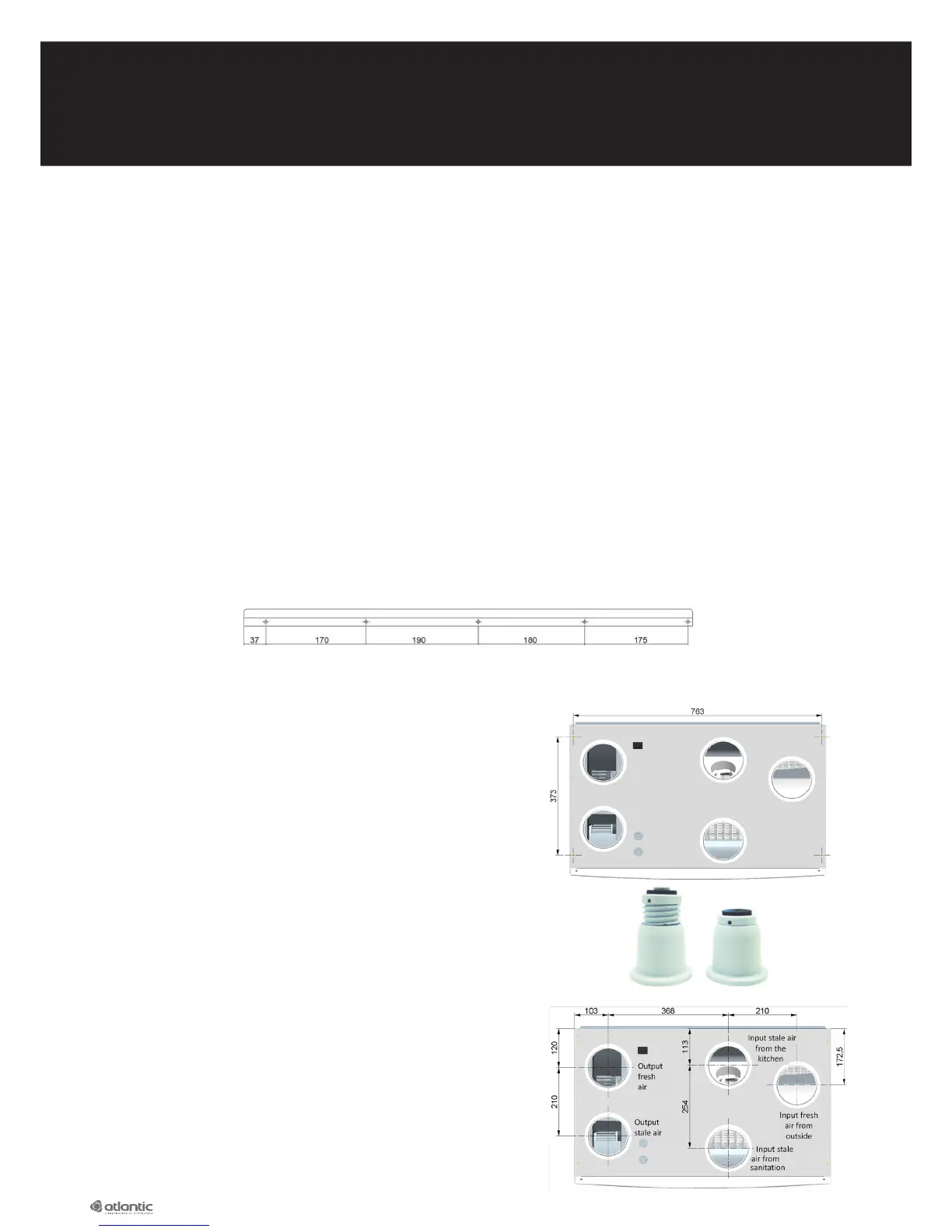

3.2. Assembly on concrete wall
Mount the strip on the wall ensuring it is horizontal.
Each mounting hole on the wall mount profile must have a wall plug so that the
permissible load can reach 120 kg.
Hook the product on to the strip.
3.3. Suspended assembly
Mount 4 vertical struts (threaded rod and M5 plug so
that that the permissible load may reach 120 kg) in the
designated places on the front of the product.
Hang the product on the ceiling using these 4 struts,
ensuring it is horizontal.
3.4. Product fitted to the ground
Use the 4 optional feet (feet part no.: 809 538) supplied
with the accessories.
Screw in the feet under the product using the 4 M8 screws supplied.
Place the product on the ground ensuring it is horizontal.
3.5. Air pipe connections & associated terminals
There are five tappings on the product - see the air pipe
connection diagram opposite.
It is preferable to install the network in the living spaces
Ensure that insulated pipes are used and comply with the
requirement for 50 mm rock wall
