Recommendations concerning putting into service:
Each main part should include an air vent so that the ventilation by sweeping principle can be
adhered to. Network balancing shall be taken care of by a sizing study
The coupling of the fan unit to a ground-connected heat exchanger requires a sizing study to
be performed beforehand.
3.6. Installation/accessory precautions

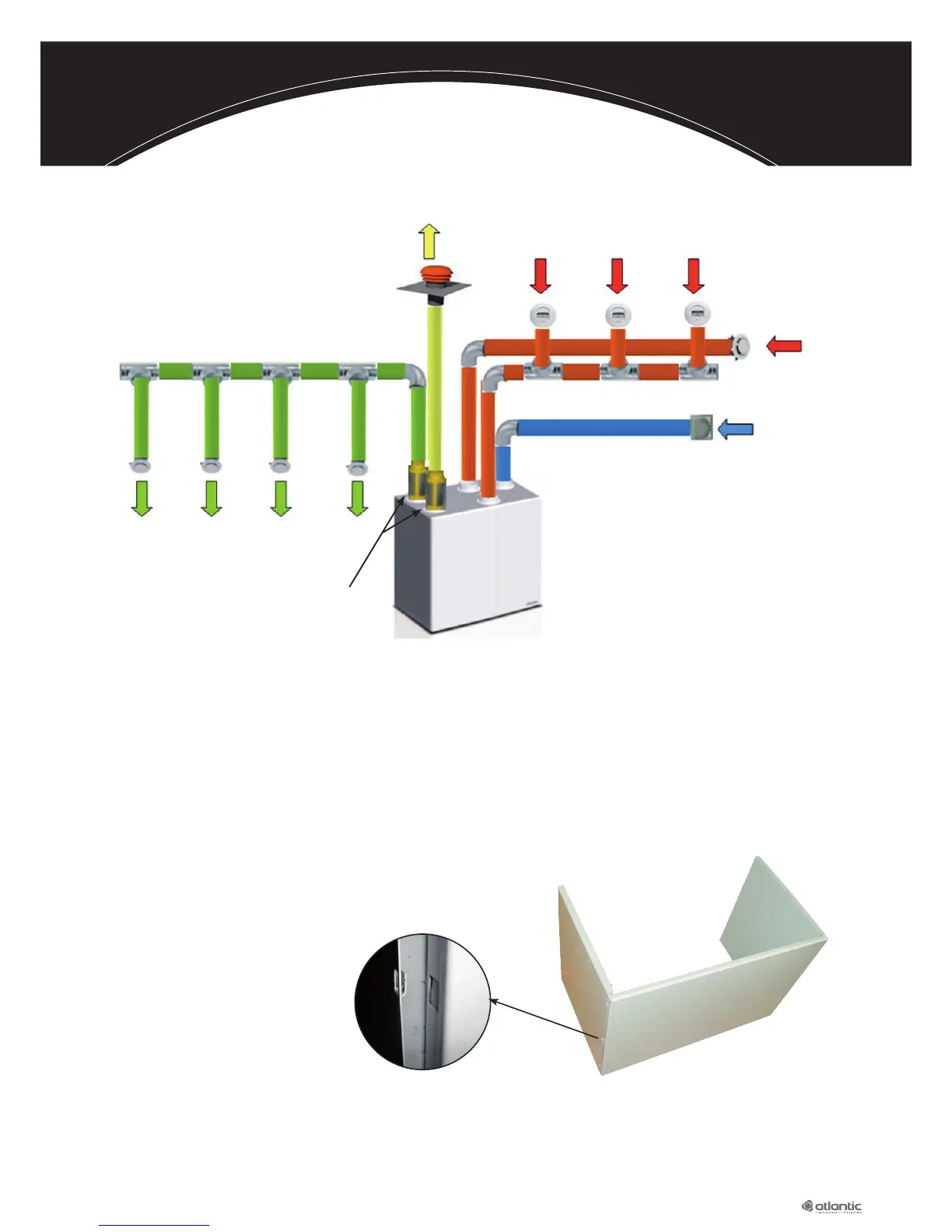

Mounting the duct cover:
• Allow 500 mm between the ceiling and the top of the device).
• The duct cover is in three sections.
• Attach each section to the other using the lugs designed for this purpose.
• Position the front panel on top of the Duolix MAX,
with the sides apart and then clip them onto
the designated hooks.
CAUTION:
Check that no rubble or other foreign bodies risk damaging the fans once they are switched on.
This product includes two fans.
Take the necessary precautions to ensure the correct installation of the product and its network in
order to avoid any noise disturbance
Option to install silencers at the product’s outlet (PAS 125 DF part no.: 422 535).
!
Roof cap CPR 125 part no.:
422 563 (red)
or 433 564 (slate)
Domestic water outlets
PB 80 A 30 PN part no. 422 492
or PB 80 A 15 PN part no.: 422 494
Blower outlets
PB 80 R part no. 422 248
Silencers
PAS 125 DF part no.: 422 535
Grid ME 125
part no.: 543 191
Kitchen outlet
GB 125 NP
part no. 422 152
