3.7. Condensation connections
Clip the condensation union under the product (supplied).
Connect the waste pipe (not supplied) to the drain.
Fill the siphon and immerse the waste pipe to prevent suction noises.
Use a transparent siphon, if possible, so that the water level can be checked.
The siphon should always be filled.

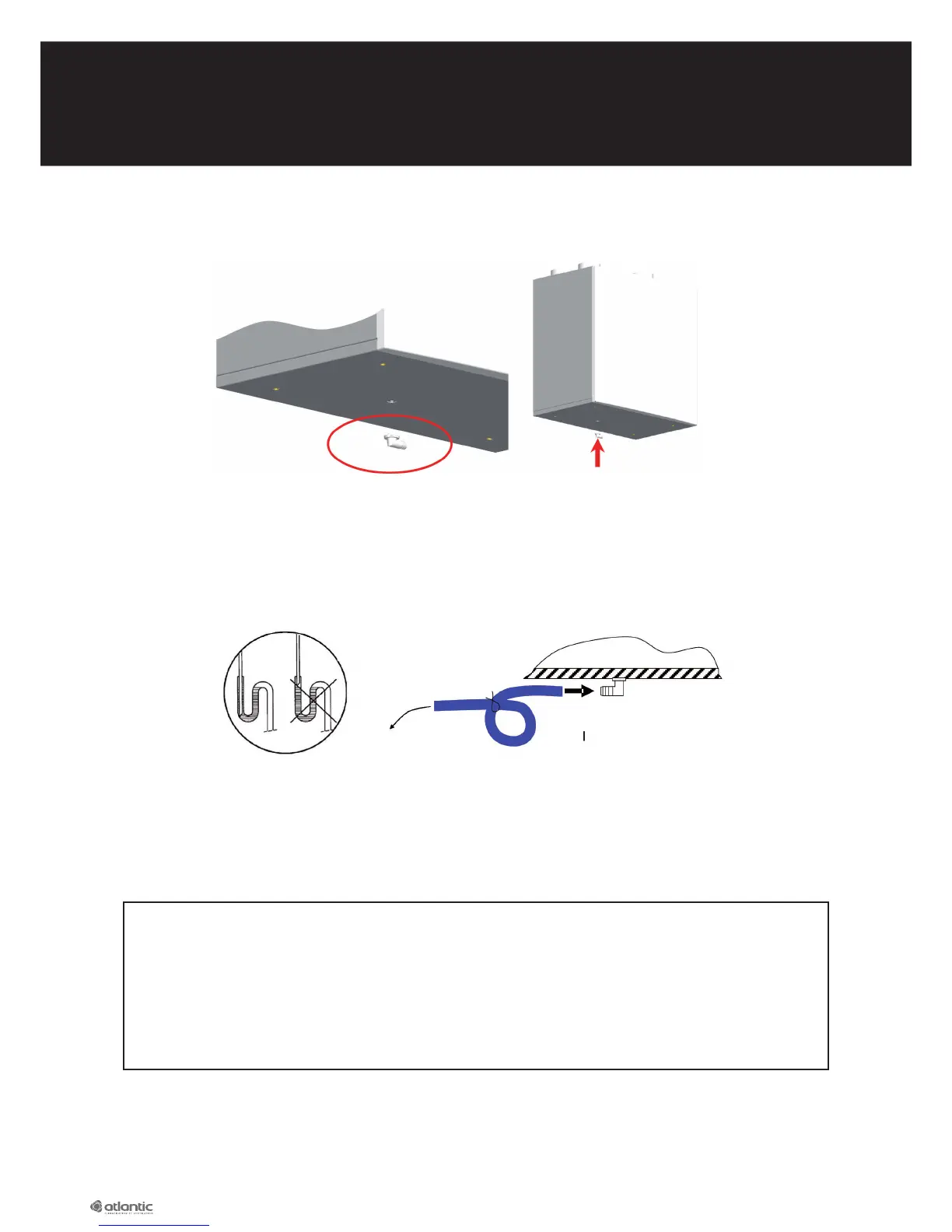

Example of drain connections:
4. ELECTRICAL CONNECTION
CAUTION:
BEFORE STARTING ANY OPERATION REQUIRING THE REMOVAL OF THE TERMINAL ACCESS PANEL,
DISCONNECT THE DEVICE FROM THE MAINS BY SWITCHING THE BI-POLAR CIRCUIT BREAKER AND
ENSURING THAT THE SUPPLY CANNOT BE RESTORED ACCIDENTALLY
THIS EQUIPMENT MUST BE INSTALLED BY PERSONS WITH THE APPROPRIATE QUALIFICATIONS.
THE INSTALLATION SHOULD COMPLY WITH STANDARD NF C15-100 AND GOOD PROFESSIONAL PRACTICE.
EACH PRODUCT OR COMPONENT INVOLVED IN INSTALLATION MUST ALSO BE COMPLIANT WITH THE
APPLICABLE STANDARDS.
If the supply cable or another conductor is damaged, it must be replaced by the manufacturer, its
after-sales service or persons with similar qualifications in order to avoid danger.
Drain pipe Ø 19 CO 16/20
part no.: 809 627
Condensation drainer to clip
under the product
To the drain
!
