4.1. Upstream connection
Protection of the device against upstream short-circuits with contacts opening a minimum of 3 mm,
2.5 A maximum rating bi-polar circuit breaker and circuit protected by 30 mA max. differential
circuit breaker.
4.2. Electrical connection of the product
To connect the product to the 230 VAC electrical supply, it does not need to be opened.
The Duolix MAX is a class I device and must be connected to earth.
Supply with a 1.5 mm² rigid, dual-insulation cable or 1.5 mm² wires under an annealed sleeve with a
maximum diameter of: 16 mm held in position by a tear protection compliant with standard NF C15-
100 and good practice.
The cable temperature resistance to be used for this connection should be at least 90°C.
Strip the conductors back 5 to 6 mm in order not to risk them coming into contact with other wires
The earth wire (green yellow) should be longer than the other conductors (approx. 5 to 10 mm).
The wires should not be tightened on the insulator.

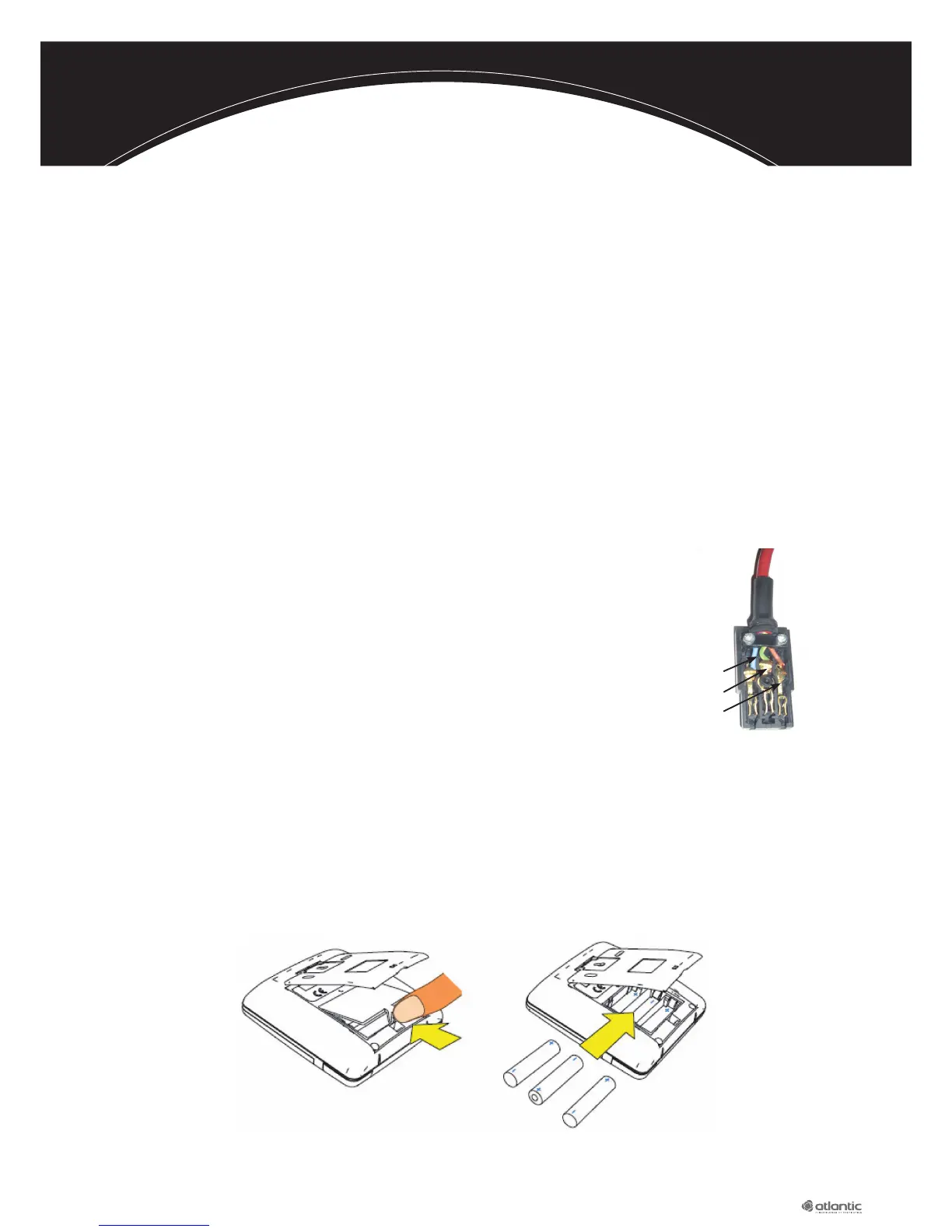

The product is equipped with a 2P plug and earth.
- Open the plug
- Connect Phase, Earth and Neutral in the plug
- Close the plug
- Connect the plug to the product
5. SETTING UP THE MAX DUOLIX
CAUTION: To set up the unit, switch on the device
5.1. Inserting the batteries into the control
The unit should be electrically connected and supplied before switching on the control for the first time.
Insert three 1.5 V alkaline batteries (AAA LR03 type) in the direction indicated.
!
Single-phase supply
230 VAC + Earth
Neutral
Earth
Phase
