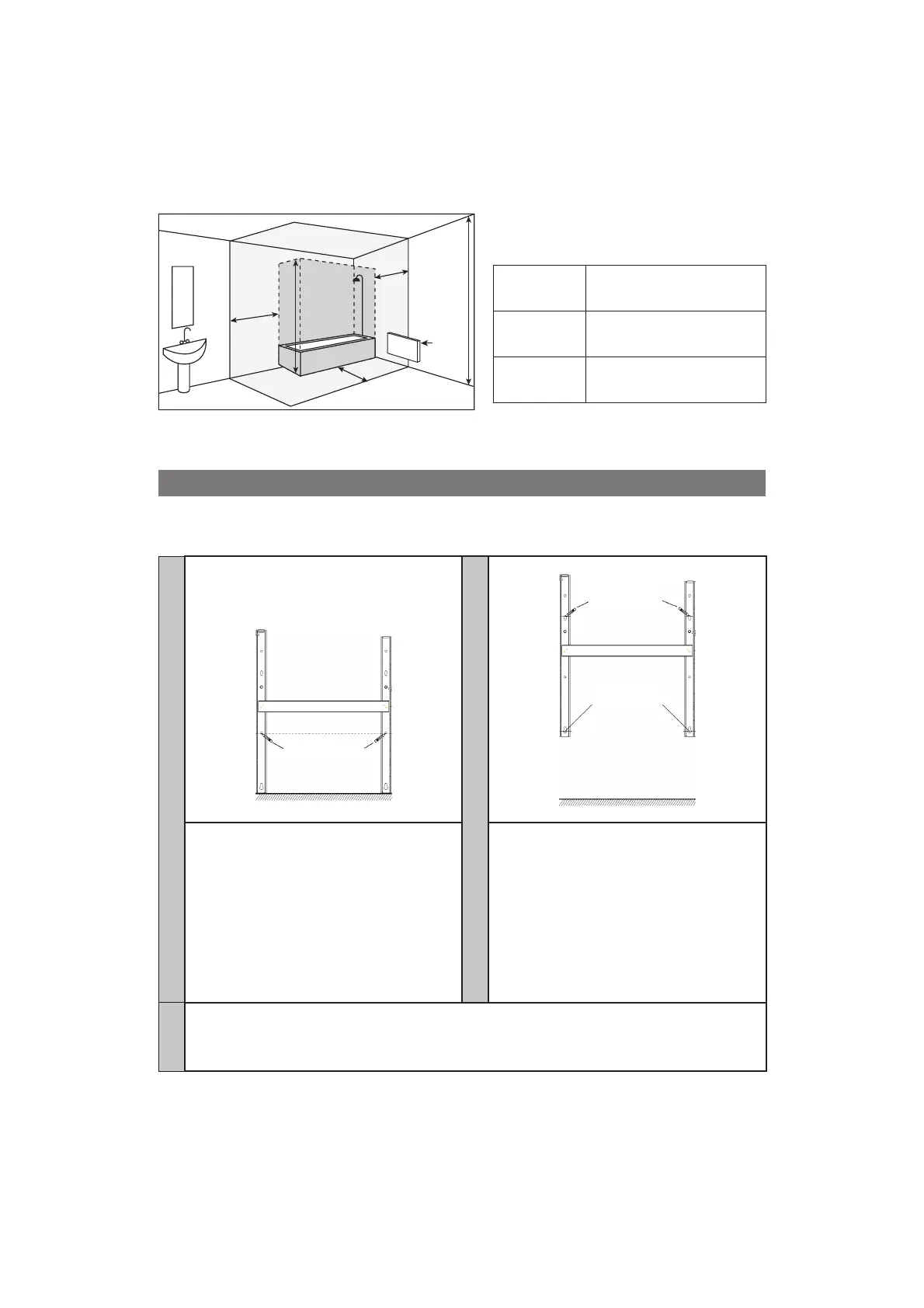

24
60 cm
60 cm
3 m
Volume
1
Volume
2
Volume
3
60 cm
Control
box
2,25 m
Volume 1
No electrical
equipment
Volume 2
Electrical equipment
Class II – IPX4
Volume 3
Electrical equipment
Class II
FIX THE WALL BRACKET TO THE WALL
Horizontal Model
1
Drilling
points A
2
Drilling
points B
Drilling
points A
Fix the wall bracket to the floor
and against the wall. Identify the
drilling points A. These give the
position of the lower fixings.
Move the wall support up,
causing the points previously
identified with the drilling holes
A to coincide.
Mark the 2 drilling points B
using a ball point pen. You have
thus identified the 4 drilling
points.
3
Drill the 4 holes and put appropriate raw plugs in your wall (e.g.
plaster board, concrete). Position the bracket and screw it in.
