Description

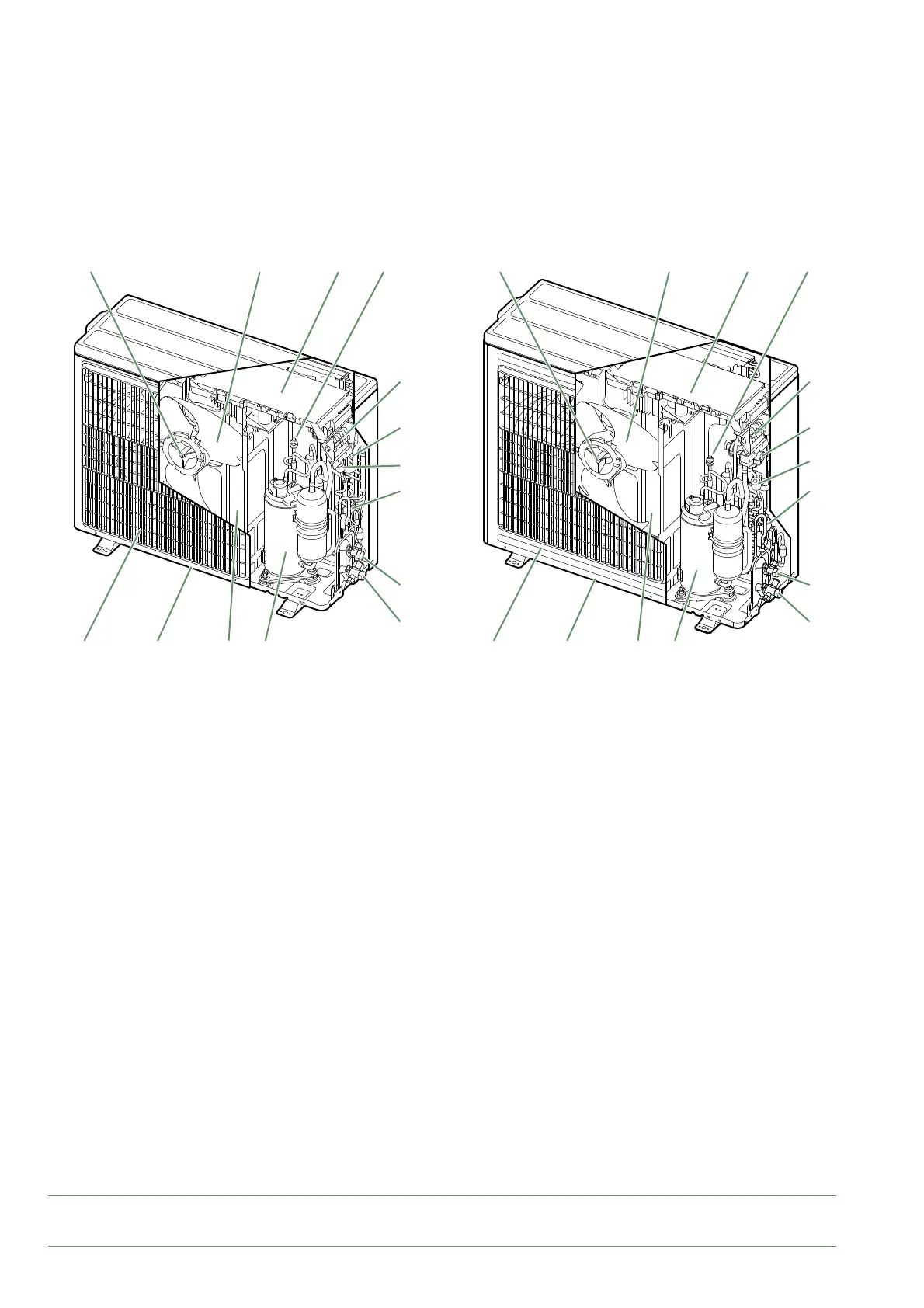

fi g. 7 - Outdoor unit components
Key :
1. High performance and low noise impeller.
2. Electrical motor with variable "Inverter" operation.
3. "Inverter" control unit.
4. Connection terminal blocks
(power supply and interconnection).
6. 4-way valve.
7. Anti-corrosion treated bodywork.
8. Main circuit electronic expansion valve.
9. Noise and thermally insulated "Inverter" compressor.
10. Refrigeration connection valves (fl ared connectors) with
protective caps (a: liquid; b: gas).
11. Holding tank with condensate drain hole.
12. High-performance exchange surface evaporator; anti-
corrosion treated hydrophilic aluminium fi ns and grooved
copper tubes.
13. Pressure Switch.
14. Pressure sensor.
■ Outdoor unit Model 5 & 6 ■ Outdoor unit Model 8
213
4
6
8
10a
10b
912117
13
14
21313
4
6
8
14
10a
10b
912117
Alfea Extensa A.I. R32 / INSTALLATION / 2114 - EN
