- 34 -
►
Outdoor unit
Access to connection terminals:
• Models 5, 6 and 8
- Remove the cowl.
Avoid contact between cables and refrigeration
valves / connections.
Use cable clamps to prevent any power cables
from being disconnected accidentally.
Fill in the space where the cables enter the
outdoor unit with the insulating plate.

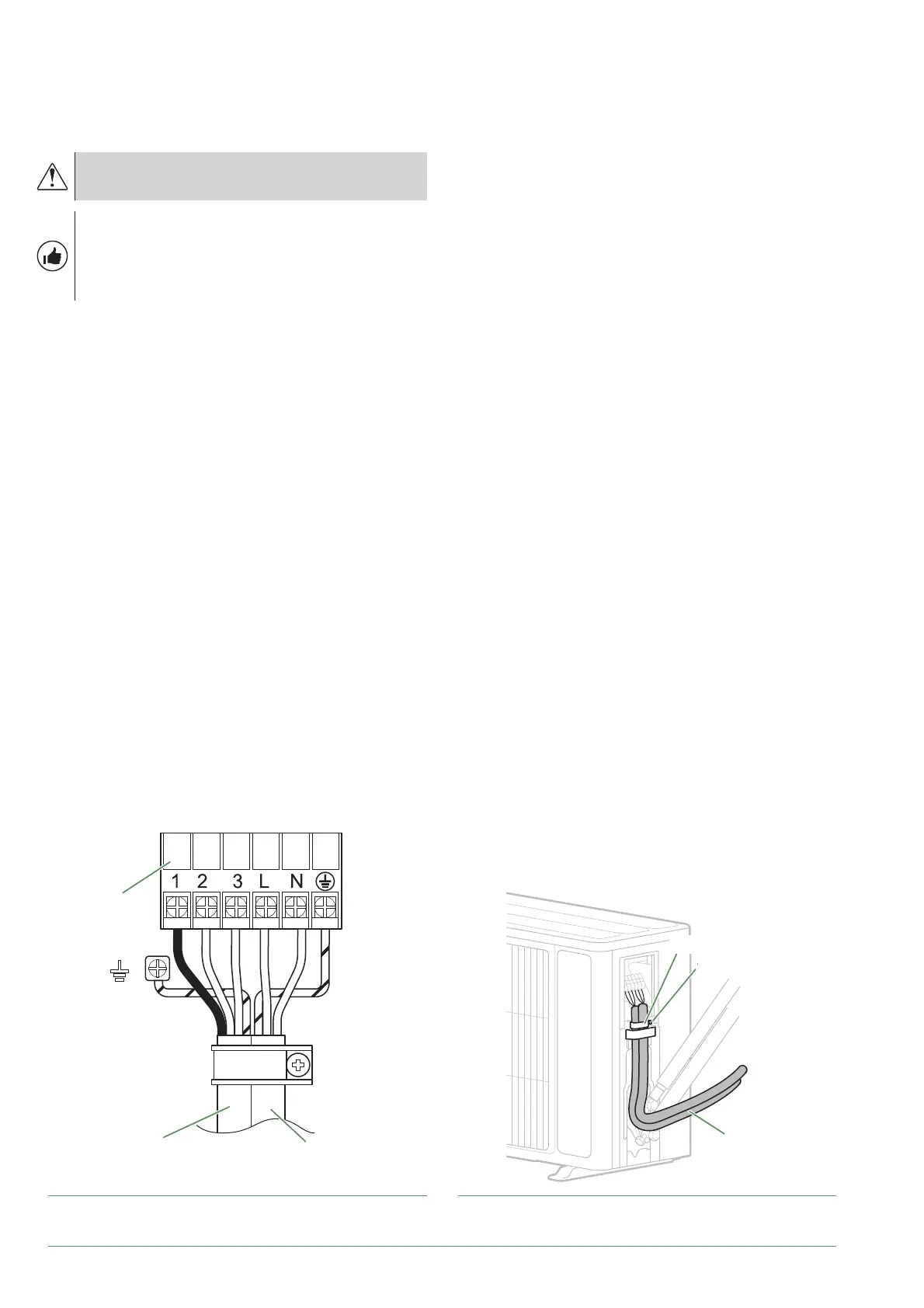

fi g. 33 - Connections to outdoor unit's terminal block fi g. 34 - Access to outdoor unit's terminal block
Serre-câble
Vis
Câbles
Cable clamp
Cable
Screws
Bornier
Interconnexion
entre unité extérieure
et module hydraulique
Câble d'alimentation
générale
General power cable
Interconnection
between outdoor unit
and hydraulic unit
■ Models 5, 6 and 8
Alfea Extensa A.I. R32 / INSTALLATION / 2114 - EN
