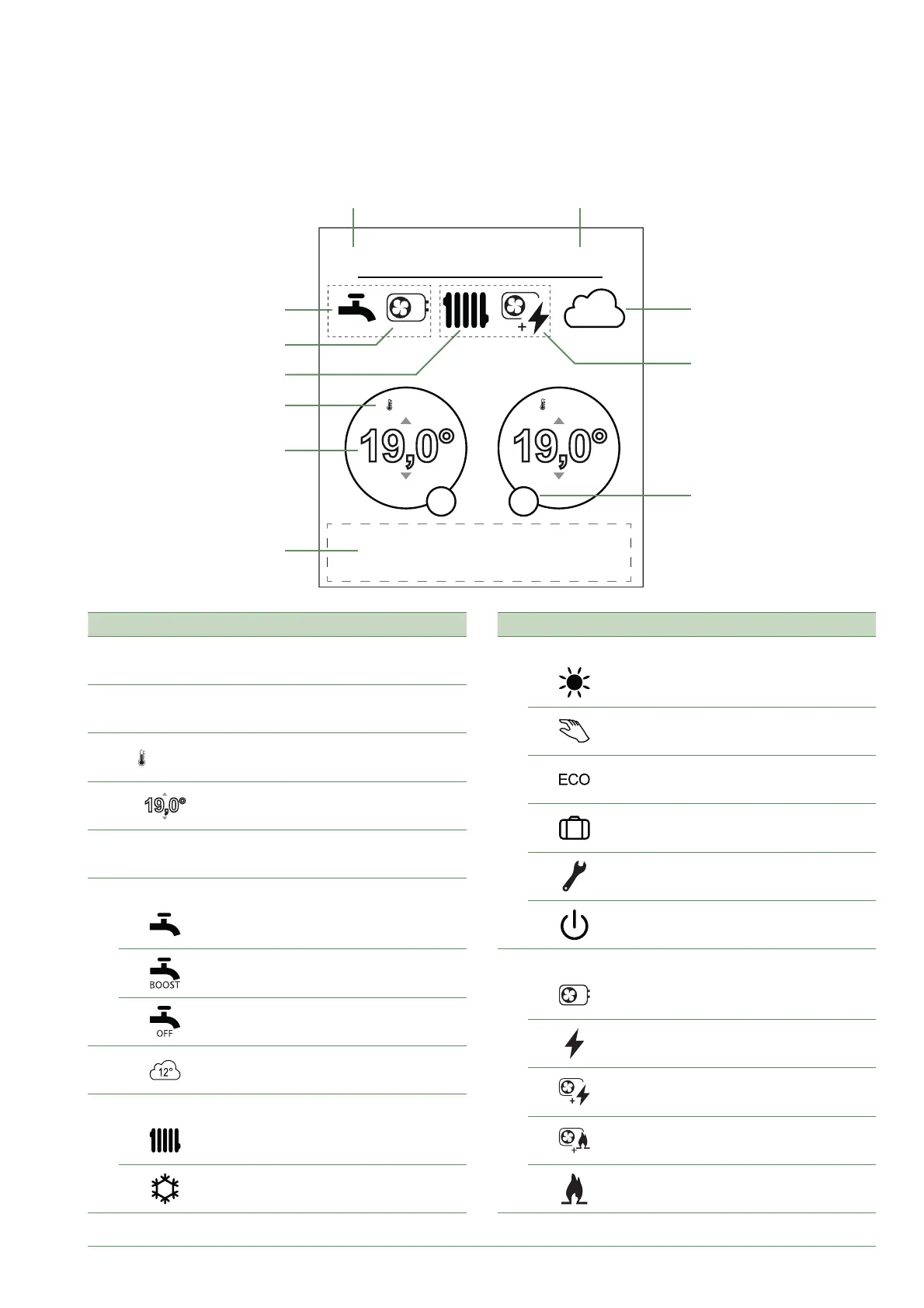

Display Description
Nr Symbols Defi nitions
1 15:23 Time
2
7 September 2017
Date
3
21
.5
Temperature
measured by the room sensor*
4
19,0°
Room temperature setpoint
5
Information (Area names, emergency mode,
test mode, error display, etc.)
6
Domestic Hot Water (DHW):
Activated
Boosting in progress
Deactivated
7
Temperature
measured by the outside sensor
8
Operation
Heating
Cooling*
15:23
12°
19,0°
19.5
ECO
19,0°
21.5
ECO
7
10
9
3
10
8
6
4
5
7 September 2017
Zone 1 Zone 2
12
Nr Symbols Defi nitions
9
Mode
Comfort
Manual (exemption)
ECO
Absence
Floor drying
Stop (except frost)
10
Production via ...
Heat Pump
Electrical backup
HP + electrical backup
HP + Fuel/Gas*
Fuel/Gas*
* Option
