Position of bypass ball valves
ER label
Attention: It is NOT allowed to use the ball valves at an in-between position!

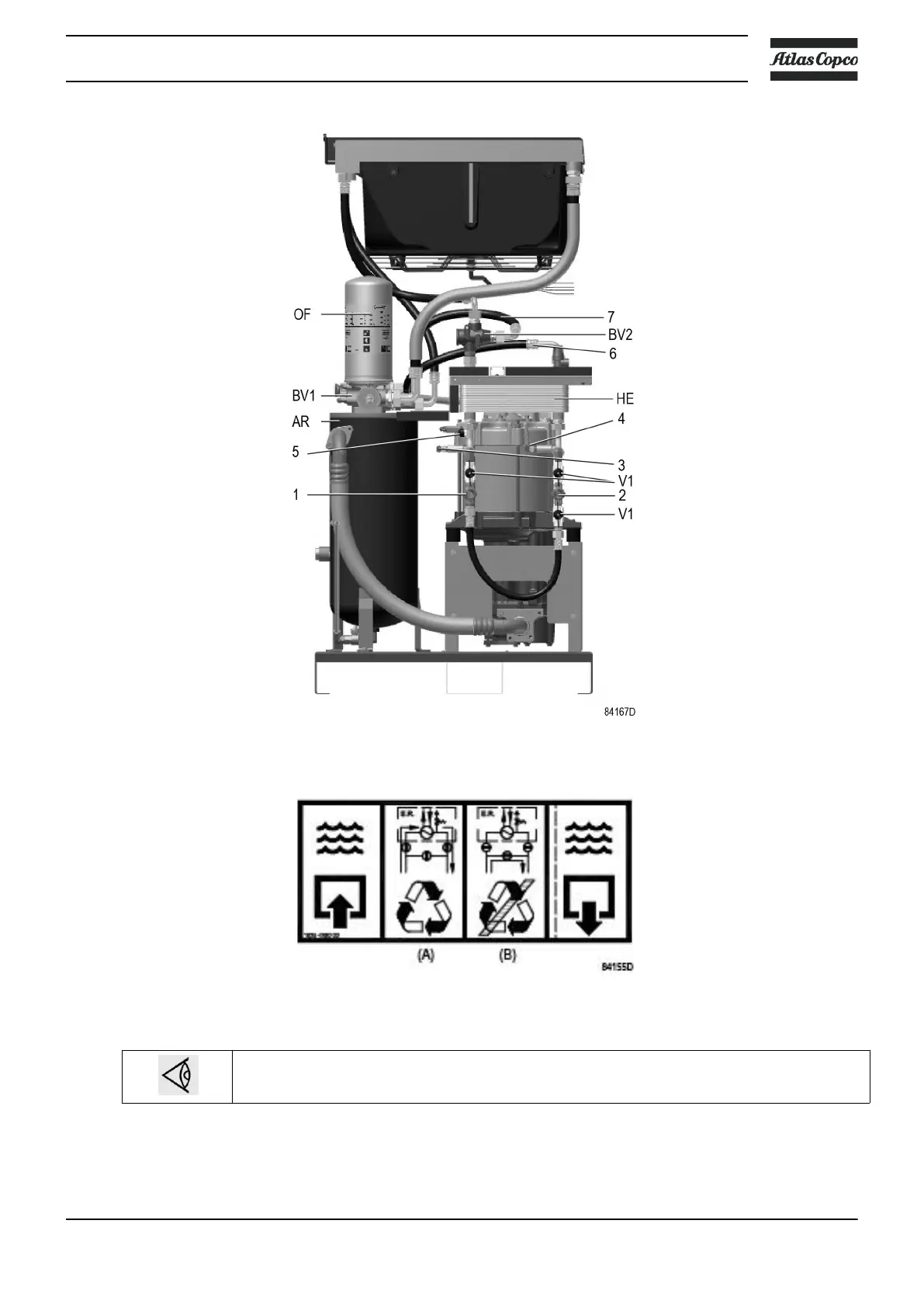

Energy recovery system in use (see drawing)
Bypass valves in position (A): the heat exchanger (HE) is integrated in the water side of the ER.
