7.4 Air filter

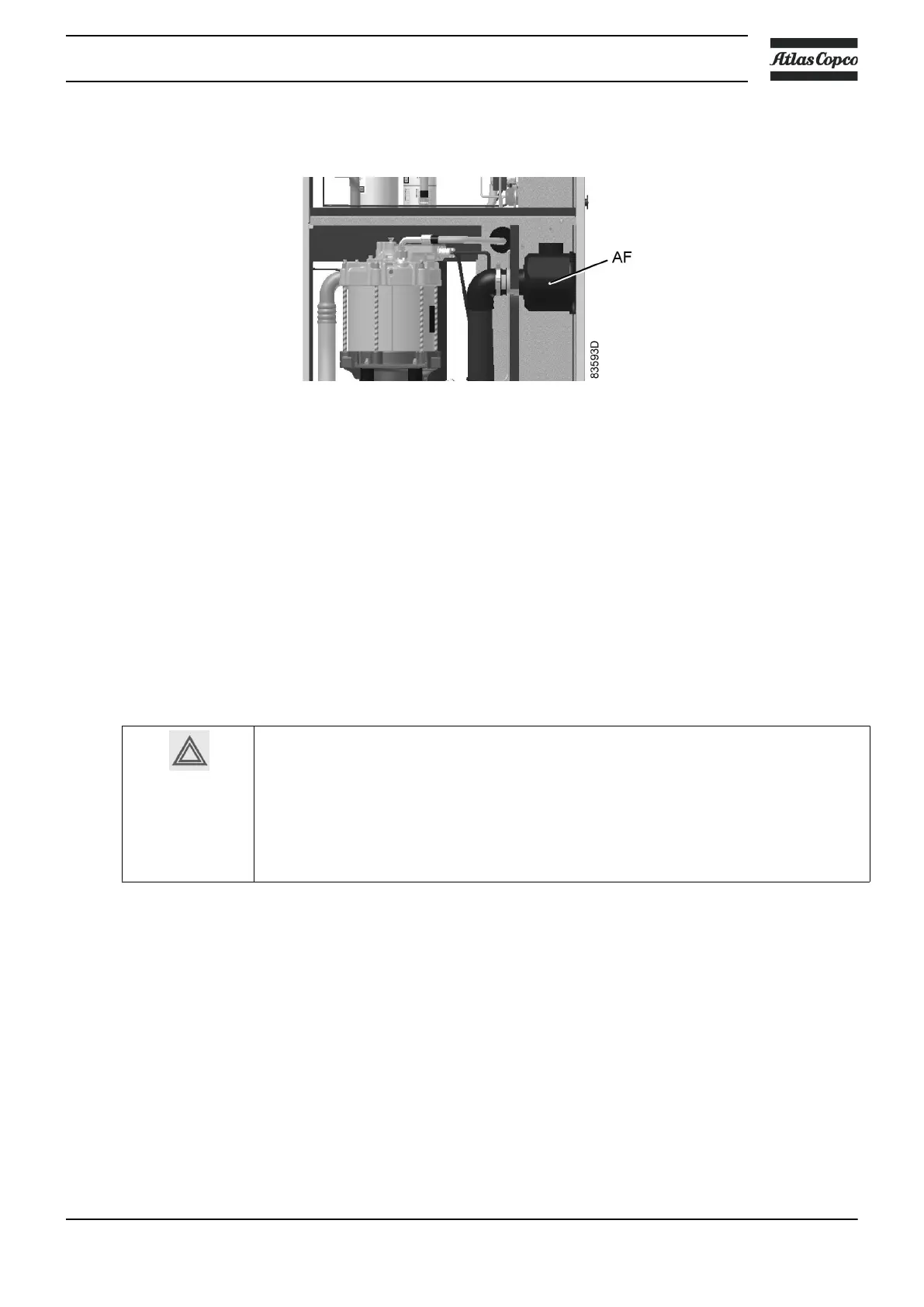

Location of air filter
Procedure
1. Stop the compressor. Switch off the voltage.
2. Remove the cover of the air filter (AF) by turning it anti clockwise. Remove the filter element.
3. Fit the new element and the cover.
4. Reset the air filter service warning.
7.5 Oil and oil filter change
Warning
The operator must apply all relevant Safety precautions.
Always drain the compressor oil at all drain points. Used oil left in the compressor can
contaminate the oil system and can shorten the lifetime of the new oil.
Never mix lubricants of different brands or types as they may not be compatible and the
oil mix will have inferior properties. A label, indicating the type of oil filled ex factory, is
stuck on the air receiver/oil tank.
If the compressor is equipped with an Energy Recovery unit, also consult Maintenance
for Energy Recovery Systems
Procedure
1. Run the compressor until warm and stop the compressor.
• Close the air outlet valve and switch off the voltage.
• Wait 3 minutes for the compressor to depressurise the vessel.
• Open the condensate drain valve to depressurise the cooler. (see condensate system)
and close again.
• Unscrew the oil filler plug (FC) just one turn to permit any remaining pressure in the
system to escape.
• Cover the duct of the heat sink on the electric cabinet.
2. Remove the vent plug (VP) of the oil cooler.
Instruction book
2920 7110 05 91
