Control panel Elektronikon
TM
Touch controller

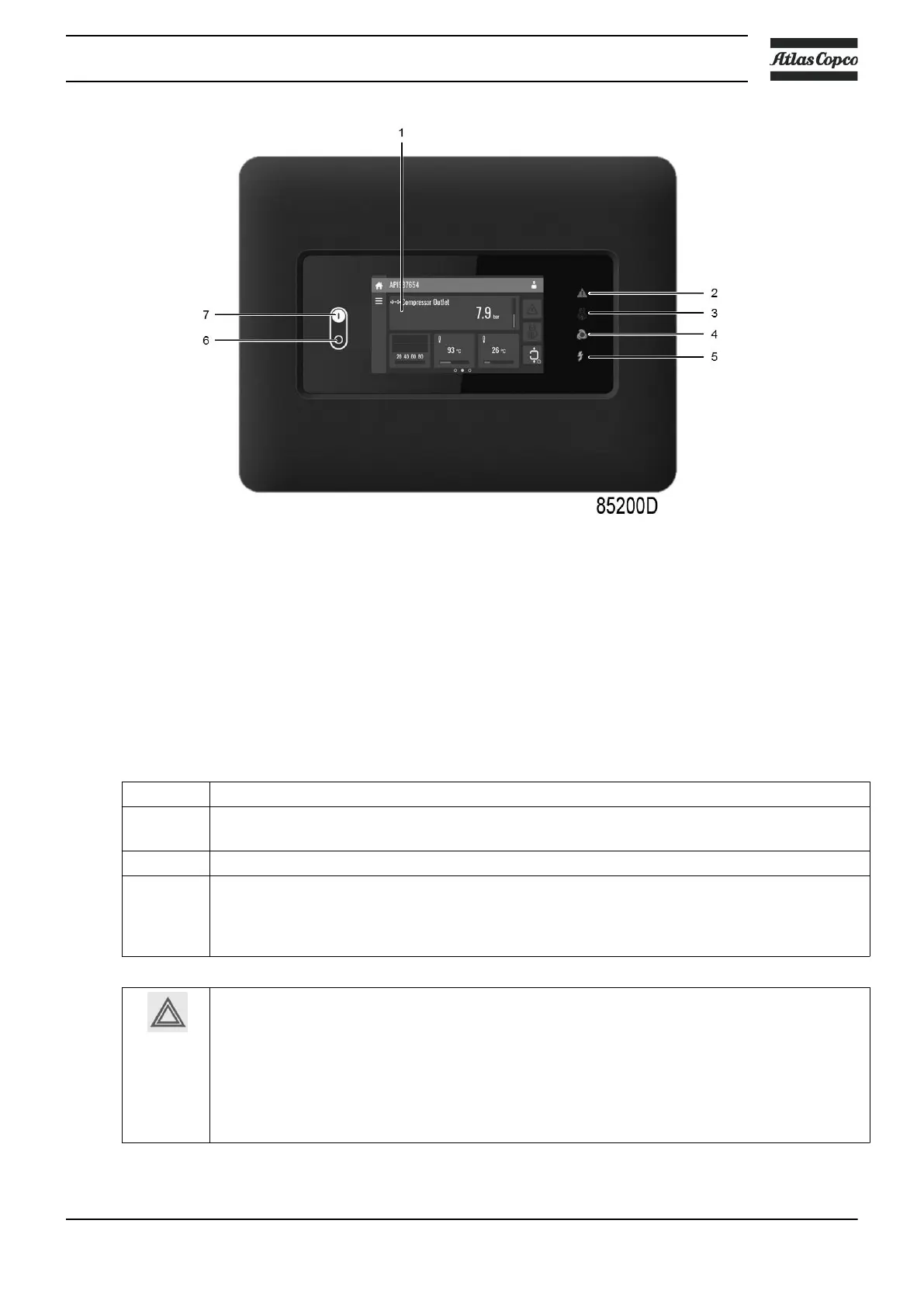

Check the display (1) regularly for readings and messages. The display normally shows the
compressor outlet pressure, while the status of the compressor is indicated by means of a
number of icons. Remedy the trouble if alarm LED (2) is lit or flashes, see section Icons used.
The display (1) will show a service message if a service plan interval has been exceeded or if a
service level for a monitored component has been exceeded. Carry out the service actions of the
indicated plans or replace the component and reset the relevant timer, see section Service menu.
Stopping
Step Action
1 Press stop button on the control panel. Automatic operation LED goes out and the compressor
stops.
2 Close the air outlet valve.
3 Press the test button on top of the electronic water drain(s) to the depressurize the piping
between air receiver and outlet valve, next open the manual drain valve (Dm). See section
Condensate system.
Switch off the voltage.
To stop the compressor in the event of an emergency, press emergency stop button.
Alarm LED flashes.
• Remedy the problem cause.
• Next, unlock the button by pulling it out.
• Next, navigate to the Stop icon on the display by means of the navigation keys (3/4) and
press the Select key.
Press Reset.
Do not use emergency stop button for normal stopping!
