3 Elektronikon II regulator
3.1
Elektronikon
®
II regulator

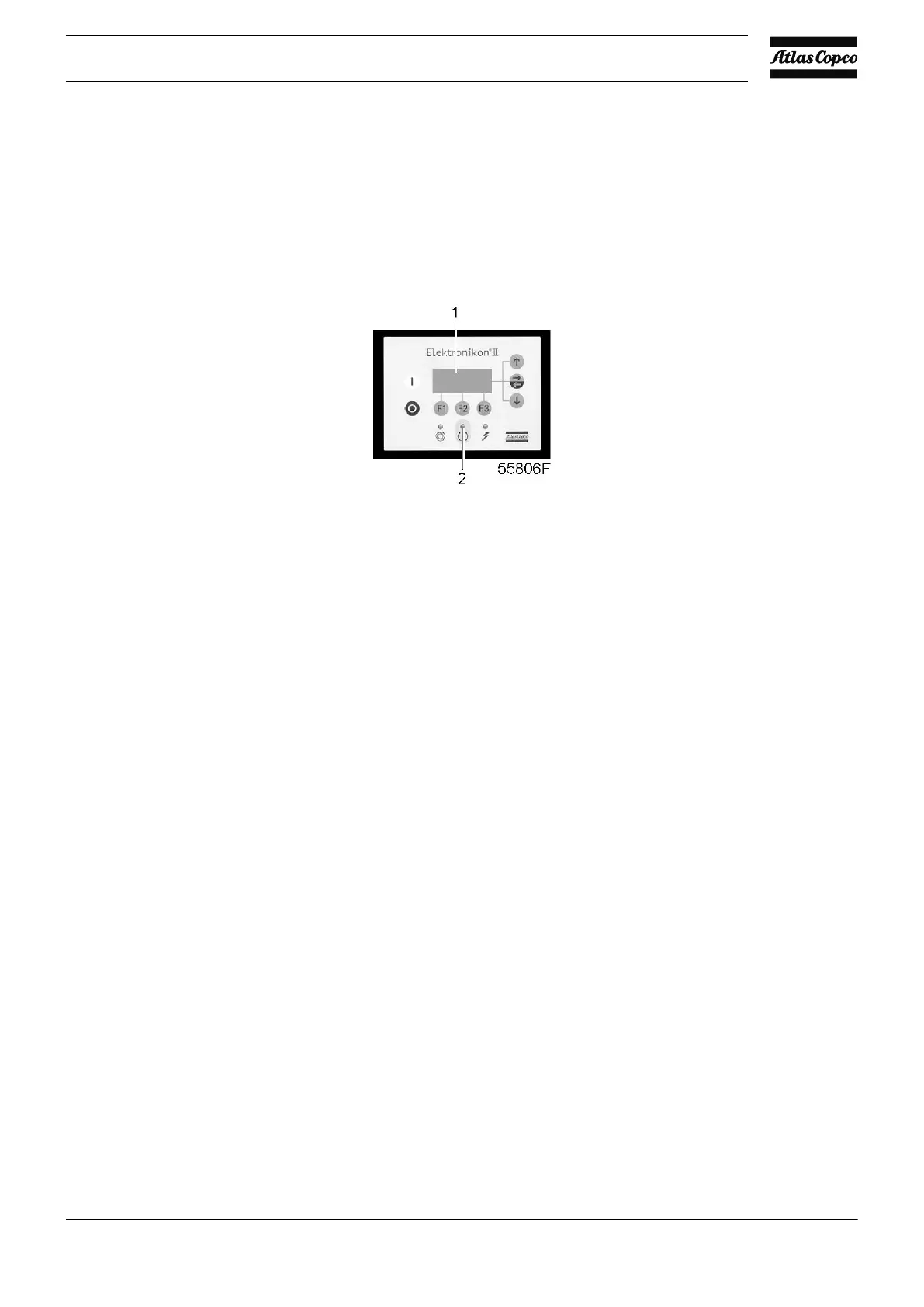

Control panel
General
The Elektronikon regulator controls the compressor:
• By matching the compressor output to the air consumption
• By stopping the compressor whenever necessary
• By restarting the compressor when required
In general, the Elektronikon regulator has following functions:
• Controlling the compressor
• Protecting the compressor
• Monitoring components subject to service
• Automatic restart after voltage failure (made inactive)
Controlling the compressor
The regulator matches the air output of the compressor to the air consumption by speed regulation of
the motor. The regulator takes into account a number of programmable settings, e.g:
• Net pressure set-point
• Indirect stop offset
• Direct stop offset
• Proportional band
• Integration time
• Minimum speed
• Minimum stop time
• Maximum speed limit
• Power recovery time (if activated)
The regulator stops the compressor whenever necessay:
• Indirect stop: i.e. the compressor runs at minimum speed and the net pressure rises to the indirect stop
level.
See section Programmable settings.
• Direct stop: i.e. the compressor runs at a speed between minimum and maximum and the net pressure rises
above the direct stop set-point.
Instruction book
2920 1634 04 25
