3.20 Programming clock function

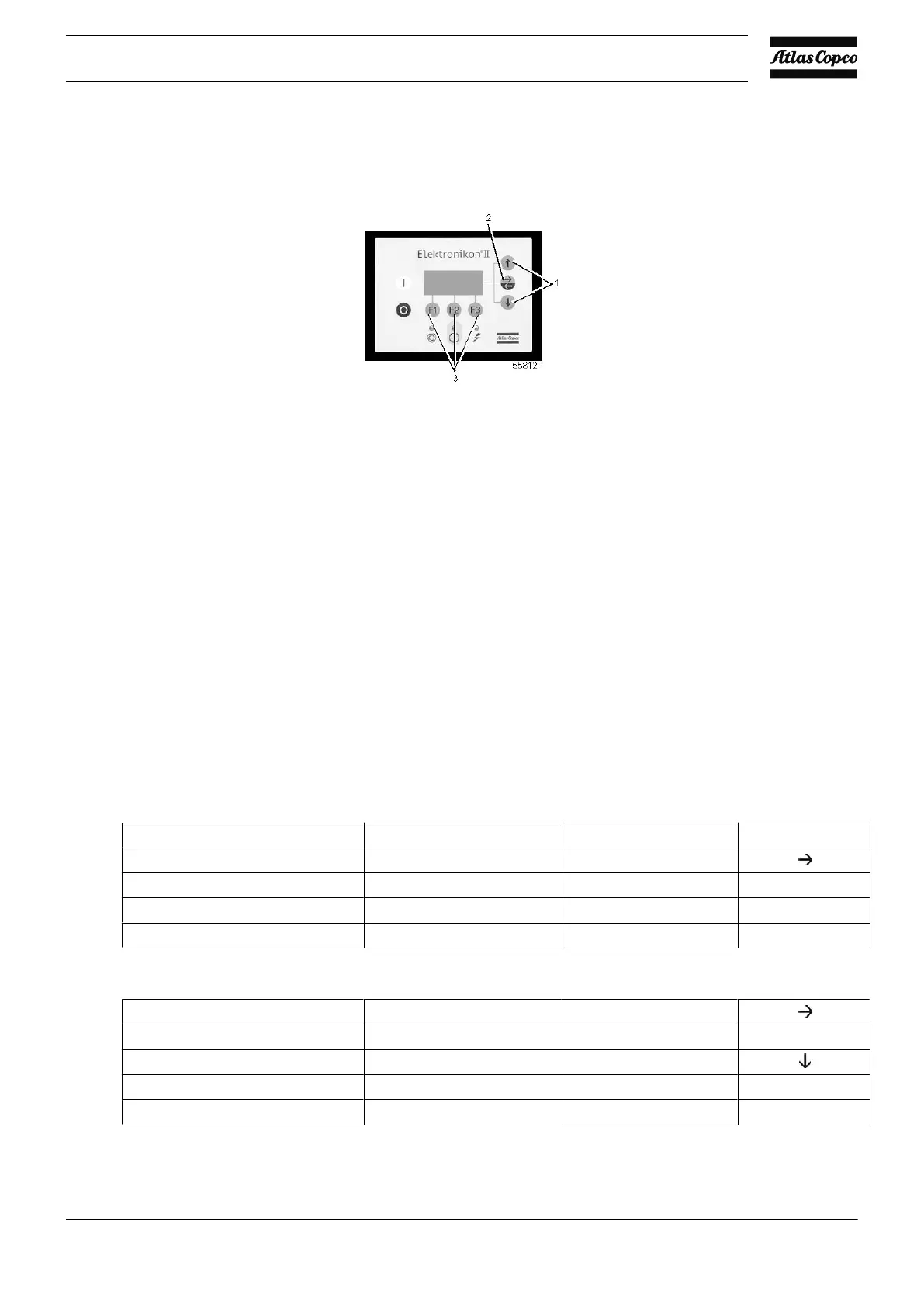

Control panel
Function
To program:
• Time-based start/stop commands for the compressor
• Time-based change-over commands for the setpoint
Programming start, stop and setpoint commands
In this example, the compressor will be programmed as follows:
• On Monday at 06:15 starting with setpoint 1
• On Friday at 18:00 changing over to setpoint 2
• On Saturday at 18:00 stopping
Starting from the Main screen (see Main screen menu):
• Press the key ‘Menu’ (F1).
• Press the arrow down key (1) until ‘Modify Params’ is followed by a horizontal arrow.
• Activate the menu by pressing tabulator key (2).
• Use the arrow down key (1) to scroll until the option ‘Clock Function’ is followed by a horizontal arrow.
• Activate the menu by pressing tabulator key (2); the following screen appears:
‘Clock Function’
‘Not Activated’
.
‘Menu’ ‘Mod.’ ‘Del.’
F1 F2 F3
• Press the tabulator key (2), the following screen appears:
‘Monday’
‘Tuesday’
‘Wednesday’
‘Menu’ ‘Mod.’ ‘Del.’
F1 F2 F3
• Use the scroll keys (1) until the day on which a command must be programmed is followed by a horizontal
arrow. Press the tabulator key (2); the following screen appears:
Instruction book
2920 1634 04 45
