Operating instructions

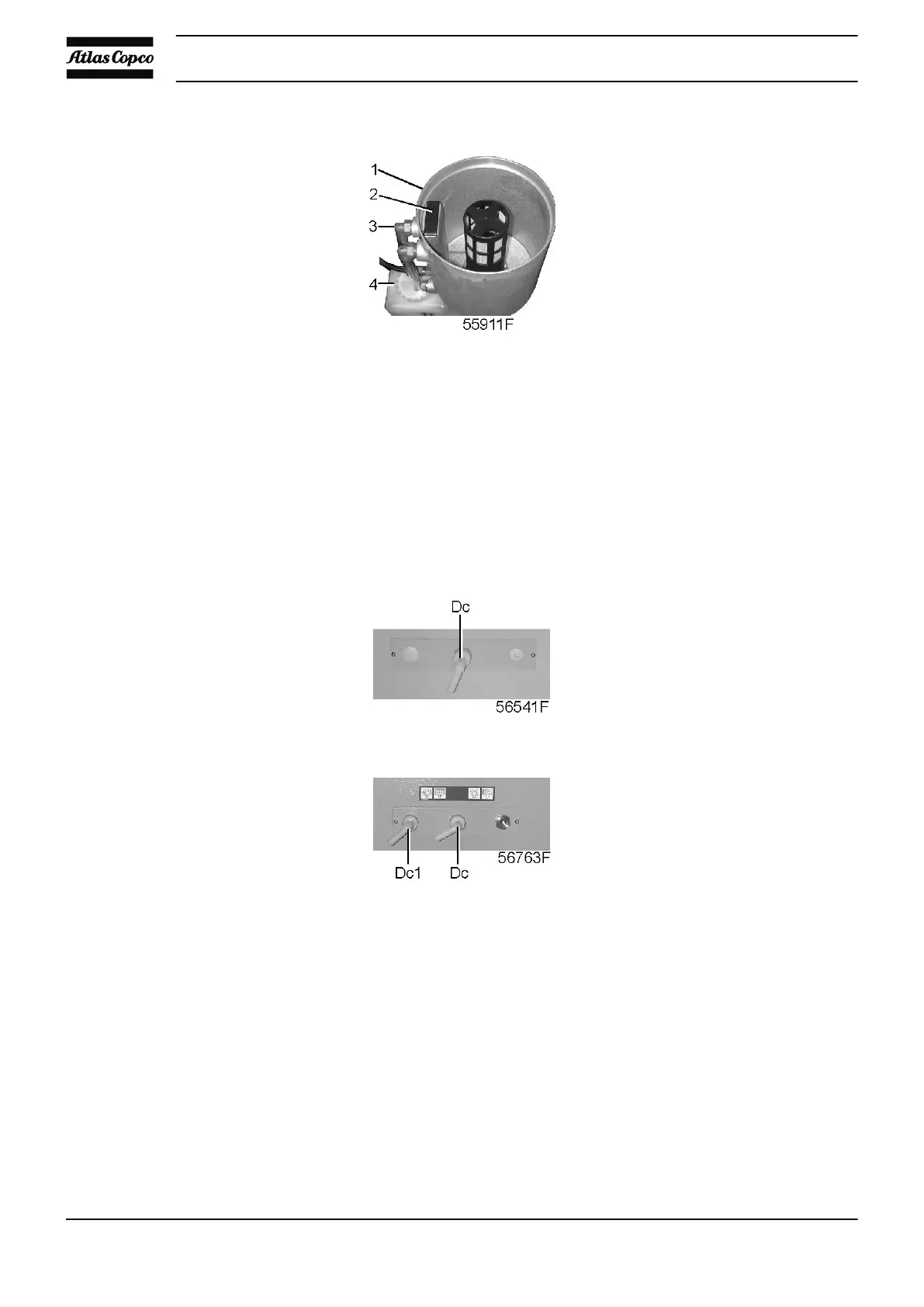

Inside of OSD
• Before starting, check that vessel (1) is filled. If necessary, gently pour water into filler pipe (2) until it
flows through tube (3). Reinstall the cover.
• During operation of the compressor, an oil layer is built up above the water level in vessel (1). Depending
on the capacity of the compressor and its operation cycle, the humidity of the inlet air and the oil content
of the compressed air, it may take several weeks or months before an oil level is observed in collector (4).
• Regularly check that vessel (1) is filled. If necessary, gently pour water into filler pipe (2) until it flows
through tube (3). Keep the cover installed.
Condensate drains
GA and GA VSD Workplace
GA Full-Feature and GA VSD Full-Feature
Maintenance instructions
Consult section OSD unit for the references.
Instruction book
60 2920 1634 04
