17
Instruction book
9096 3313 00

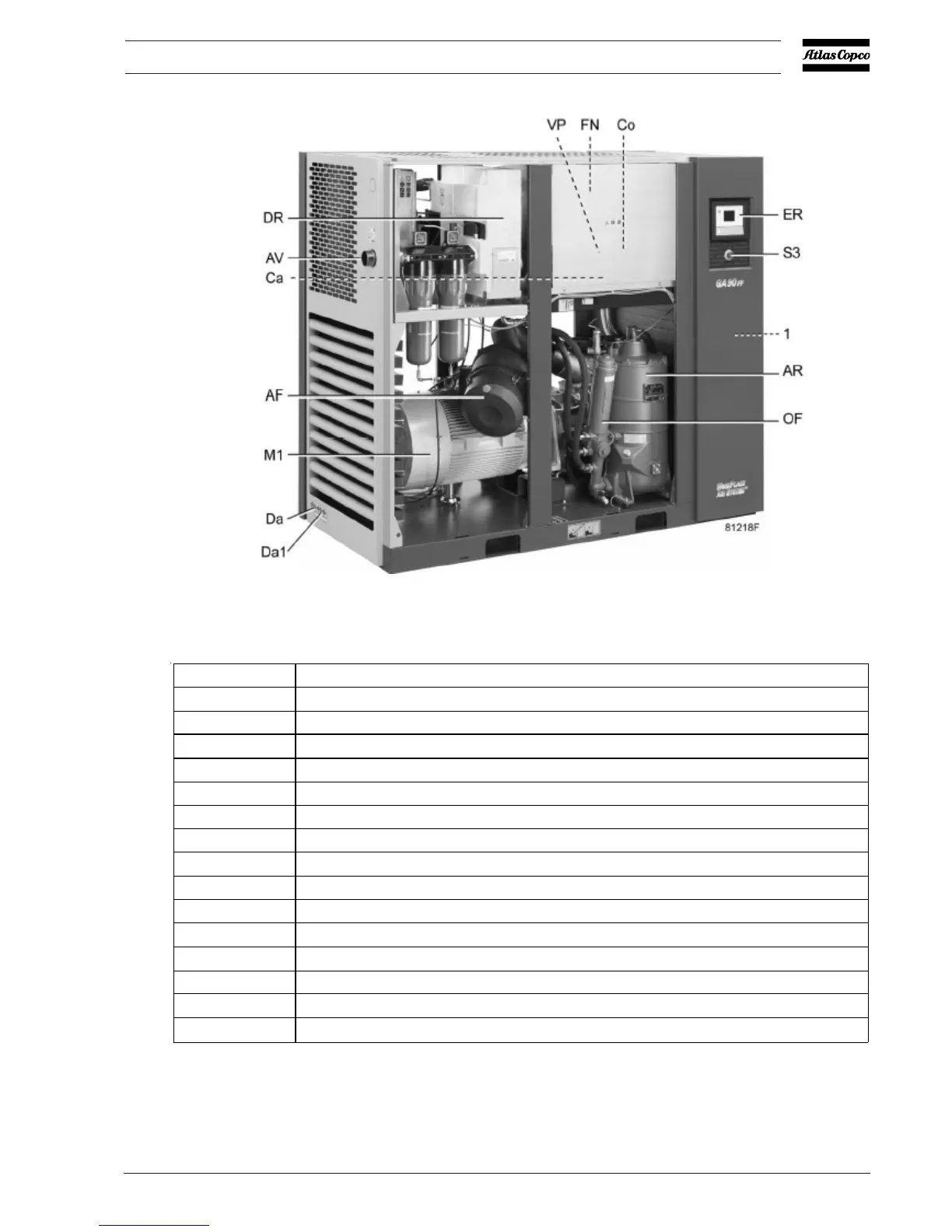

Front view, GA 55+ up to GA 90 Workplace Full-Feature
Reference Name
1 Electric cubicle
AF Air filter
AR Air receiver (oil separator vessel)
AV Air outlet valve
Ca Air cooler
Co Oil cooler
Da Automatic condensate outlet
Da1 Automatic condensate outlet, dryer
DR Dryer
ER Elektronikon® Graphic controller
FN Fan
M1 Compressor drive motor
VP Vent plug (oil cooler)
S3 Emergency stop button
OF Oil filter housing
