Instruction book
9096 3313 00

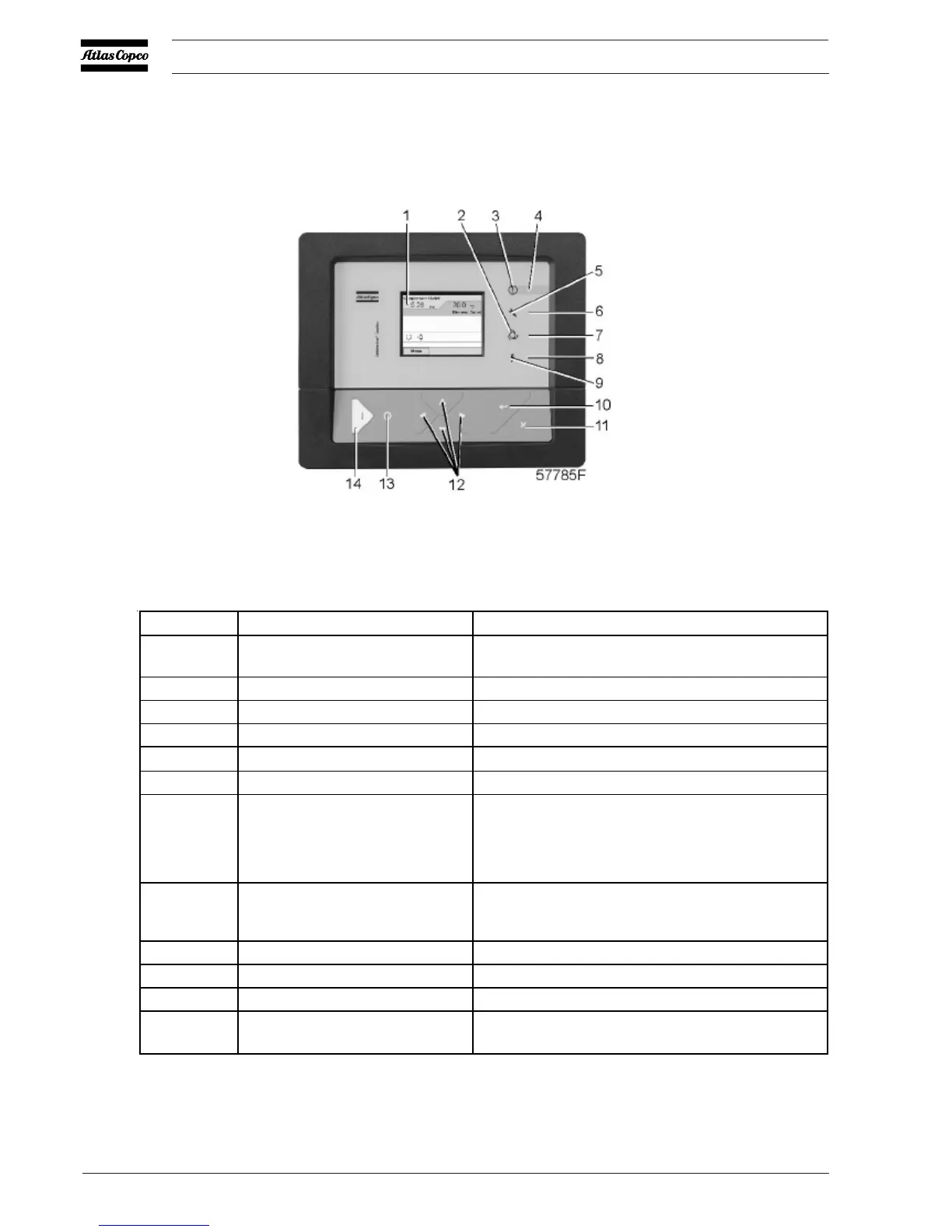

3.2 Control panel
Elektronikon regulator
Control panel
Parts and functions
Reference Designation Function
1 Display
Shows the compressor operating condition and a
number of icons to navigate through the menu.
2 Pictograph Automatic operation
3 Pictograph General alarm
4 General alarm LED Flashes if a shut-down warning condition exists.
5 Pictograph Service
6 Service LED Lights up if service is needed
7 Automatic operation LED
Indicates that the regulator is automatically controlling
the compressor.
8 Voltage on LED Indicates that the voltage is switched on.
9 Pictograph Voltage on
10 Enter key
Key to select the parameter indicated by the horizontal
arrow. Only the parameters followed by an arrow
pointing to the right can be modified.
11 Escape key To go to previous screen or to end the current action
12 Scroll keys Keys to scroll through the menu.
13 Stop button Button to stop the compressor. LED (7) goes out.
14 Start button
Button to start the compressor. LED (7) lights up
indicating that the Elektronikon regulator is operative.

Atlas Copco GA90 Specifications

General

Model	GA 90
Power	90 kW
Type	Rotary Screw Compressor
Max Working Pressure	13 bar
Cooling System	Air Cooled
Noise Level	72 dB(A)
