The compressors have an electronic water drain (EWD). The condensate from the air cooler accumulates
ina collector. When the condensate reaches a certain level, it is discharged through the automatic drain
outlet(Da).
On Full-Feature compressors, an additional electronic water drain (EWD1) is provided. The condensate
trapof the heat exchanger is drained by EWD1 and discharged through automatic drain outlet (Da1).
Also see section Air flow.

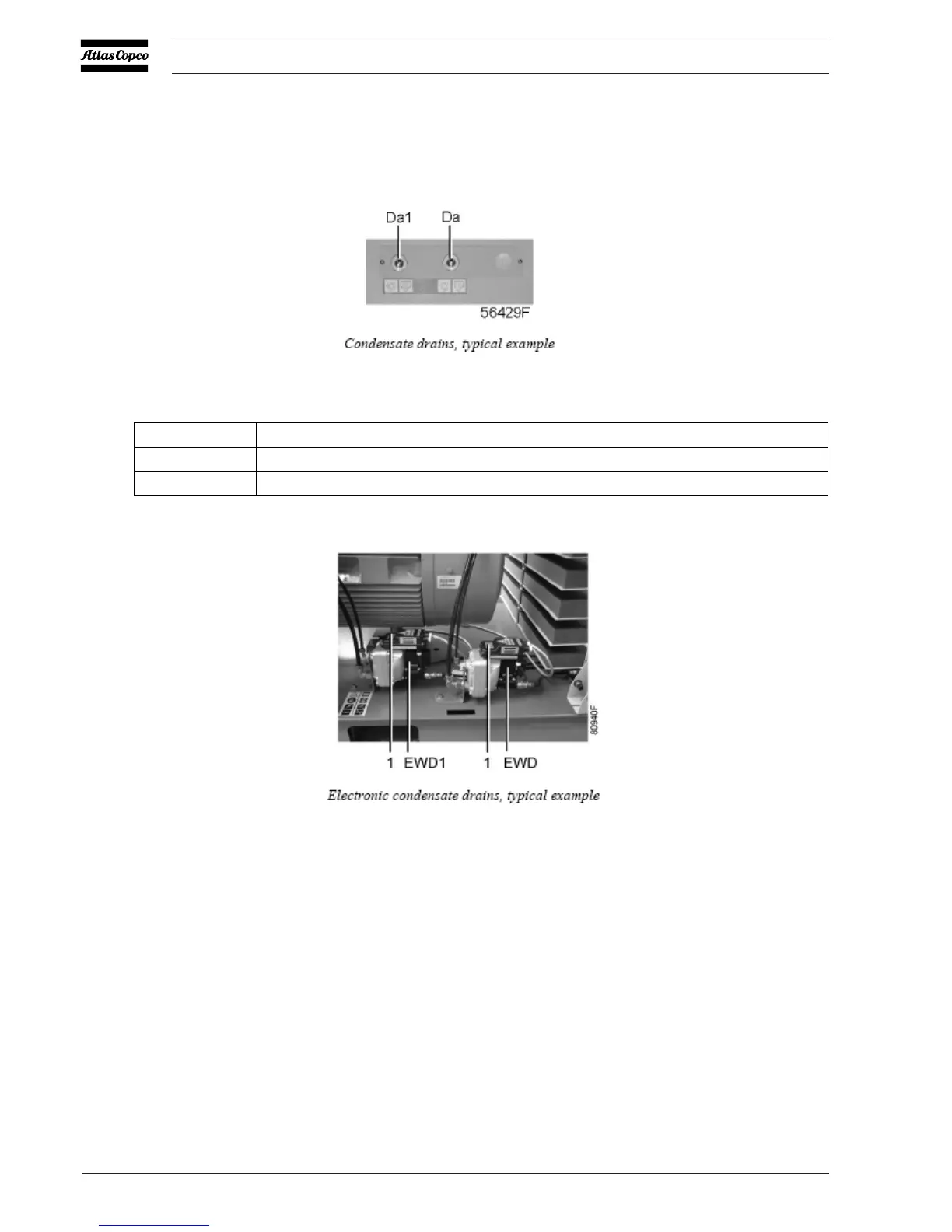

Testing the electronic water drain can be done by briefly pressing the test button (1) on top of the drain
2.5 Condensate system
Water drains
Reference Designation
Da Automatic drain connection
Da1 Automatic drain connection of the dryer (only on Full-Feature units)
