BV2 starts closing the bypass line and opening the oil supply line from the ER heat exchanger (HE) at the
lower limit of its temperature range. At the upper limit of its temperature range, the bypass line is completely
closed and all the oil flows through the ER heat exchanger.
On compressors versions with a maximum pressure lower than 13 bar, BV2 starts opening at 40 °C and is
completely open at 55 °C .
On compressors with a maximal pressure of 13 bar , BV2 starts opening at 60 °C and is completely open at 75
°C.

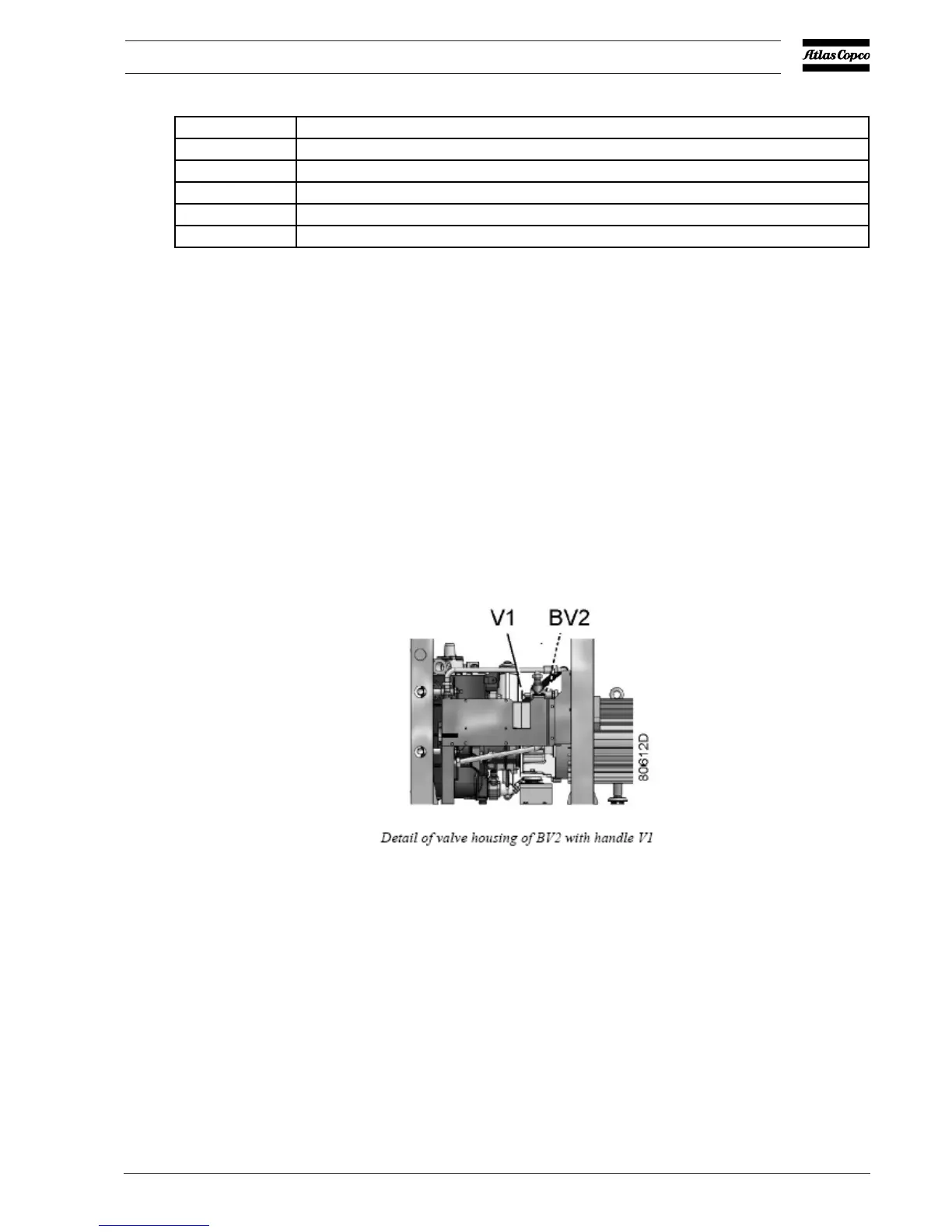

The housing of BV2 is provided with a special handle (V1), allowing to control the working of the energy
recovery system.
As can be seen on the ER label, the ER unit is integrated in the oil circuit and will recover energy when the
handle is completely turned in clockwise.
When the handle is turned out anticlockwise, the heat exchanger (HE) is bypassed and no energy will be
recovered.
Reference Designation
BV2 Thermostatic bypass valve of ER unit
HE Oil/water heat exchanger (ER unit)
E Compressor element
Co Oil cooler (compressor)
1 Water inlet

Atlas Copco GA90 Specifications

General

Model	GA 90
Power	90 kW
Type	Rotary Screw Compressor
Max Working Pressure	13 bar
Cooling System	Air Cooled
Noise Level	72 dB(A)
