System setup
9836 3043 01 17 (36)
The ST selector functions can be programmed in ToolsTalk by selecting the item “ST selector” in T472
Accessory.

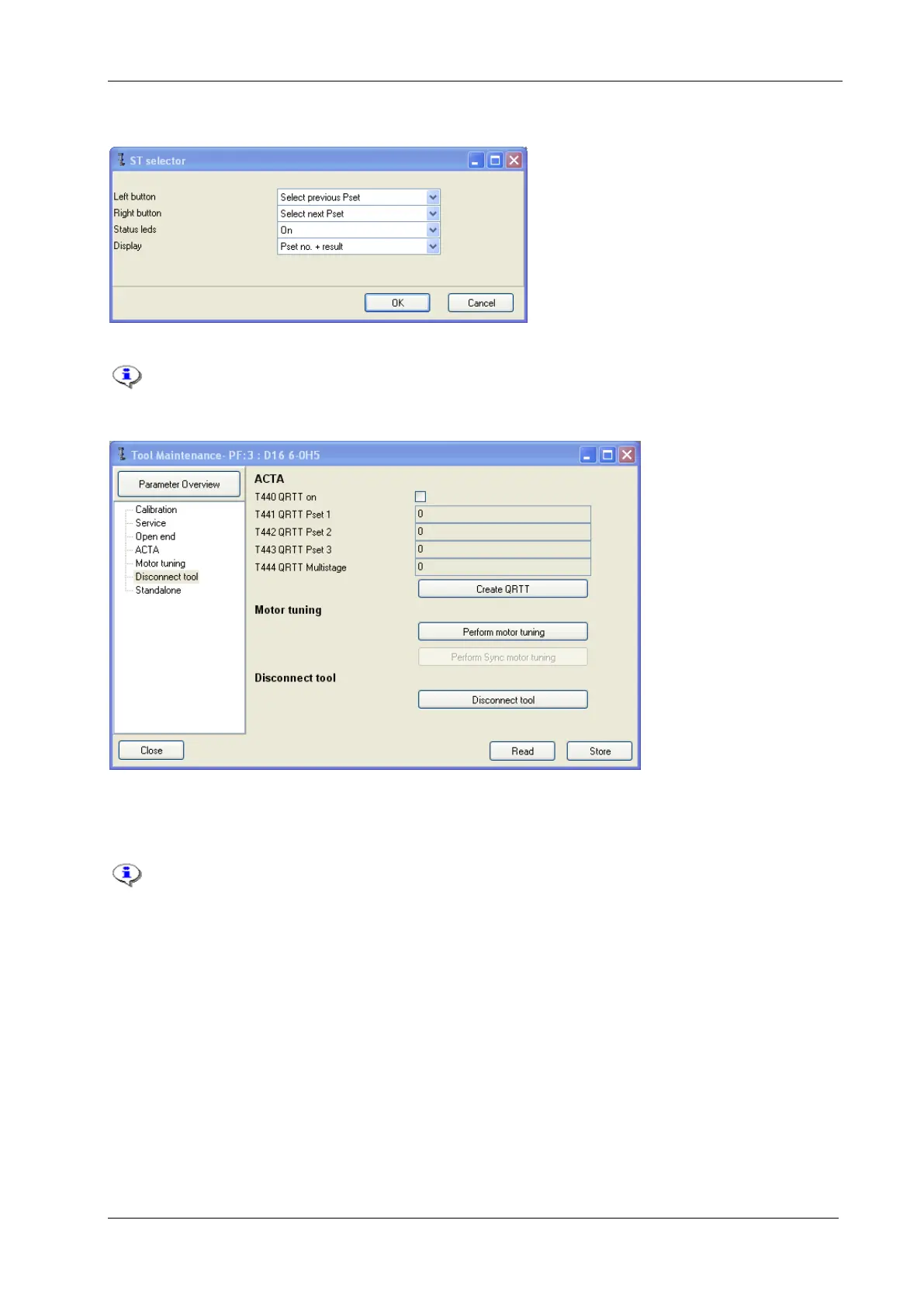

Figure 18 ST selector programming
Standalone mode is indicated by the flashing blue Connection LED on the tool. It will take
some time (up to 15 seconds) for this to occur.
7. To the left in the Tool Maintenance dialog box, click Disconnect tool.
8. To disconnect the tool, click Disconnect tool, and then click OK in the Disconnect tool dialog box.
Pair the tool to upload results and/or change standalone configuration.
If running in IRC-W infrastructure mode the tool will automatically reconnect to the Power
Focus when it is recycled.
NOTE: When reconnecting tool to controller: to upload the results after re-pairing the Pset Id:s used must
exist in the PF.
3.7.2 Setting ST-selector in stand-alone mode
If an ST selector is used, the ST selector must be pre-programmed to work in stand-alone mode. This is
done by following this procedure:
1. When powering up the STB tool, keep the left button on the selector is pressed in, and the
selector will enter the configuration mode. (Requirement : The Accessory Bus parameter
T210 Mode must be configured to ST Bus).
2. By pressing the right button it is then possible to toggle between the different available
modes. Ensure that mode 1 is chosen and stored by pressing the left button again.
3. If full functionality mode(Mode 2) is chosen the selector is now ready to be used, but if stand
alone mode (Mode 1) is chosen the operator must enter number of Psets that should be used.
Figure 19 Disconnect tool
