1310 3011 73 11
2.3 Main Parts
AR/OS
AFe
AFc
OFc
FC1
E
EP
G1
CP
PG
RV
SV
AV
F
OFe
FP
VLc

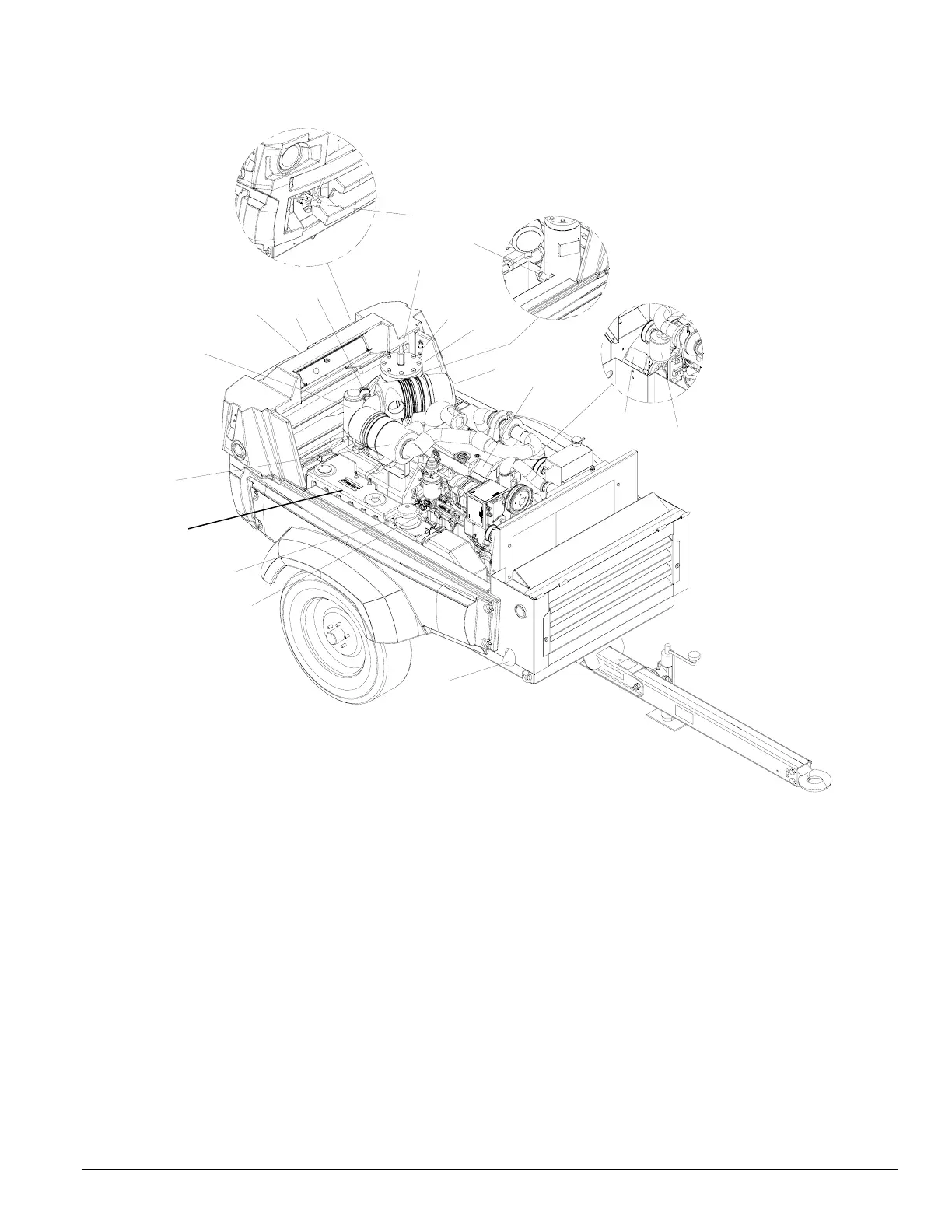

Fig 2.3 Main parts of XAS 185 JD
AFe Air Filter Engine
AFc Air Filter Compressor
AR Air Receiver
AV Air Outlet Valve
BDV Blow Down Valve
CE Compressor Element
CP Control Panel
CV Check Valve
DB Drive Belt
DP Drain Plug
Dse Dipstick Engine Oil Level
E Engine
EP Exhaust Pipe
F Cooling Fan
FC1 Fuel Filler Cap
FC2 Engine Oil Filler Cap
FFa Fuel Filter (Final)
FFb Fuel Filter (Primary)
FP Compressor Oil Filling Plug
FR Flow Restrictor
FT Fuel Tank
FU Fuel Pump Manual
G1 Alternator
LV Loading Valve
MPV Minimum Pressure Nozzle
M1 Starter Motor Engine
OC Oil Cooler
OFe Oil Filter Engine
OFc Oil Filter Compressor
OLG Oil Level Gauge
OS Oil Separator
PG Pressure Gauge
RV Regulating Valve
SL Scavenge Line
SR Speed Regulator
SV Safety Valve
TS Temperature Switch
UA Unloader Assembly
UV Unloader Valve
VH Vent Hole
VIe Vacuum Indicator Engine
VIc Vacuum Indicator Compressor
VV Vacuator Valve
FT
