Installation Steps
13
PV
-10PX / PV
-10HPX

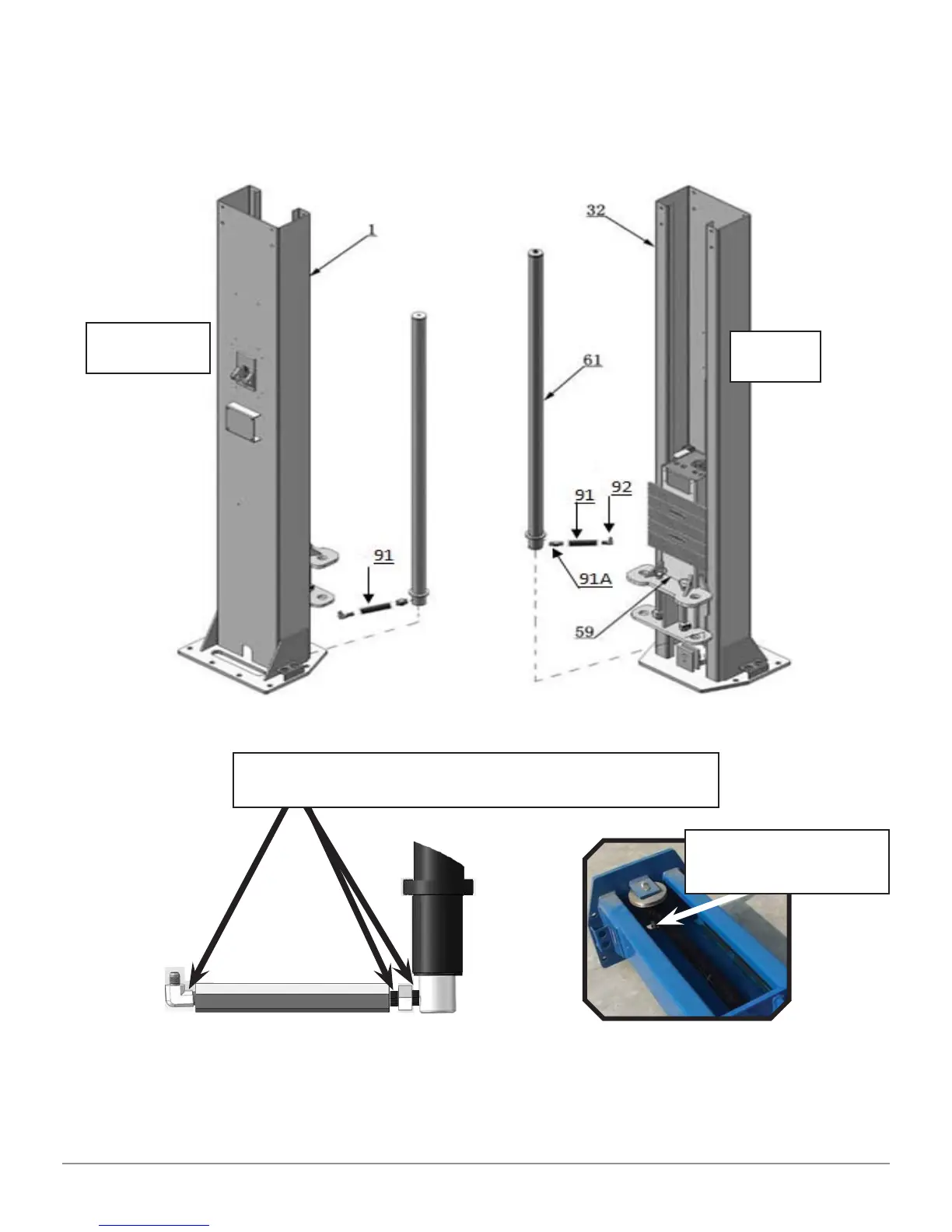

E. Install hydraulic cylinder
Connect the extended straight
fi
tting and 90°
fi
tting. Install the cylinders inside
the carriages
.
Fig. 16
Use T
e
fl
on tape to seal pipe threads.
Do not use te
fl
on tape on hydr
aulic hose ends.
P
ower Side
Column
Offside
Column
Fitting towards the
hole of the column
12
14
Table of Contents
Table of Contents
3
Clear-Floor Direct-Drive Model Features
4
Specifi Cations
4
Model PV-10PX/ PV-10HPX Specifications
5
Arm Swings View for Model PV-10PX & PV-10HPX
5
Tools Required
6
Installation Requirement
6
Concrete Specifications
7
Power Supply
7
Location of Installation
8
Check the Parts before Assembly
8
Installation Steps
8
Pv-10Px/Pv-10Hpx
11
Install Hydraulic Cylinder
13
Install Columns
14
For Model PV-10PX
14
Position Posts
18
Install Overhead Top Beam
19
Installation Steps PV-10PX / PV-10HPX
19
Installing the Limit Switch Control Bar and Limit Switch
21
Install Safety Device
22
Power Side Safety Device
22
Offside Safety Device
22
Install Cables
24
High Setting Cable Connection
24
Connecting Cable for High Setting
25
Low Setting Cable Connection
26
Install Power Unit
31
Install Oil Hose
32
Install Safety Cable
33
Install Hose Retainers on both Columns
34
Install Lifting Arms and Adjust the Arm Locks
35
Install Electrical System
36
TMC-18 Contactor
36
Installing Safety Interrupt Switch
36
Adjust the Equalizing Cables
37
Adjust Safety Cable
37
Bleeding Air
37
Test Run
37
Adjust the Lower Speed
38
Test with Load
38
Hydraulic System
38
To Lower Vehicle
39
To Lift Vehicle
39
Operation Instructions
39
Monthly
40
Every Six Months
40
Maintenance Schedule
40
Trouble Shooting
41
Exploded View
42
Cylinders
43
Atlas Power Unit 220V, 50/60HZ, Single Phase (with ETL Certifi Cate)
43
Atlas Hydraulic Power Unit
44
PV-10PX and PV-10HPX Parts List
45
Parts for Hydraulic Cylinder
48
Parts for Atlas Manual Power Unit, 220V/60Hz, 1 Phase
49
Warranty
50
