Installation Steps 24
PV-10PX / PV-10HPX
L. Install cables
For model PV-10PX
1. High setting cable connection. For a ceiling height over 3750mm (147
5/8”)
1.1 Remove the carriages’ plastic covers, the cable passes through from the
bottom of the carriages and is pulled out from the opening of carriages, then
install the two cable nuts.

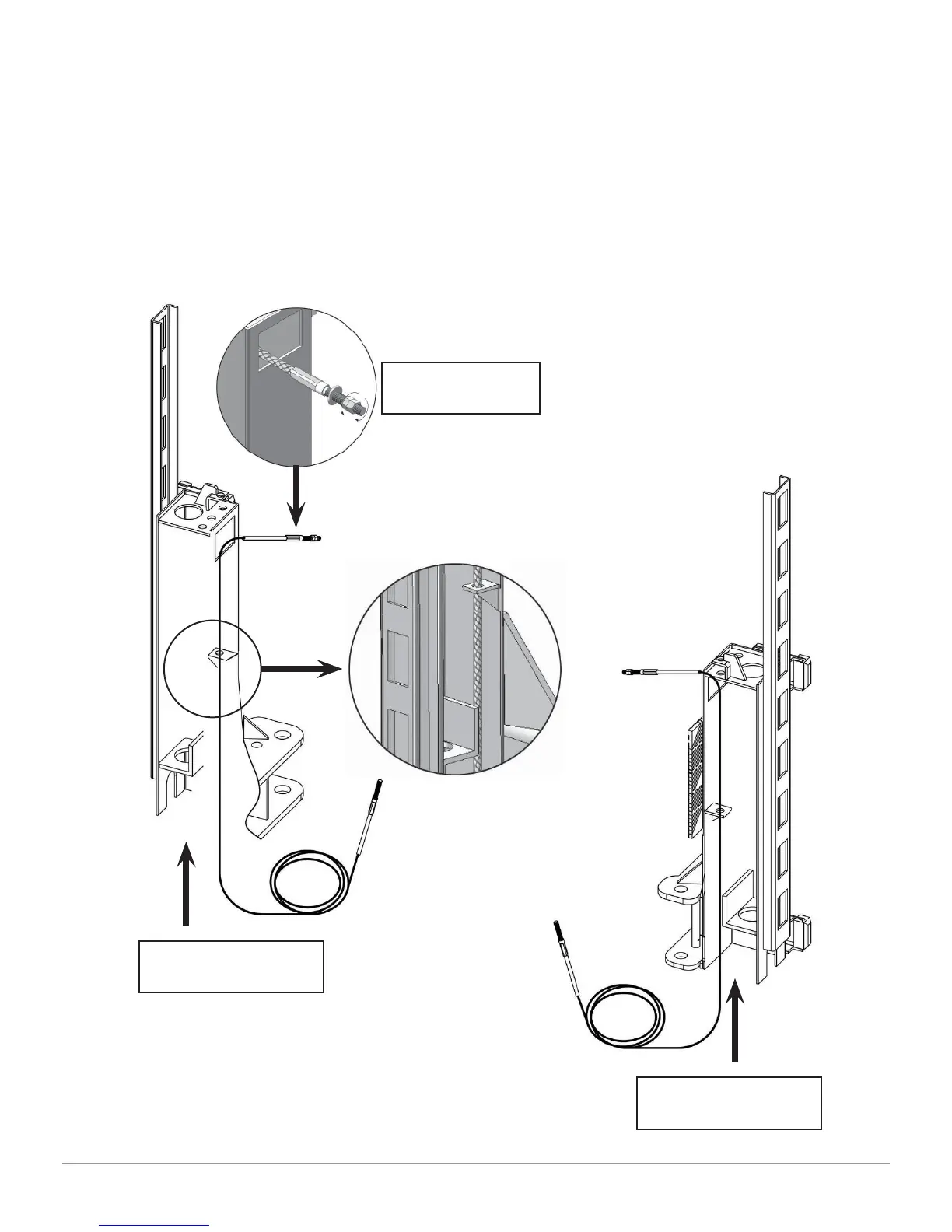

Fig. 29
Screw in the
two cable nuts
Cable connection
direction
Cable connection
direction
